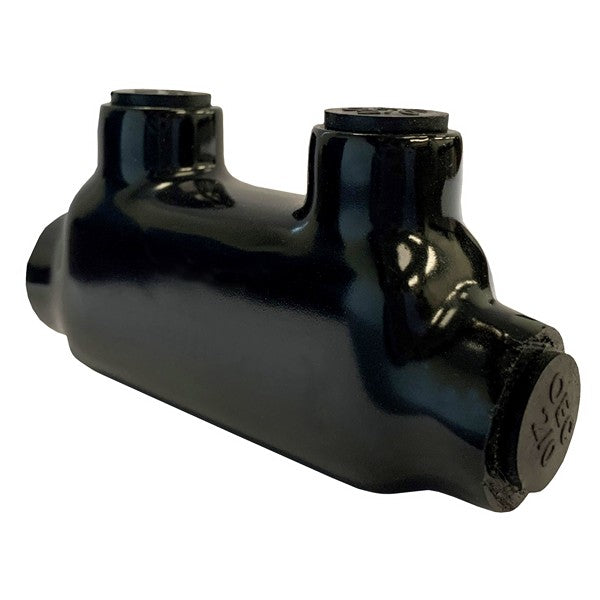

Morris 97022 Insulated In-Line Splice 350-6 Wire Range

Product Description

The Morris Products 97022 insulated in-line splice connector is designed for wire ranges between three hundred fifty and six. This connector has a rugged, high-dielectric rubber and vinyl coating that provides insulation for secure and lasting connections. Rated for six hundred volts, it uses 6061-T6 Aluminum CU9AL and is suitable for both copper and aluminum wires. The unit is pre-filled with an oxide inhibitor, which helps to prevent corrosion and degradation.

• Insulation is made from high-dielectric rubber and vinyl for durability.
• Allows easy re-entry for inspection and adjustments.
• Capable of operating within a temperature range from minus forty-nine to one hundred ninety-four degrees Fahrenheit.

Product Highlights

This splice connector is ideal for various electrical applications where reliable connections are essential.

Product Information

Standard Information

• Insulation Material: Vinyl
• Material: 6061-T6 Aluminum CU9AL Dual Rated

Technical Specifications

• Maximum Voltage: 600 Volts
• Temperature Range: -49 to 194 Degrees F (-45 to 90 Degrees C)
• Wire Range: 350-6
• Wire Type: Copper and/or Aluminum
• Standards: ANSI C119.4 & cULus 486b Listed
• Cable Rating: Rated for Use with 194°F (90°C) Cables
• Use: Indoor Use Only
• Insulation Type: Rubber
