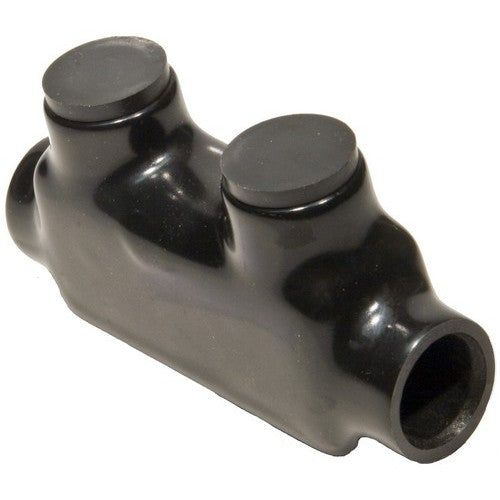

Morris 97021 Insulated In-Line Splice Wire Range 250 - 6

Product Description

The Morris 97021 Insulated In-Line Splice is designed for electrical connections with copper or aluminum wires. This product features construction from 6061-T6 aluminum, ensuring durability and reliability. The in-line splice is pre-filled with an oxide inhibitor and has a robust rubber and vinyl coating that is resistant to dielectric breakdown. It is intended for indoor use and offers easy access for maintenance.

• Dual rated for copper and aluminum wires
• Includes oxide inhibitor for enhanced performance
• Indoor usage with rugged insulation

Product Highlights

The Morris insulated splice simplifies electrical work by providing reliable connections and easy re-entry for inspections.

Product Information

Standard Information

• Brand: Morris
• MPN: 97021

Technical Specifications

• Material: 6061-T6 aluminum, CU9AL Dual Rated
• Wire Compatibility: Copper and/or aluminum wires
• Insulation: High-dielectric rubber/vinyl coating
• Voltage Rating: 600 volts
• Temperature Range: Minus forty degrees Fahrenheit to one hundred ninety-four degrees Fahrenheit
• Standards: ANSI C119.4 & cULus 486b Listed
• Usage: Indoor use only
• Connector Type: In-line splice
• Number of Ports: Two
• Allen Type: 1/4 hex
• Oxide Inhibitor: Yes, pre-filled
• Input Wire Range: Two hundred fifty MCM to number six
