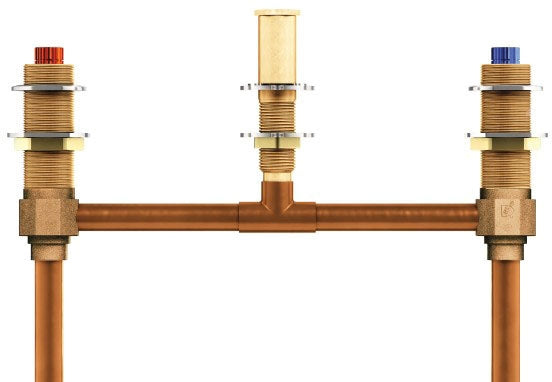

Moen 4796 Two Handle Roman Tub Valve 10 Inch Center 1/2 CC Connection

Product Description

The Moen 4796 is a two-handle roman tub valve designed for rough-in installations. It features a ten-inch center with a half-inch CC connection. The valve is built on the Moen M-PACT common valve system, allowing easy updates to your faucet style without replacing plumbing.

• Two-handle design for precise temperature control.
• Test plug and non-adjustable spout shank included.
• Suitable for three-hole installations with a flow rate of sixteen gallons per minute at 45 PSI.

Product Highlights

This valve is durable and made of metal, ensuring a long-lasting performance. It meets ASME A112.18.1/CSA B125.1 standards.

Product Information

Standard Information

• Brand: Moen
• MPN: 4796

Technical Specifications

• Inlet Size: 1/2 Inch
• Outlet Connection: 1/2 Inch CC
• Flow Rate: 16 GPM at 45 PSI
• Number of Handles: 2
• Valve Material: Metal
• Handle Material: Metal
• Deck Thickness: 1/8 to 3-3/16 Inch
• Used On Model/Brand: Weymouth, Arris, Waterhill, Rothbury
