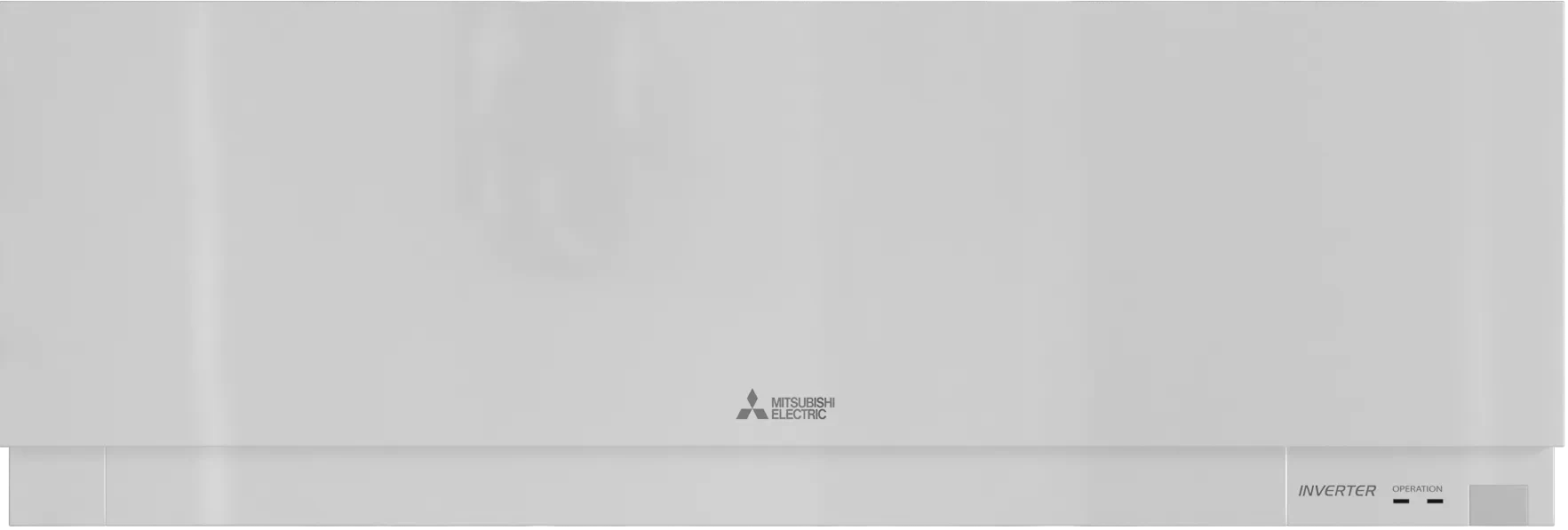

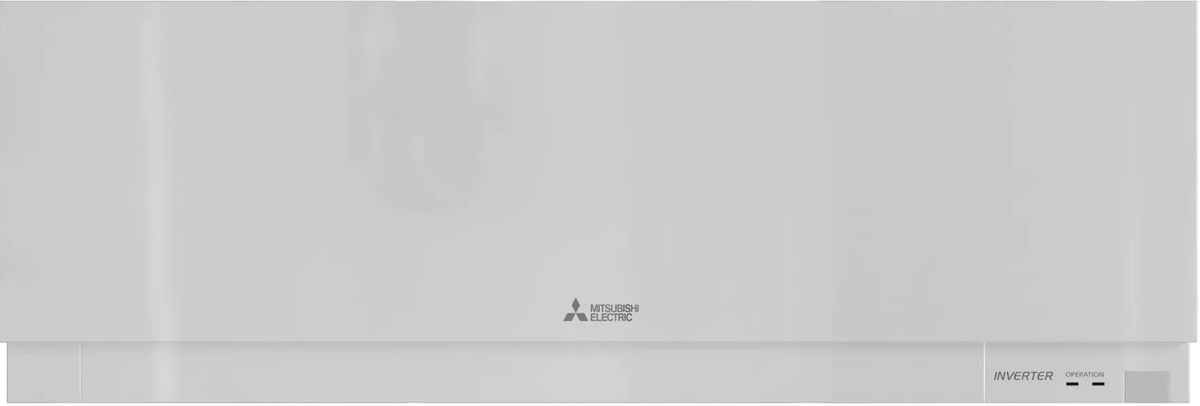

Mitsubishi MSZ-EF15NAS-U1 Indoor Unit 14 MBH Wall Mount HP Multi-Zone 230/1 Silver Designer EF Model M-Series

Product Description

The Mitsubishi MSZ-EF15NAS-U1 is an indoor unit designed for use in multi-zone heat pump systems. This model offers a cooling capacity of fourteen MBH, suitable for residential applications. The unit operates on a voltage of 208/230V and is engineered to work efficiently with R410A refrigerant. It is ideal for installation in homes that require effective climate control.

• Installation type: Wall-mounted
• Heat Pump application
• Dimensions: Eleven and three fourths inches by thirty-four and thirteen sixteenths inches by seven and eleven sixteenths inches

Product Highlights

The MSZ-EF15NAS-U1 is part of the M-Series from Mitsubishi, known for effective heating and cooling capabilities.

Product Information

Standard Information

• Application: Heat Pump
• Series-Brand: M-Series

Technical Specifications

• MPN: MSZ-EF15NAS-U1
• Type: Heat Pumps
• Phase: Single
• Voltage: 208/230V
• Frequency: 60 Hz
• Dimensions: 11-3/4 x 34-13/16 x 7-11/16 inches
• Refrigerant: R410A
• Liquid Line Size: 1/4 inches
• Suction Line Size: 3/8 inches
