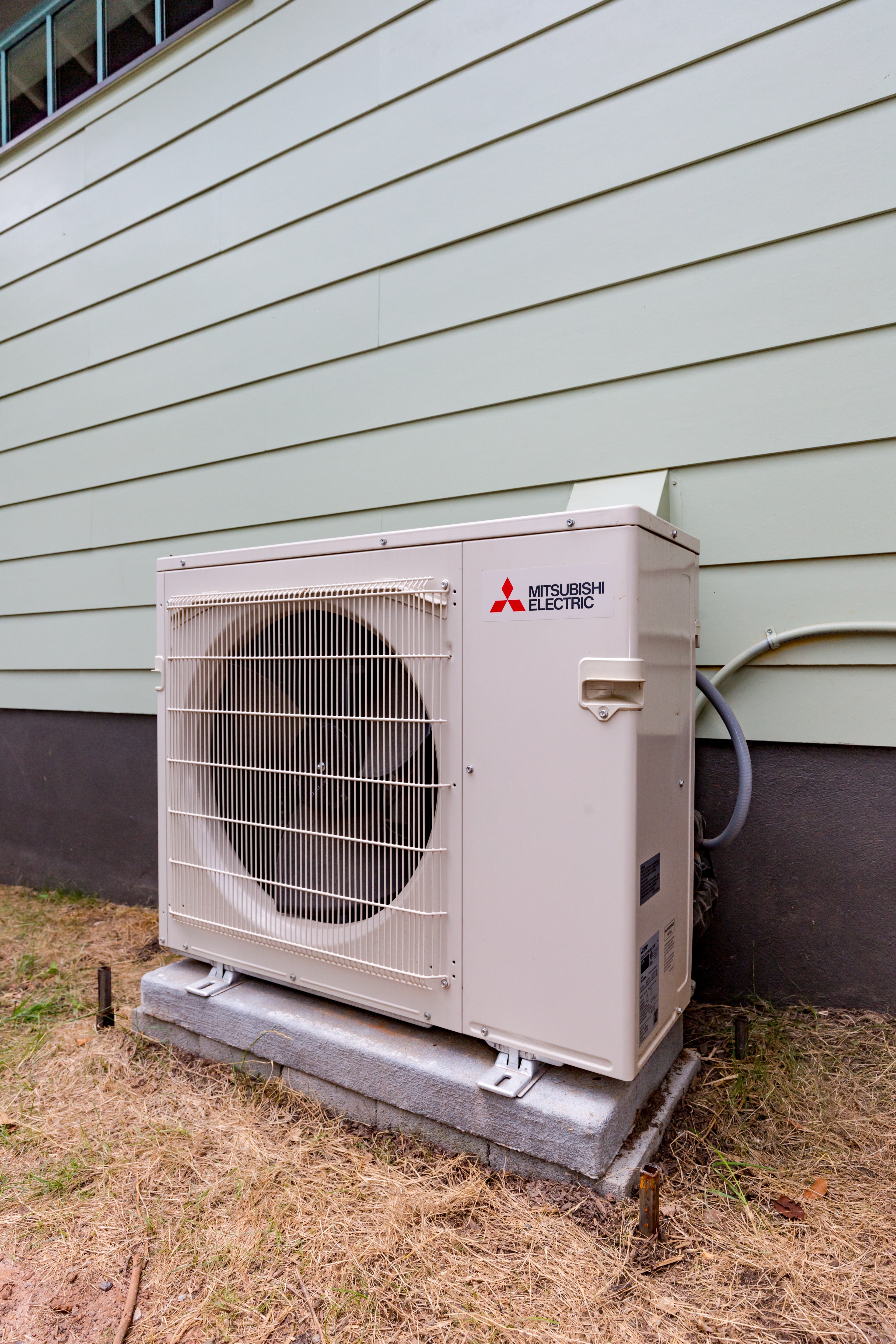

Mitsubishi Electric MXZ-3D24NL 24,000 BTU 3-Zone Outdoor Heat Pump

Product Description

The Mitsubishi Electric MXZ-3D24NL is a 24,000 BTU outdoor heat pump designed for multi-zone applications. This unit supports multiple indoor connections, allowing for efficient temperature control in up to three zones. It operates in both cooling and heating modes and employs R454B refrigerant for environmental safety.

• Connects to various indoor unit types.
• Operates in cooling and heating modes.
• Designed for three-zone capabilities.

Product Highlights

This heat pump offers a twin rotary compressor for enhanced efficiency, along with Blue Fin anti-corrosion treatment for better coil protection. Its variable speed inverter-driven compressor ensures smooth operation throughout various temperature conditions.

Product Information

Standard Information

• Unit Type: 2-Ton Inverter Condenser Heat Pump
• Product Line: M-Series

Technical Specifications

• Operating Mode: Cooling & Heating
• Number of Zones: 3
• Unit Capacity: 24,000 BTU
• Refrigerant Type: R-454B
• Cooling Capacity: 22,000 BTU/hr
• Heating Capacity: 30,600 BTU/hr
• SEER Rating: 20
• EER Rating: 13.7
• HSPF Rating: 10
• Cooling Minimum Temperature: 14 F
• Heating Minimum Temperature: 5 F
• Amperage Rating: 28.7 A
• Color: Ivory
• Compressor Type: Twin Rotary
• Cooling Sound Level: 51 dBA
• Heating Sound Level: 55 dBA
• Liquid Line Size: 1/4 in
• Overall Height: 31-11/32 in
• Overall Length: 13 in
• Overall Width: 37-11/32 in
• Voltage Rating: 208/230 V
