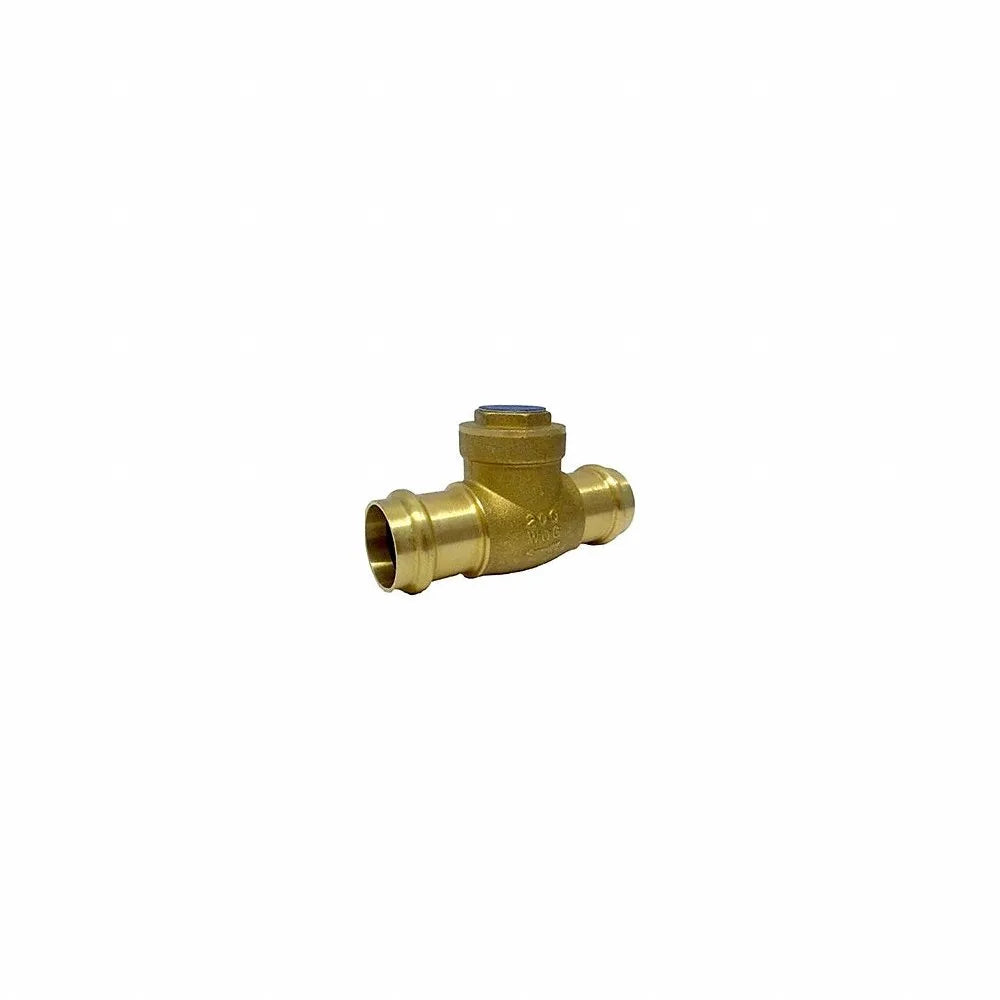

Milwaukee UP0969000112 Valve Ultra Pure 1-1/2 Inch Press Horizontal Swing Check Valve

Product Description

The Milwaukee Valve Ultra Pure UP0969000112 is a horizontal swing check valve meant for use with potable water. Constructed from brass, this valve features EPDM soft goods, suitable for a variety of applications.

• Nominal size: 1-1/2 inches
• Maximum pressure: 200 psi
• Temperature range: -20°F to 250°F

Product Highlights

This valve is ideal for inline installation and press connection types, ensuring a secure and reliable operation in water systems.

Product Information

Standard Information

• Brand: Milwaukee
• MPN: UP0969000112

Technical Specifications

• Series: UP969
• Type: Horizontal
• Body Material: Brass
• Trim Material: Brass
• Softgoods Material: EPDM
• Inlet to Outlet Length: 6.13 inches
• Top to Inlet Center: 2.28 inches
• End Style: Press
• Media: Water
• Pressure Rating: 200 psi
• Temperature Rating: 250°F
• Low Lead Compliance: Yes
• Application: Potable Water
• Check Mechanism: Swing
• Connection Size - Side 1: 1-1/2 inches
• Connection Size - Side 2: 1-1/2 inches
• Cracking Pressure: 0.5 psi
• Flow Rate: 76 GPM
• Overall Length: 6.13 inches
• Pipe Size: 1-1/2 inches
• Seal Material: Brass
• Seat Material: Brass
• Silent Check: Standard
• Standards: NSF/ANSI 372
• Mounting Orientation: Horizontal
