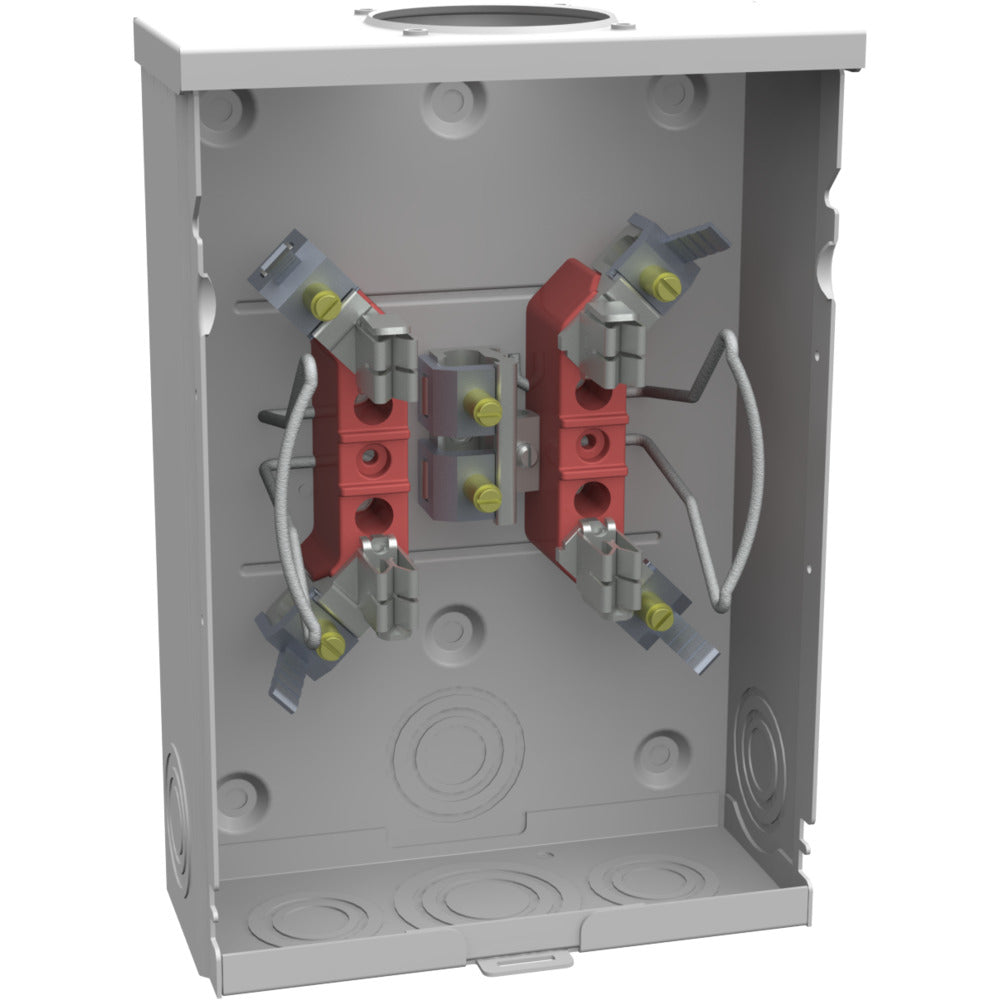

Milbank U7487-RL-TG-KK 4 Term, Ringless, Small Hub Opening, Triplex Ground, Horn Bypass, 125 Amp

Product Description

The Milbank U7487-RL-TG-KK is a ringless meter socket rated for 125 Amps and 600 Volts AC. This product features a four terminal connection making it suitable for various metering applications.

• 125 Amp rating with UL listing
• Constructed from G90 galvanized steel with a powder-coated finish
• Designed for overhead or underground cable entry

Product Highlights

The Milbank U7487-RL-TG-KK offers durability and reliability for electrical distribution. Its compact design occupies minimal space and allows for efficient installations in various environments.

Product Information

Standard Information

• Brand: Milbank
• MPN: U7487-RL-TG-KK

Technical Specifications

• Voltage Rating: 600 Volts AC
• Amperage Rating: 125 Amps
• Frequency Rating: 60 Hertz
• Dimensions: 3.313 inches Length x 8 inches Width x 11.5 inches Height
• Material: G90 Galvanized Steel
• Enclosure: NEMA 3R
• Number of Jaws: 4 Terminal
• Bypass Type: Horn
• Cable Entry: Overhead or Underground
• Knockouts: Concentric knockouts of various sizes
• Insulation: Glass Polyester
• Country of Origin: United States
