Product Description

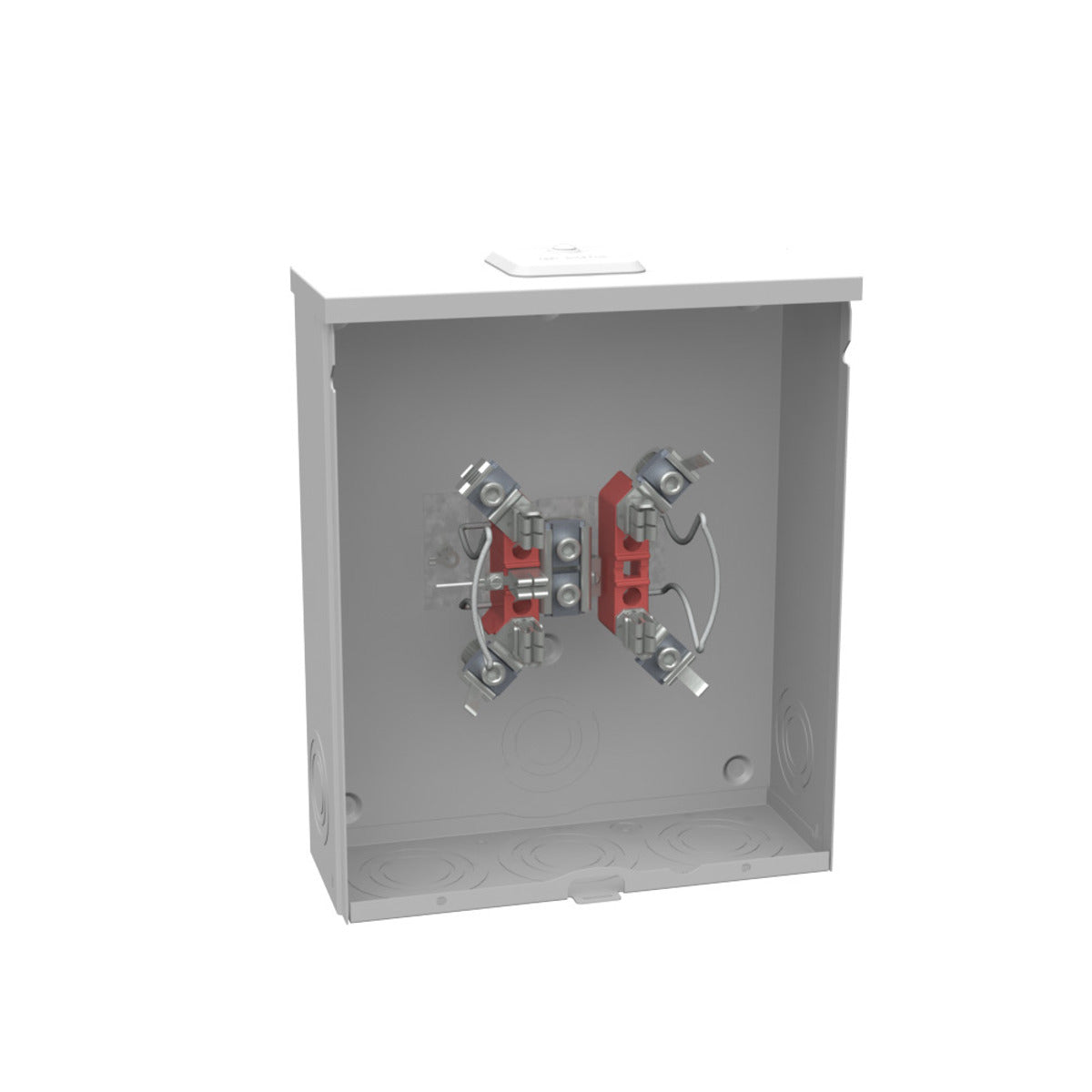

The Milbank U7043-XL-TG-KK-IL-5T9W is a ringless meter socket designed for use in overhead or underground service applications. This socket supports a voltage rating of six hundred volts and an amperage rating of two hundred. The NEMA three R enclosure provides protection against dust and water, making it suitable for outdoor installations.
- Ringless design with horn bypass.
- Five terminal jaws for secure connections.
- Surface mount installation capability.
Product Highlights
This meter socket features a small closing plate and triplex ground for added safety. It accommodates wire sizes from six AWG to three hundred fifty kcmil. The G90 galvanized steel construction ensures durability and longevity.
Product Information
Standard Information
-
Brand: Milbank
-
Manufacturer Part No: U7043-XL-TG-KK-IL-5T9W
Technical Specifications
-
Voltage Rating: 600 VAC
-
Amperage Rating: 200 A
-
Frequency Rating: 60 Hz
-
Dimensions: 4.84 inches Length x 13 inches Width x 15.5 inches Height
-
Wire Size: 6 AWG - 350 kcmil
-
Insulation: Glass Polyester
-
Enclosure Type: NEMA 3R
-
Mounting Type: Surface Mount
