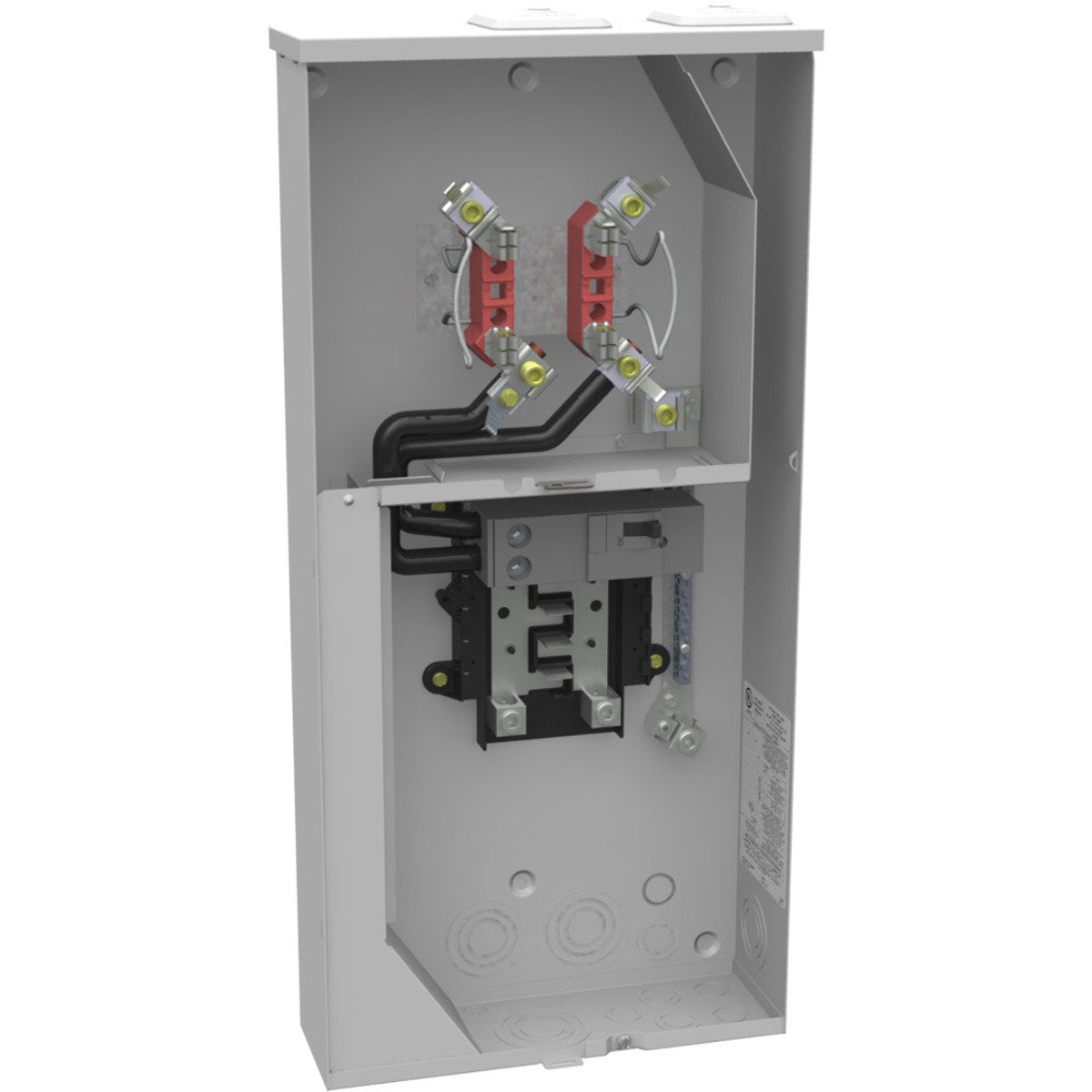

Milbank U5168-XTL-200-KK Ringless Meter Socket With Main And Load Center, 200 Amp, NEMA 3R

Product Description

The Milbank U5168-XTL-200-KK is a ringless meter socket designed for both main and load center applications. It supports a voltage rating of 240 VAC and an amperage rating of 200. This model features a horn bypass and includes four terminal jaws, making it suitable for a variety of installations.

• Ringless design for simplified installation
• Capacity for 200 Amp main breaker cutoff
• Meets NEMA 3R standards for outdoor use

Product Highlights

The Milbank U5168-XTL-200-KK is engineered for durability and reliability in outdoor installations while ensuring compliance with applicable codes.

Product Information

Standard Information

• Brand: Milbank Manufacturing
• Part No: U5168-XTL-200-KK

Technical Specifications

• Amperage Rating: 200 A
• Voltage Rating: 240 VAC
• Phase: 1
• Feed Type: Overhead/Underground
• Dimensions: 30 inches H x 14.125 inches W x 4.5 inches D
• Enclosure Type: NEMA 3R
• Material: G90 Galvanized Steel with Powder Coat Finish
• Insulation: Glass Polyester
• Frequency Rating: 60 Hertz
• Number of Jaws: 4
• Cutout Size: 1 Main Breaker at 200 Amperes
• Ground Bar: Yes
