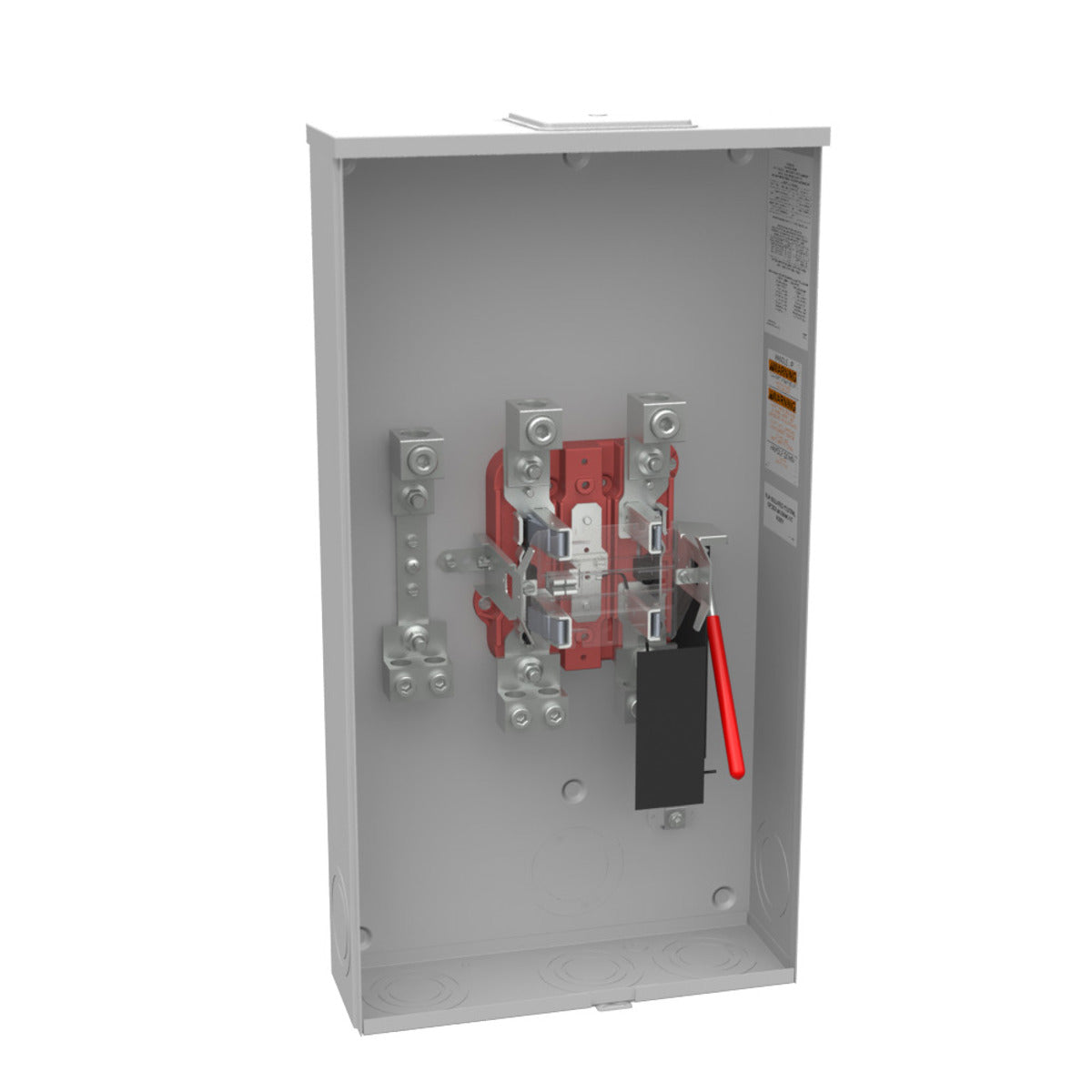

Milbank U4702-X-5T9-K3-K2-IL Ringless Meter Socket, 600 VAC, 320 A, 1 Phase, NEMA 3R

Product Description

The Milbank U4702-X-5T9-K3-K2-IL is a ringless meter socket designed for use in overhead and underground applications. It operates at 600 VAC and supports a continuous amperage of 320. This socket features a large closing plate hub opening and lever bypass for convenience.

• 5 terminal jaws for secure connection
• UL listed for safety
• NEMA 3R enclosure for outdoor use

Product Highlights

This product is reliable for residential and commercial metering applications, providing safety and efficiency in electrical installations.

Product Information

Standard Information

• Brand: Milbank
• Manufacturer Part No: U4702-X-5T9-K3-K2-IL

Technical Specifications

• Voltage Rating: 600 VAC
• Amperage Rating: 320 A
• Frequency Rating: 60 Hz
• Enclosure Type: NEMA 3R
• Wire Size: 4 AWG to 600 kcmil
• Dimensions: 4.844 inches length x 15 inches width x 28.25 inches height
• Material: G90 Galvanized Steel with Powder Coat Finish
• Insulation: Glass Polyester
