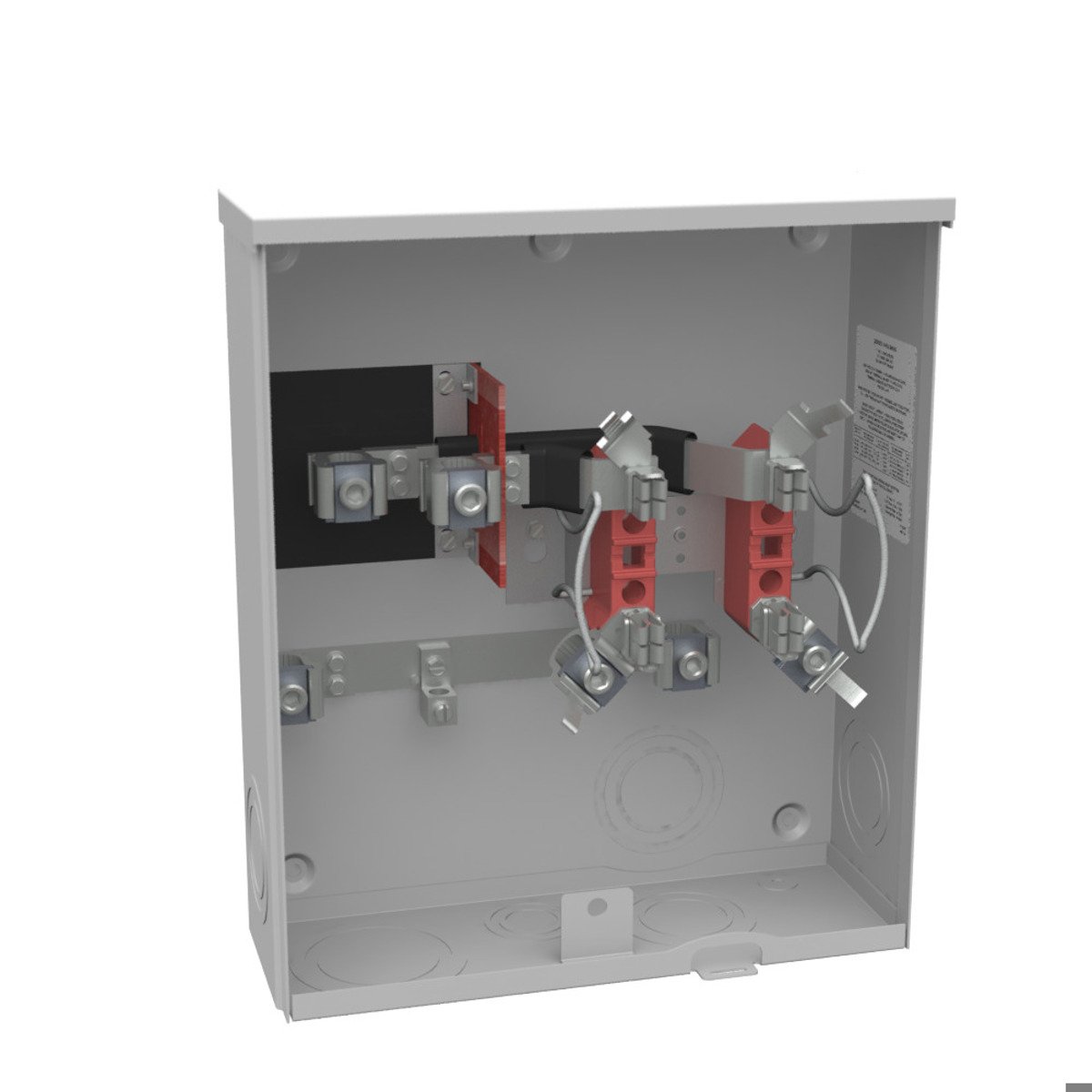

Milbank U1980-O-KK-BLG 4 Term Ringless Plain Top Horn Bypass 7-8 Inch Barrel Lock Ground with Bracket Provision

Product Description

The Milbank U1980-O-KK-BLG is a four terminal, ringless meter socket designed for efficient power management. This model includes a plain top and a horn bypass feature suitable for a variety of applications.

• 200 ampere rating to support high current applications.
• UL Listed with Type 3R standard for outdoor installation.
• Made from G90 galvanized steel with a powder coat finish for durability.

Product Highlights

This product is ideal for residential and commercial installations, providing reliable meter access and protection.

Product Information

Standard Information

• Brand: Milbank
• Manufacturer: Milbank

Technical Specifications

• Catalog Number: U1980-O-KK-BLG
• Application: Meter Socket
• Amperage Rating: 200
• Voltage Rating: 600 Volts Alternating Current
• Frequency Rating: 60 Hertz
• Size: 4.5L x 13W x 15.25H inches
• Material: G90 Galvanized Steel With Powder Coat Finish
• Mounting: Surface Mount
• Cable Entry: Underground with Side Wireway
• Insulation: Glass Polyester
• Bypass Provision: Horn Bypass
• Number of Jaws: 4 Terminal
• Phase: 1
• Standard: UL Listed; Type 3R
• Country of Origin: United States
