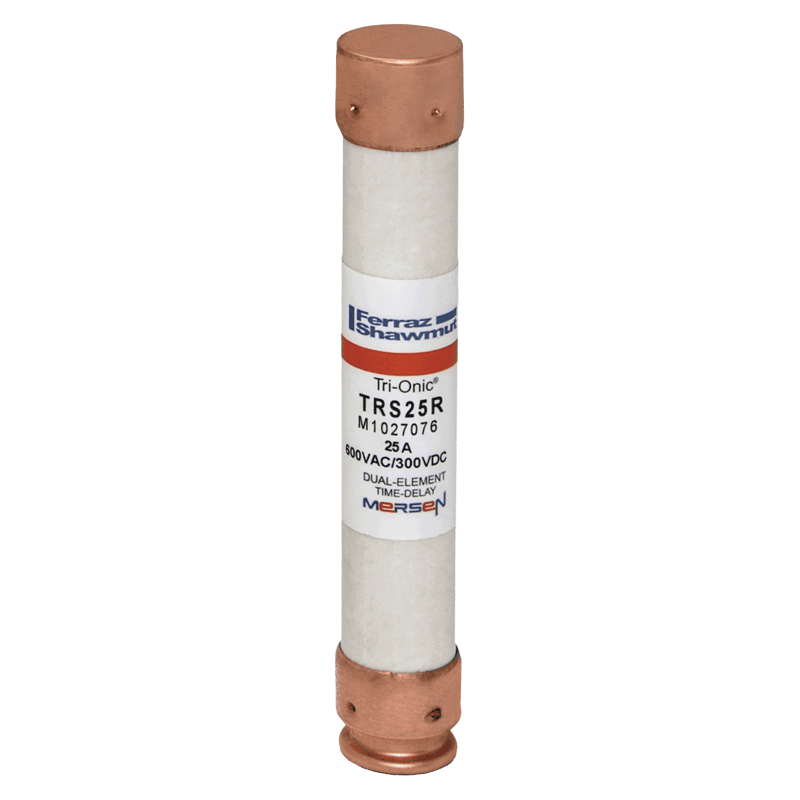

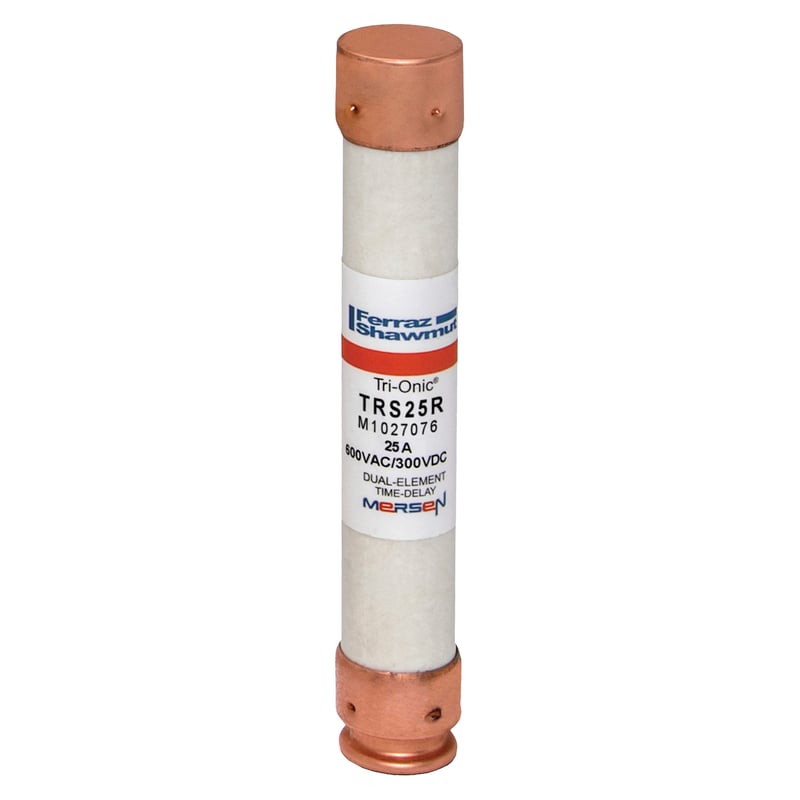

Mersen TRS25R 600V 25A 5X13/16 TD FUSE

Product Description

The Mersen TRS25R is a 600 volt, 25 amp, time-delay fuse designed primarily for overcurrent protection. This fuse is suitable for motor circuits, transformers, service entrance equipment, feeders, and branch circuits. Its time-delay characteristics ensure that harmless starting currents and inrush currents do not cause nuisance tripping.

• Amperage rating of twenty-five amperes.
• Rated for both AC and DC applications, with interruptions of two hundred and twenty-five kiloamperes.
• Rejection style design for preventing replacement errors.

Product Highlights

The TRS25R fuse features a cylindrical body and is durable enough for harsh industrial environments. It is UL and CSA certified, ensuring compliance with industry standards.

Product Information

Standard Information

• Type: Time Delay
• Manufacturer: Mersen

Technical Specifications

• Voltage Rating: 600 VAC / 300 VDC
• Body Size: 13/16 in Diameter x 5 in Length
• Interrupt Rating: 200/20 kA
• Mounting Type: Ferrule
• Material: Polyester
• Class: RK5
• Element: Dual
• Approval Standards: UL 248-12, CSA C22.2 No. 248.12
