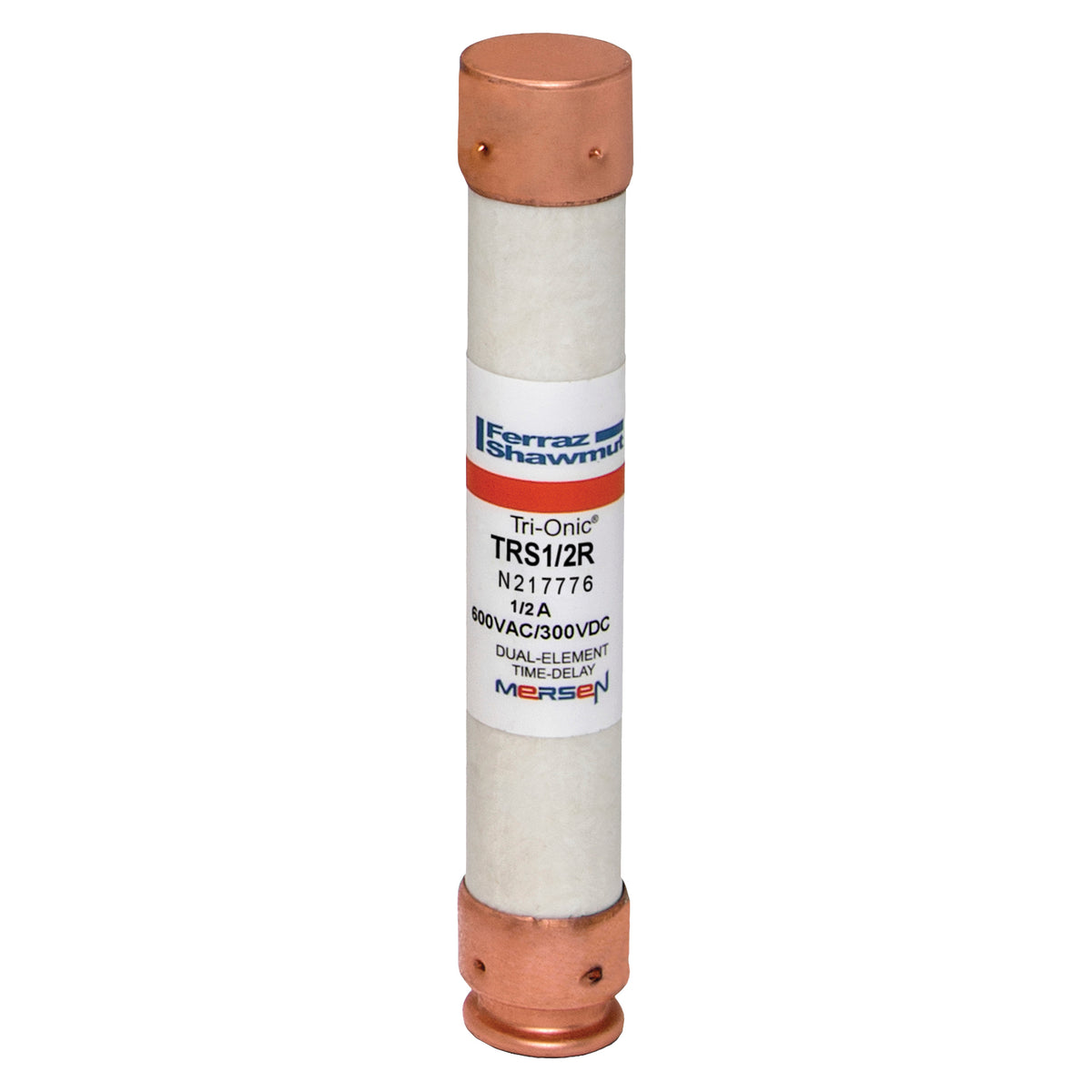

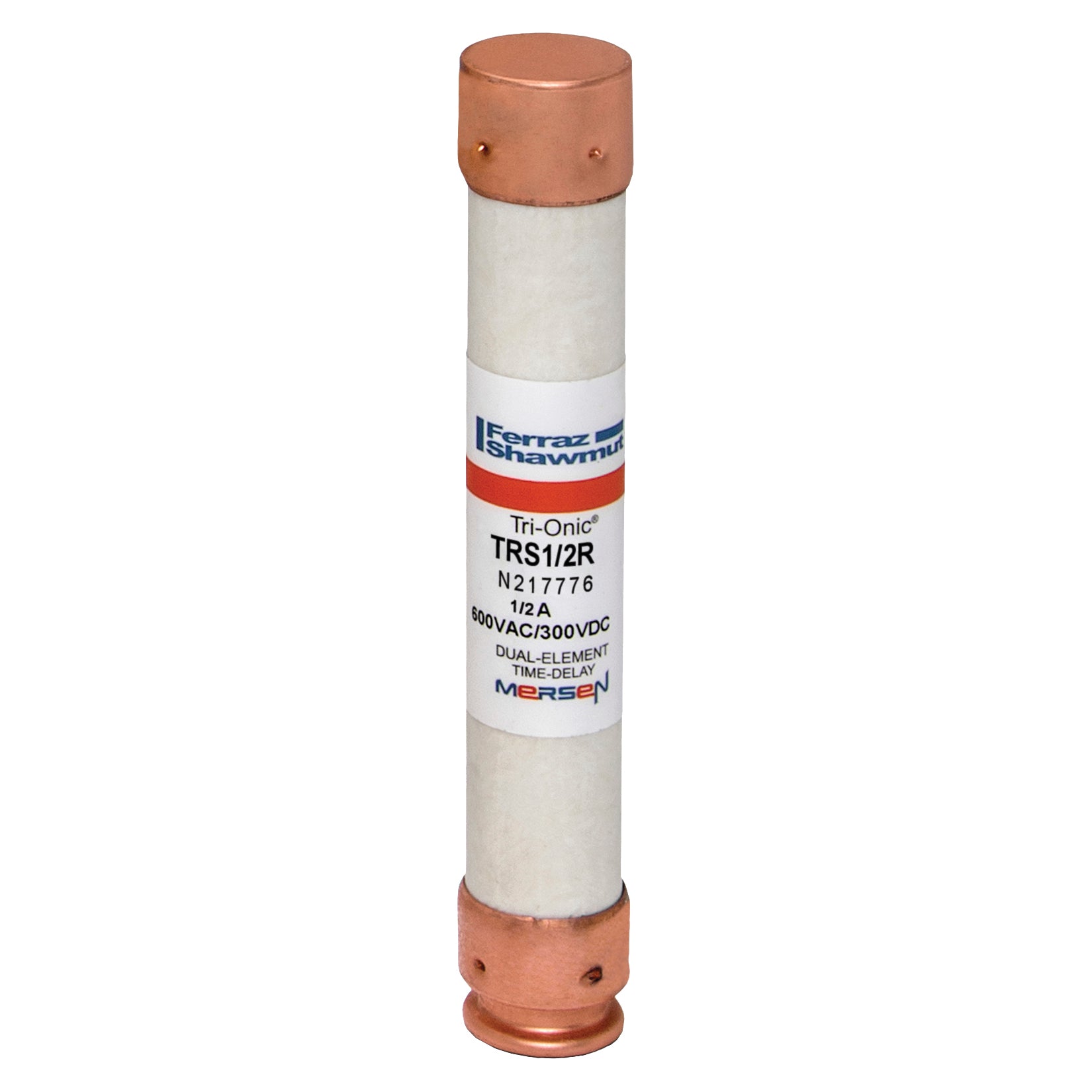

Mersen TRS12R 600V 1/2A 5X13/16 TD FUSE

Product Description

The Mersen TRS12R is a 600 volt, half ampere time-delay fuse designed for overcurrent protection in various applications. This fuse is classified as a Class RK5 type, suitable for protecting motors, transformers, and branch circuits. It features a cylindrical body for easy installation and is designed to handle inrush currents associated with motor start-ups without nuisance tripping. Ideal for use in industrial electrical systems.

• Voltage Rating: 600 VAC/VDC
• Interrupt Rating: 200/20 kA
• Amperage Rating: 1/2 A

Product Highlights

This fuse provides reliable performance for low voltage applications with current-limiting capabilities.

Product Information

Standard Information

• Manufacturer: Mersen
• Part Number: TRS12R

Technical Specifications

• Type: Current Limiting Low Voltage
• Fuse Class: RK5
• Mounting Type: Clip
• Terminal Type: Ferrule
• Body Size: 13/16 in Diameter x 5 in Length
• Material: Polyester
• Country of Origin: Mexico
• Application: Suitable for motor circuits, mains, feeders, branch circuits, transformers, and general-purpose equipment
