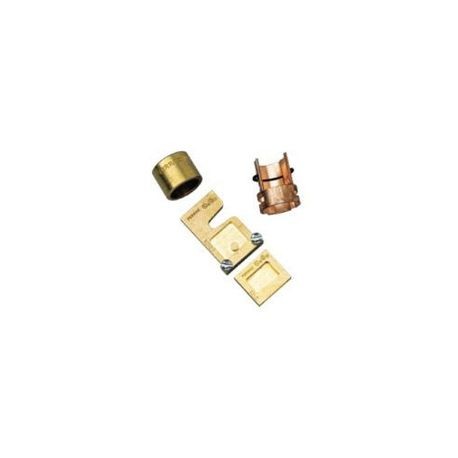

Mersen R636 Rejection Fuse Reducer 600 VAC 30 A Class: R

Product Description

The Mersen R636 is a rejection fuse reducer designed for applications requiring a 600 VAC, 30 A rating. This product allows the use of lower-rated fuses in equipment with higher ampere rating clips, enhancing circuit protection. By using more closely rated time delay fuses, users can improve the overall safety and efficiency of their electrical systems.

• Allows lower rated fuses to be inserted into higher rated clips.
• Facilitates improved circuit protection with time delay fuses.
• Ideal for retrofitting older equipment.

Product Highlights

Mersen's rejection fuse reducer restricts the use of only class R fuses in class R clips.

Product Information

Standard Information

• Brand: Mersen
• Manufacturer: Mersen

Technical Specifications

• Voltage Rating: 600 VAC
• Amperage Rating: 30 A
• GTIN: 00782001752460
• UPC: 782001752460
• Type: Rejection
• Class: R
• UNSPSC: 39121627
• Standard & Approvals: UL Listed Guide No. IZZR, CSA Certified
