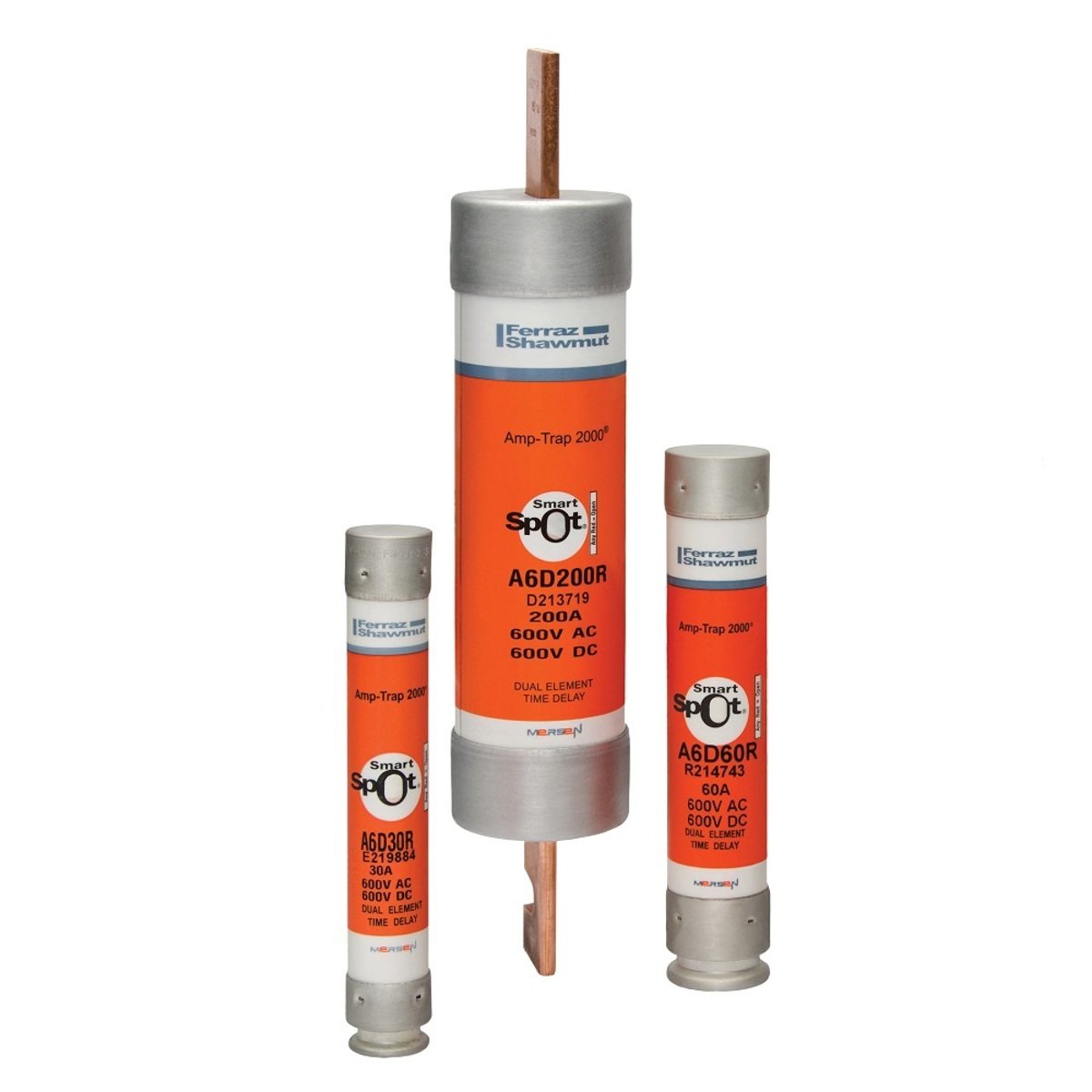

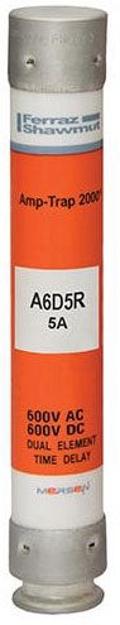

Mersen A6D5R FER Current Limiting Low Voltage North American Time Delay Fuse 5 A 600 VAC

Product Description

The Mersen A6D5R FER is a current limiting low voltage time delay power fuse designed for use in various electrical applications. This fuse operates at five amperes and is rated for six hundred volts. It features a high interrupting rating for superior protection of electrical components in motor and non-motor loads. The design of this fuse meets IEC type-2 protection standards, ensuring no damage during faults.

• Current limiting for safe operation
• Time-delay characteristics to manage inrush currents
• Cylindrical body with clip mounting

Product Highlights

The A6D5R is well-suited for safety switches, transformers, disconnects, and general-purpose circuits.

Product Information

Standard Information

• Brand: Mersen
• Manufacturer: Mersen

Technical Specifications

• Catalog Number: A6D5R
• Voltage Rating: 600 VAC
• Amperage Rating: 5 A
• Interrupt Rating: 200 kA
• Mounting Type: Clip
• Terminal Type: Ferrule
• Body Size: 13/16 in Dia x 5 in L
• Material: Fiberglass
