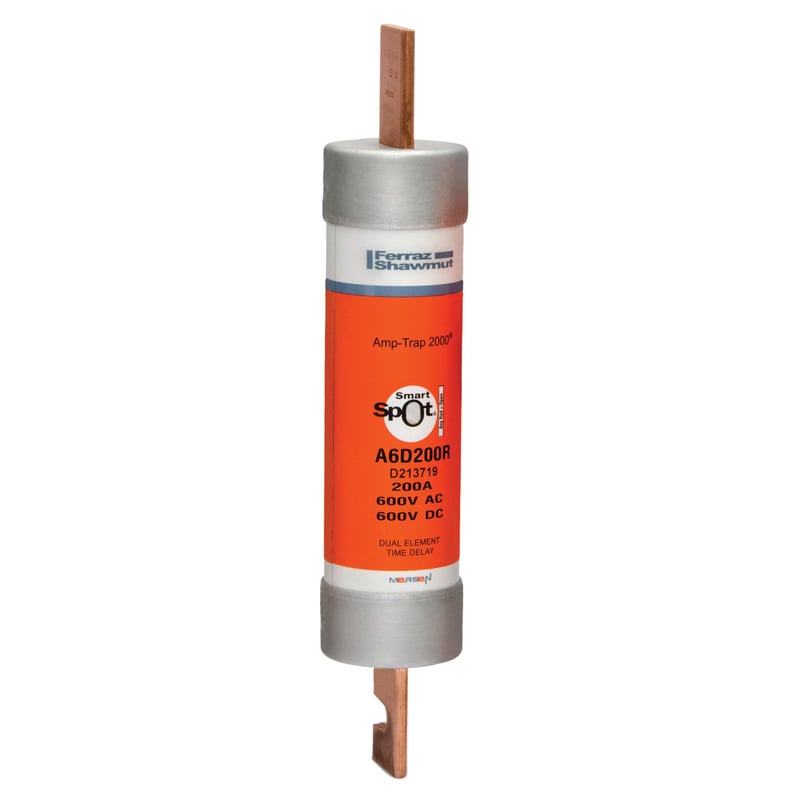

Mersen A6D200R 200 Amp 600 Volt Class RK1 Time Delay Fuse

Product Description

The Mersen A6D200R is a 200 amp, 600 volt Class RK1 time delay fuse designed for various critical electrical applications. This fuse is compatible with both AC and DC circuits. It features a blade connection type for easy installation. The time delay function allows for handling motor inrush currents effectively, preventing nuisance tripping.

• 200 ampere rating for reliable current handling
• Time delay for inrush current applications
• UL listed and CSA certified for safety and reliability

Product Highlights

This fuse ensures protection for motors, safety switches, transformers, and general-purpose circuits. The design reduces the chances of replacement errors when used with compatible fuse blocks.

Product Information

Standard Information

• Brand: Mersen
• MPN: A6D200R

Technical Specifications

• Voltage Rating: 600V
• Amperage Rating: 200 A
• Interrupt Rating: 200 kA
• Fuse Type: Time Delay
• Connection: Blade
• Standard: UL 248-12
• Dimensions: 9.63 x 1.81 inches
• Special Features: Visual blown fuse indicator, current-limiting capabilities
