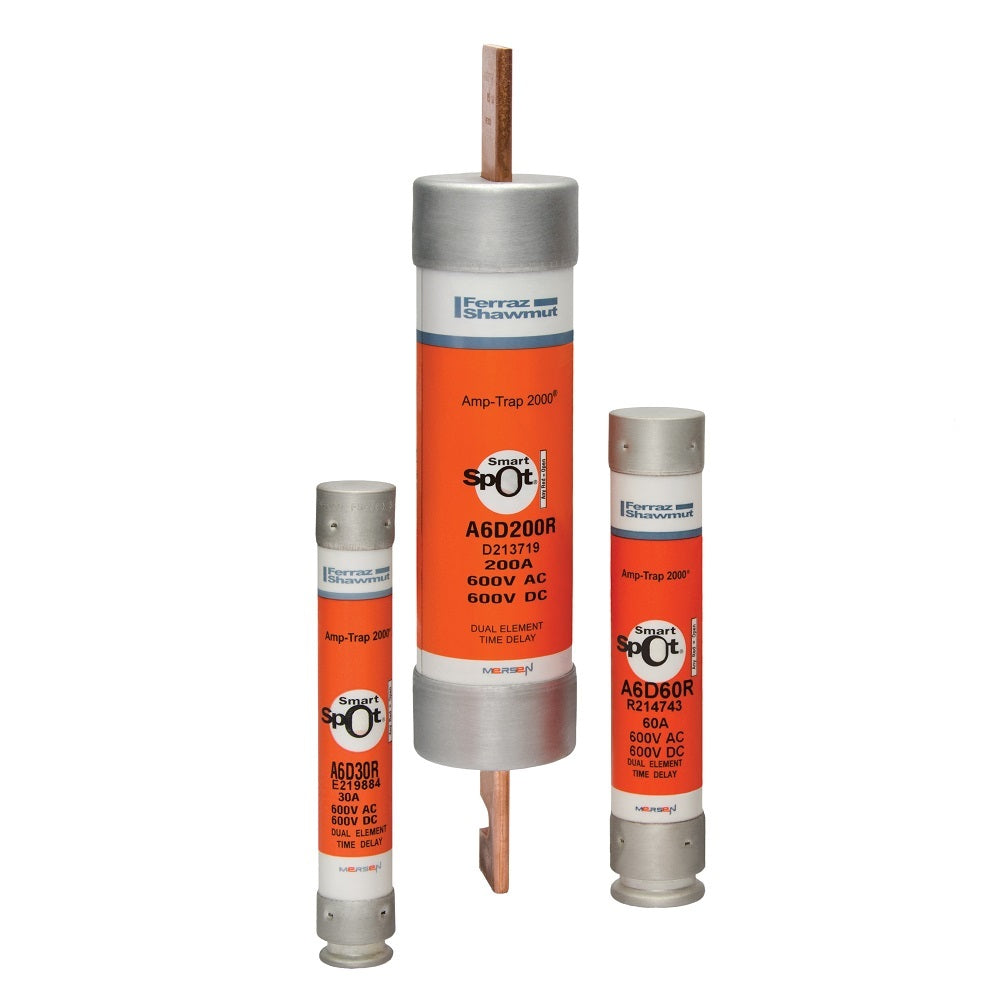

Mersen A6D100R Fuse Class RK1 Time-Delay 600VAC 600VDC 100A Blade SmartSpot

Product Description

The Mersen A6D100R fuse is designed for reliability and safety in electrical circuit protection. It provides a time-delay of 600VAC and 600VDC with a 100A current rating. Equipped with the SmartSpot feature, this class RK1 fuse offers visible indication of the fuse status, enhancing maintenance checks and safety.

• Time-delay feature supports motor starting and transformer inrush currents without nuisance trips.
• High interrupt rating of 200 KA at 600V maximizes protection against overcurrents.
• SmartSpot technology provides a visual indication when the fuse is blown.

Product Highlights

This fuse is built with a fiberglass body for dimensional stability in harsh industrial environments and is dual rated for AC and DC applications, providing versatile use across various electrical systems.

Product Information

Standard Information

• Brand: Mersen
• MPN: A6D100R
• Application: Suitable for motors, safety switches, transformers, and general-purpose circuits.

Technical Specifications

• Voltage Rating: 600VAC/600VDC
• Amperage Rating: 100A
• Interrupt Rating: 200KA at 600VAC, 100KA at 600VDC
• Mounting Type: Clip
• Size: 7.88 inches x 1.31 inches
• Type of Indicators: SmartSpot visual blown fuse indicator
• Special Features: Time-delay, current-limiting, arc flash reduction, high visibility label, rejection-style design
