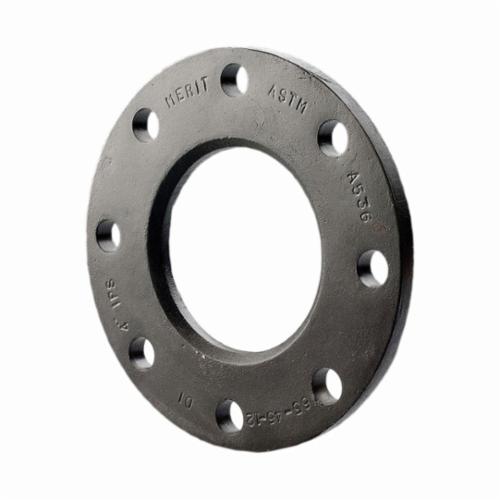

Merit Brass ADI-08 Back-Up Flange 1/2 in

Product Description

The Merit Brass ADI-08 is a back-up flange designed for various piping applications. This flange has a nominal size of one half inch and is made from ductile iron material, ensuring durability and reliability. The specific features include a bolt circle diameter of two and three eighths inches and four bolt holes for secure installation.

• Nominal size: 1/2 inch
• Material: Ductile iron
• Thickness: 7/16 inch

Product Highlights

The Merit Brass ADI-08 is suited for use in plumbing systems where reliable joint connections are necessary. Its robust design supports a variety of applications in commercial and residential environments.

Product Information

Standard Information

• Brand: Merit Brass
• Manufacturer: Merit Brass

Technical Specifications

• MPN: ADI-08
• Nominal Size: 1/2 inch
• Inside Diameter: 0.09 inch
• Outside Diameter: 3-1/2 inch
• Thickness: 7/16 inch
• Bolt Circle Diameter: 2-3/8 inch
• Bolt Hole Size: 0.622 inch
• Number of Bolt Holes: 4
• Domestic/Import: Import
