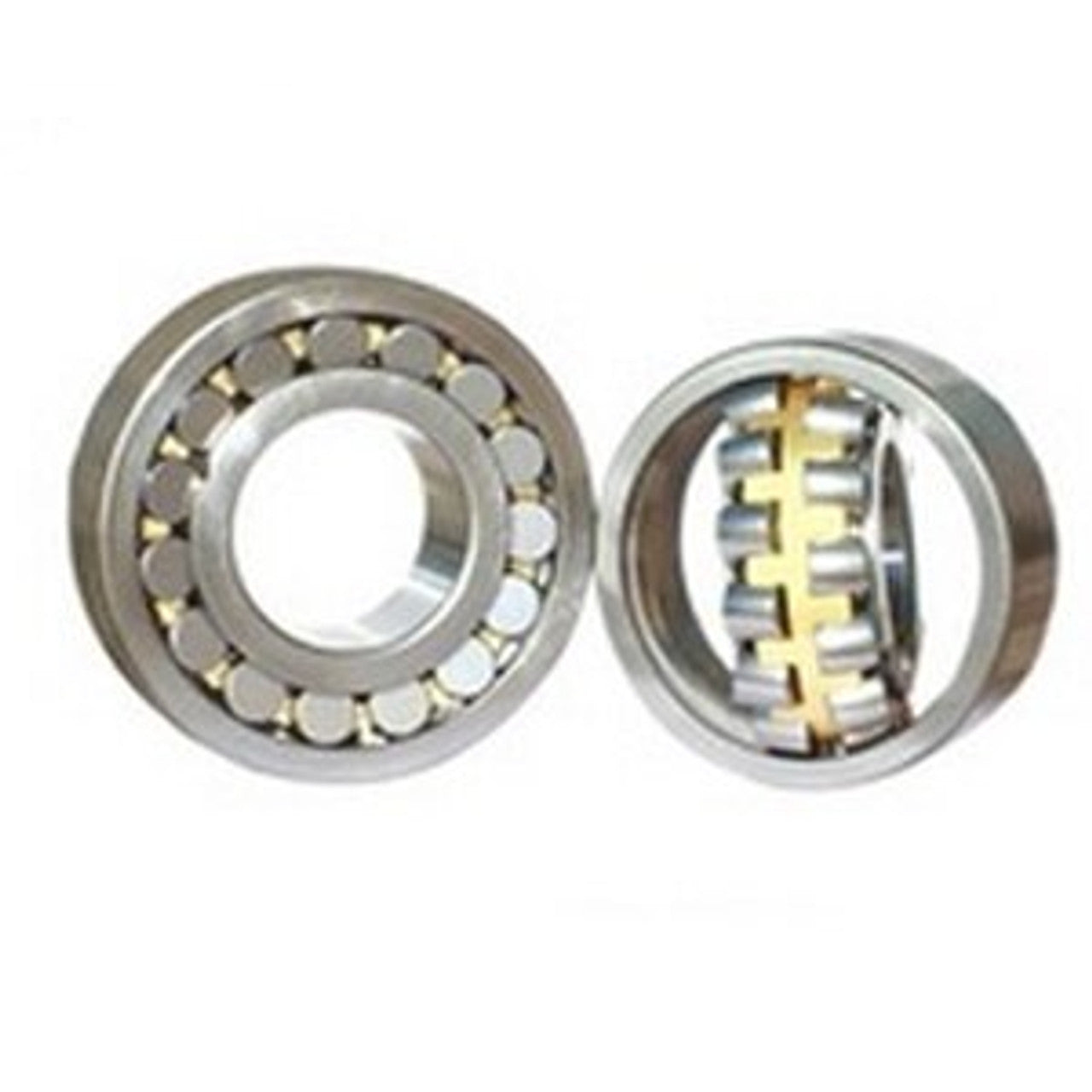

McGill SB22216KW33SS SPHERE-ROL Spherical Roller Bearing - 80 mm ID, 140 mm OD, 33 mm Width, Tapered 1:12 Bore, Sealed, Normal

Product Description

McGill SB22216KW33SS is a spherical roller bearing designed for various applications. The bore diameter measures eighty millimeters, while the outside diameter is one hundred forty millimeters. This bearing features a width of thirty-three millimeters. The product is suitable for use in environments where reliability and performance are critical. It is particularly effective in heavy load and high-speed applications.

• Single row separated spherical rolling elements
• Oil hole and annular lubrication groove for improved performance
• Nylaplate seal on both sides to protect against contaminants

Product Highlights

This bearing offers standard internal clearance and a tapered bore, making it suitable for various mounting configurations.

Product Information

Standard Information

• Brand: McGill
• Country Of Origin: Mexico

Technical Specifications

• Series: 22200
• Weight: 4.4 lbs
• Bore Diameter: 80 mm
• Outside Diameter: 140 mm
• Overall Width: 33 mm
• Max Rpm: 3250 rpm
• Closure Type: Sealed
• Operating Temperature Range: -30 to 300 °F
