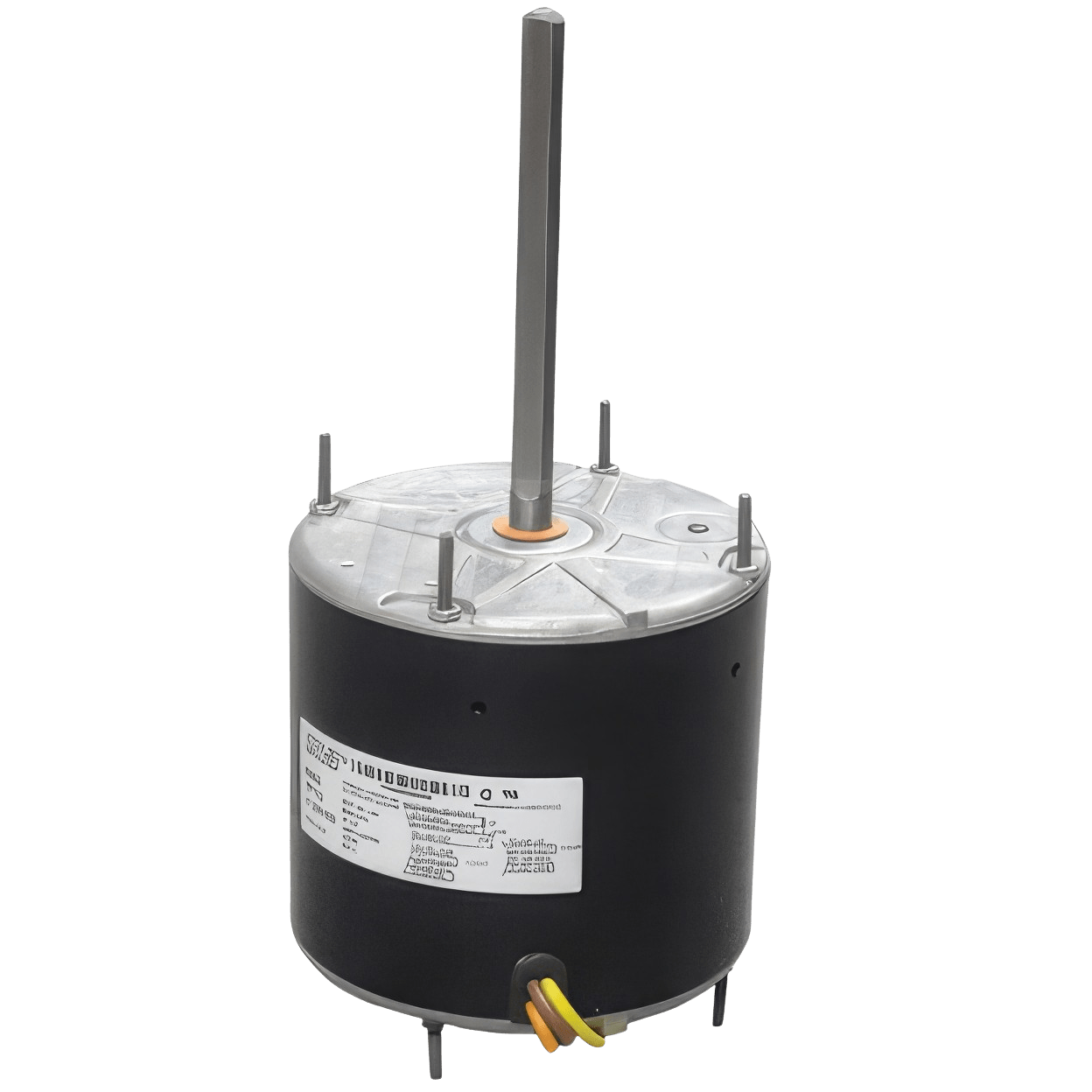

MARS Motors and Armatures 10405 PSC Condenser Fan Motor 1/3 HP 1.9A 825 rpm

Product Description

The MARS Motors and Armatures 10405 PSC Condenser Fan Motor is designed for reliable performance in HVAC systems. With a horsepower of one-third and an operating current of 1.9 amps, this motor runs at a speed of eight hundred twenty-five revolutions per minute. It operates efficiently on a voltage range of two hundred eight to two hundred thirty volts, making it suitable for various applications in air conditioning units.

• Single phase operation
• Mounting options include Thru Bolt or Band
• Shaft dimensions are half inch in diameter and six and a half inches in length

Product Highlights

The MARS 10405 is essential for maintaining optimal air circulation and cooling efficiency in your HVAC system.

Product Information

Standard Information

• Item Name: Condenser Fan Motor
• Voltage Rating: 208 to 230V

Technical Specifications

• Type: Condenser Fan Motor
• Horse Power: 1/3 HP
• Phase: 1
• Shaft Diameter: 1/2 inch
• Mounting: Thru Bolt or Band
• Shaft Length: 6-1/2 inch
