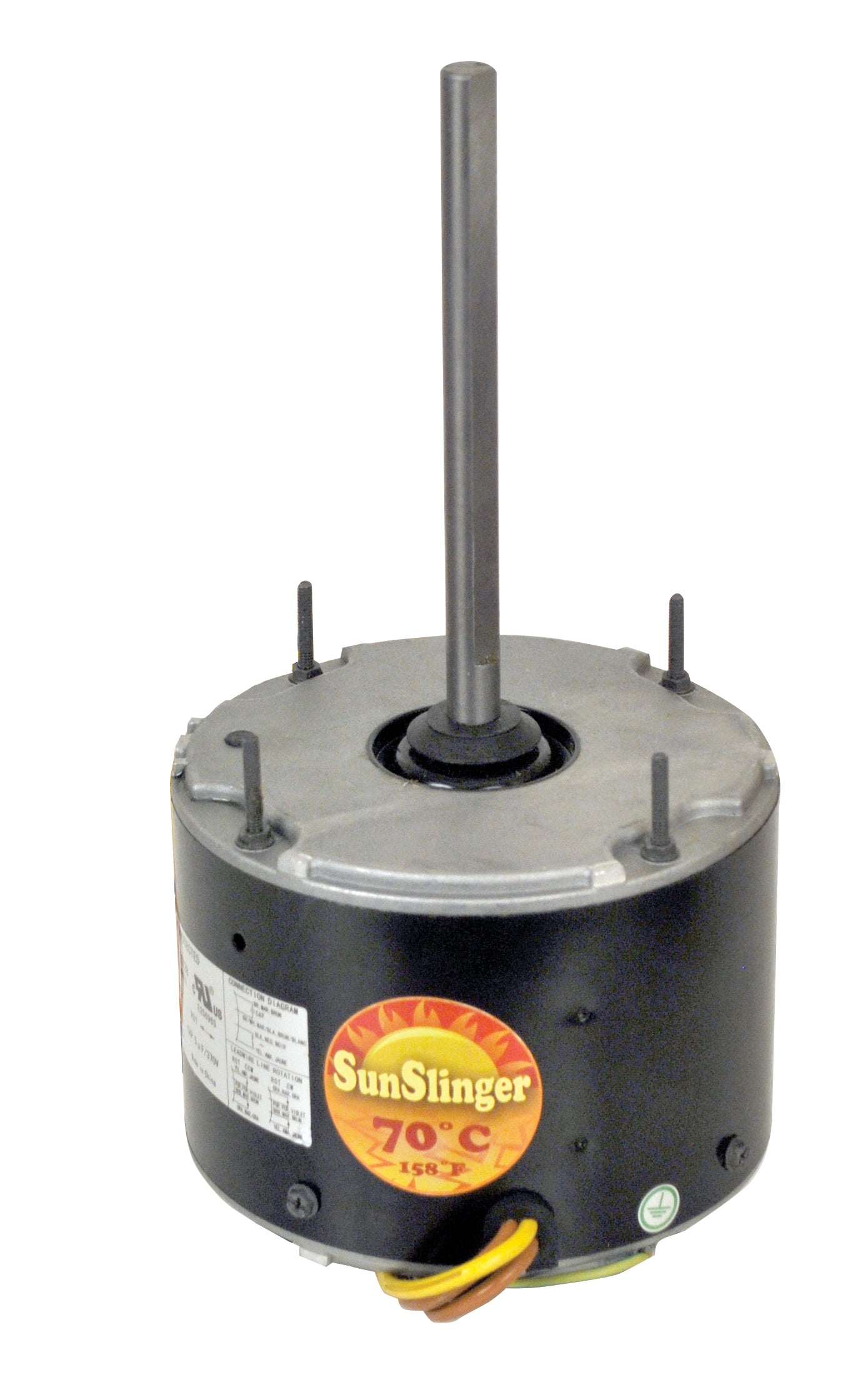

Mars 20848 M M 20848 1/2HP 460v 1075 TE High Temp Ball Bearing Cond Motor 10MFD

Product Description

The Mars 20848 is a 1/2 horsepower condenser motor designed for HVAC applications. With a voltage of 460 volts and a speed of 1075 RPM, it delivers reliable performance for various cooling systems.

• Ball bearing design suitable for high temperature environments
• Single-phase motor for standard use in HVAC systems
• NEMA frame size of forty-eight for compatibility with standard mounting

Product Highlights

This motor is suitable for both clockwise and counterclockwise rotation. It includes a capacitor rating of 10/440 and features a shaft diameter of one-half inches.

Product Information

Standard Information

• Product ID: 83486
• Description: M M 20848 1/2HP 460v 1075 TE High Temp Ball Bearing Cond Motor 10MFD

Technical Specifications

• Motor Type: PSC
• NEMA Frame Size: 48
• Number Of Phases: Single
• Shaft Diameter: 1/2
• Speed: 1
• Voltage: 460
• Capacitor Rating: 10/440
• FLA: 1.3
• H.P.: 1/2
• RPM Range: 1075
• Rotation: CW/CCW
