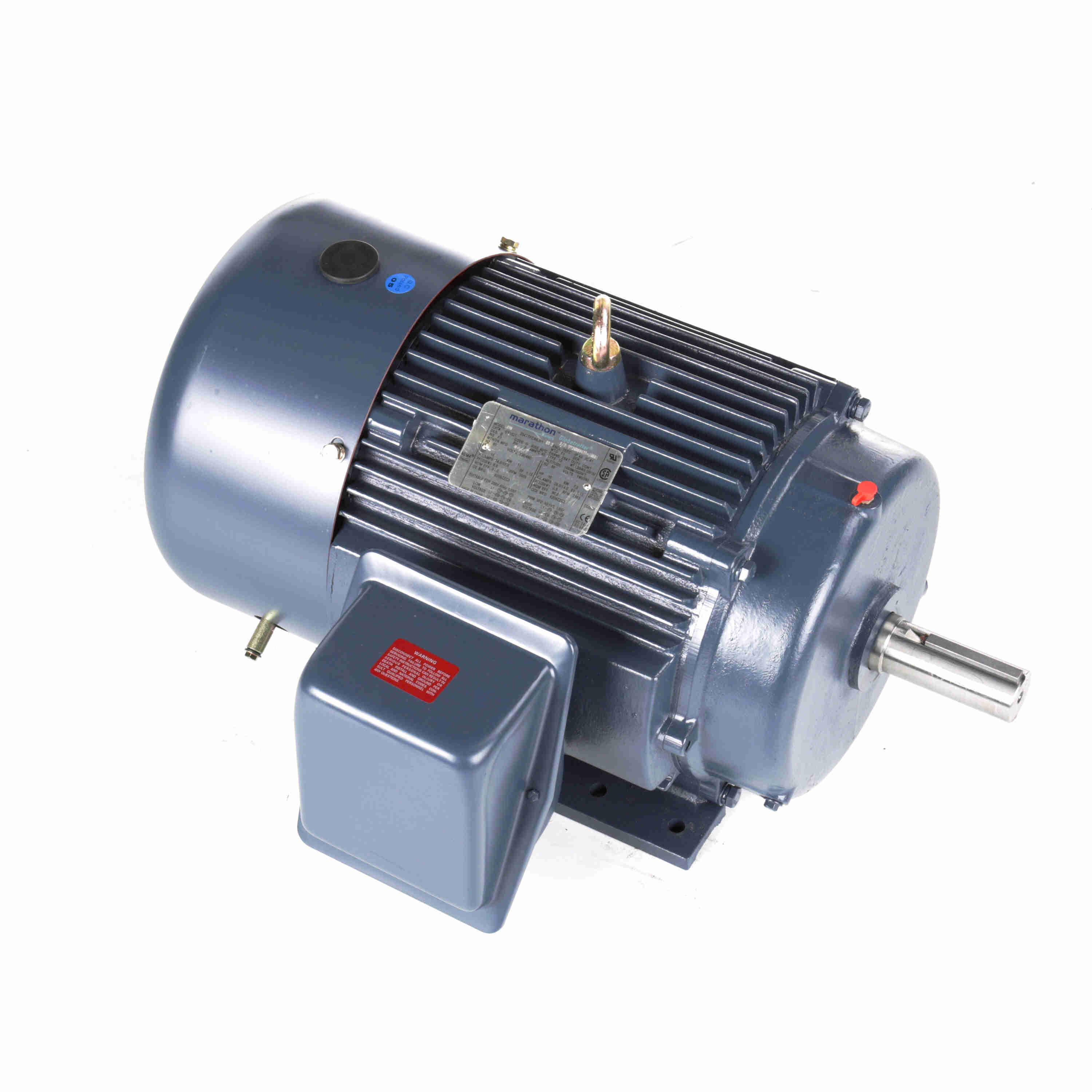

Marathon Motors GT1021 15HP General Purpose Motor, 3600 RPM, 230/460V, NEMA Premium

The Marathon Motors MGT1021 Globetrotter General Purpose Motor, a 15 HP, 3600 RPM, 230/460 V motor that meets or exceeds NEMA Premium efficiencies. This UL Recognized, CSA Certified, and CE Mark certified motor features a cast iron frame and brackets, inverter duty 10:1 Variable Torque and 10:1 Constant Torque, 1.0 SF, and a standard F1 assembly that is reversible to F2.

• Meets or exceeds NEMA Premium efficiencies
• Cast iron frame and brackets
• Inverter Duty 10:1 Variable Torque and 10:1 Constant Torque, 1.0 SF
• Class F Insulation
• Standard assembly F1, reversible to F2 assembly

Specifications:

• Hp - 15
• Rpm - 3600
• Volts - 208-230/460
• Frame - 254t
• Nom. Eff. - 91.0
• Full Load Amps - 34/17.0
• C Dimension - 23.70
• Mfr #: GT1021
