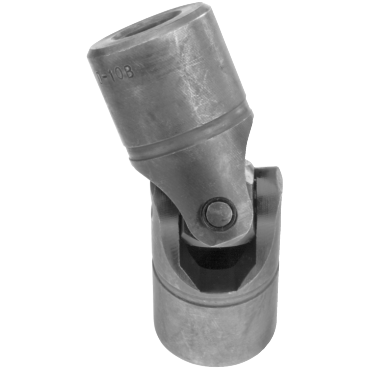

Lovejoy D12BSS1X1PB D Type Stainless Steel Universal Joint

Product Description

The Lovejoy D12BSS1X1PB is a D Type stainless steel universal joint designed for high strength and full movement. This product is ideal for applications that require reliable operation at high speeds. The joint accommodates significant horsepower and can operate at maximum speeds up to one thousand seven hundred fifty revolutions per minute (rpm).

• Bore diameter of one inch
• Overall length of five point four four inches
• Maximum operating angle of twenty-five degrees

Product Highlights

This universal joint offers exceptional durability and flexibility, making it suitable for demanding mechanical applications.

Product Information

Standard Information

• Brand: Lovejoy
• MPN: D12BSS1X1PB

Technical Specifications

• Insert Style: Bored
• RPM [Max]: 1750 rpm
• Color: Metallic
• Overall Length: 5.44 inches
• Max. Operating Angle: 25 degrees
• Style: Single
• Bore Dia. [Max]: 1.5 inches
• Nominal Size: 1 inch
• Bore Depth: 1.5 inches
• Torque Rating [Max]: 10400 in lb
• Set Screw: None
• Coupling Type: Universal Joints - D Type
• Keyway Size: No Keyway
• Outside Dia.: 2 inches
• Temperature Range [Min]: -30 degrees F
• Temperature Range [Max]: 212 degrees F
• Bore Type: Finished
• Coupling Size: D12B
• Weight: 3.263 pounds
• EAN or UPC: 685144311832
