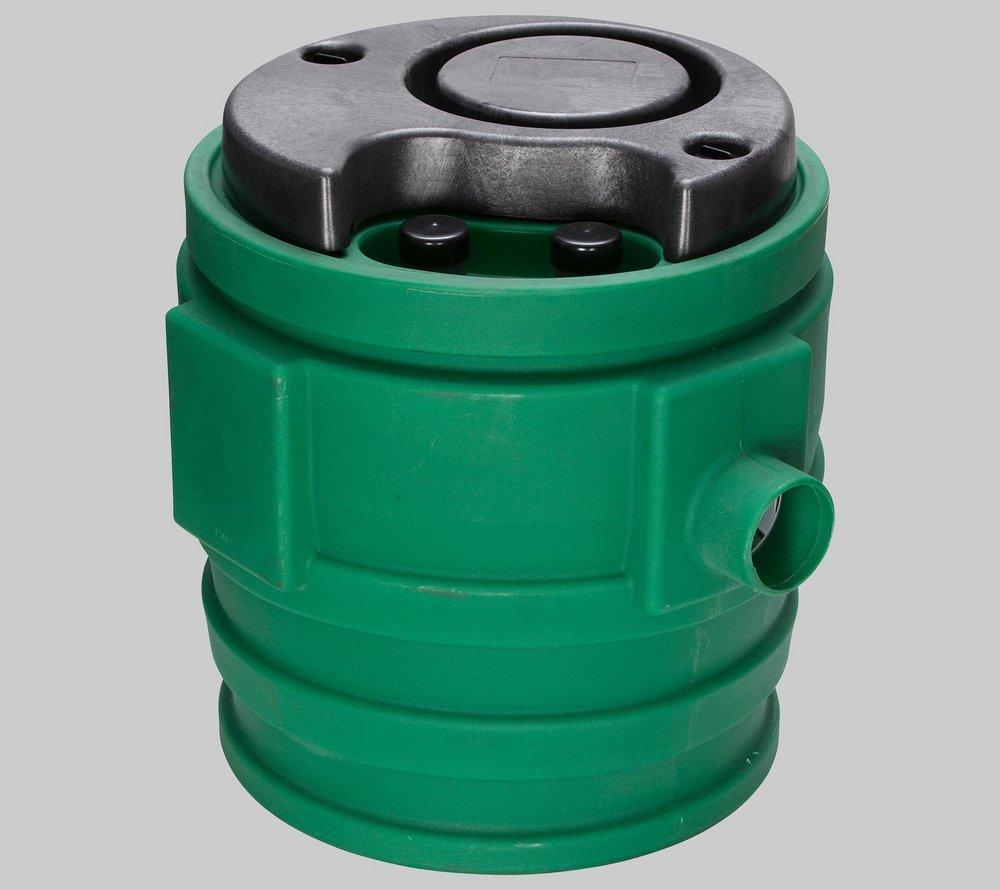

Little Giant 509674 4/10 hp Rotomolded Polyethylene Simplex System with Float Switch

Product Description

The Little Giant 509674 is a 4/10 horsepower rotomolded polyethylene simplex system featuring a float switch. This system is designed for sewage and drainage applications. It has a radial rib design and is suitable for both residential and commercial uses.

• Pre-assembled for easy installation
• Includes molded inlet hub and anti-floatation collar
• Integrated float switch for automatic operation

Product Highlights

This simplex system efficiently handles sewage, effluent, and drainage water with a maximum flow rate of 6600 gallons per hour at five feet. It features a maximum head height of twenty feet and offers solid handling capabilities up to two inches.

Product Information

Standard Information

• Manufacturer: Little Giant Pump Company
• Model Number: 509674

Technical Specifications

• Domestic/Import: Domestic
• Flow Rate: 6600 gph
• Horsepower: 4/10 hp
• Inlet Size: 4 in
• Maximum Head: 20 ft
• Phase: 1 ph
• Series: Pit Plus Jr
• Solids Handling: 2 in
• Switch Type: Float
• Voltage Rating: 120 V
