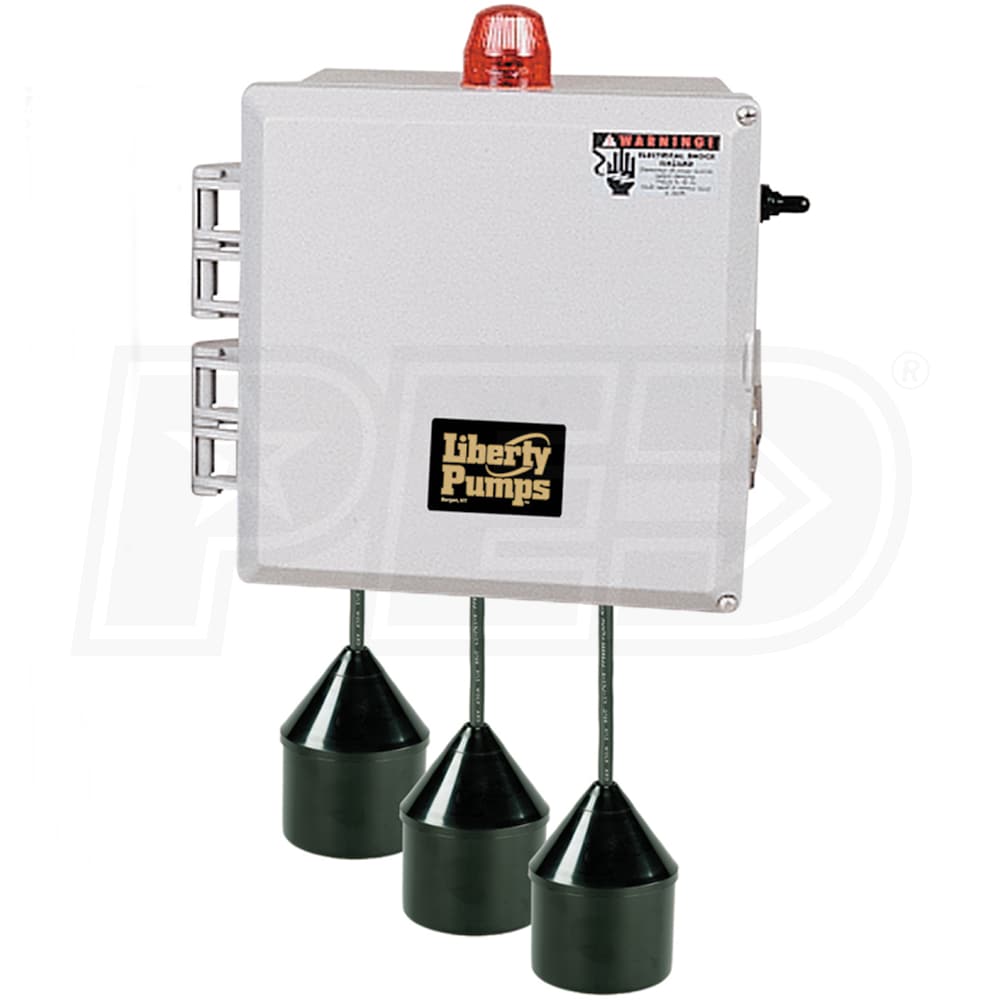

Liberty SXL24=3 Simplex Pump Control Panel

Product Description

The Liberty SXL24=3 simplex pump control panel is essential for managing single-pump systems in both residential and commercial settings. It operates on 120/208/240 volt, single-phase power and accommodates pump full load amps from zero to fourteen point nine. The NEMA 4X enclosure allows for both indoor and outdoor installations. This control panel is equipped with pilot-duty float switches, visual alerts, and audio alarms for high-water scenarios.

• NEMA 4X enclosure for durability in various environments.
• Includes visual (LED beacon) and audible (83-85 dB horn) alarms.
• Comes with three float switches for pump operation and alarm functions.

Product Highlights

This product supports efficient pump management, making it suitable for sump basins and lift stations.

Product Information

Standard Information

• Product Category: Water Pump Accessories
• Control Type: Simplex (for single pump systems)

Technical Specifications

• Input Voltage: 120/208/240V
• Phase: 1-Phase
• Output Current: 0-14.9 Amps
• Float Specifications: Three floats (Off, On & Alarm) with eighteen-gauge, twenty-foot cord
• Alarm: 83-85 dB horn with LED beacon
• Enclosure: NEMA 4X, dimensions eight by eight by four inches, made from UV-stabilized thermoplastic
• Weight: 13 pounds
• Approx Weight: 19 lbs
