LIBERTY P682XPRG101 ProVore 680 Duplex Grinder Pump System

Product Description

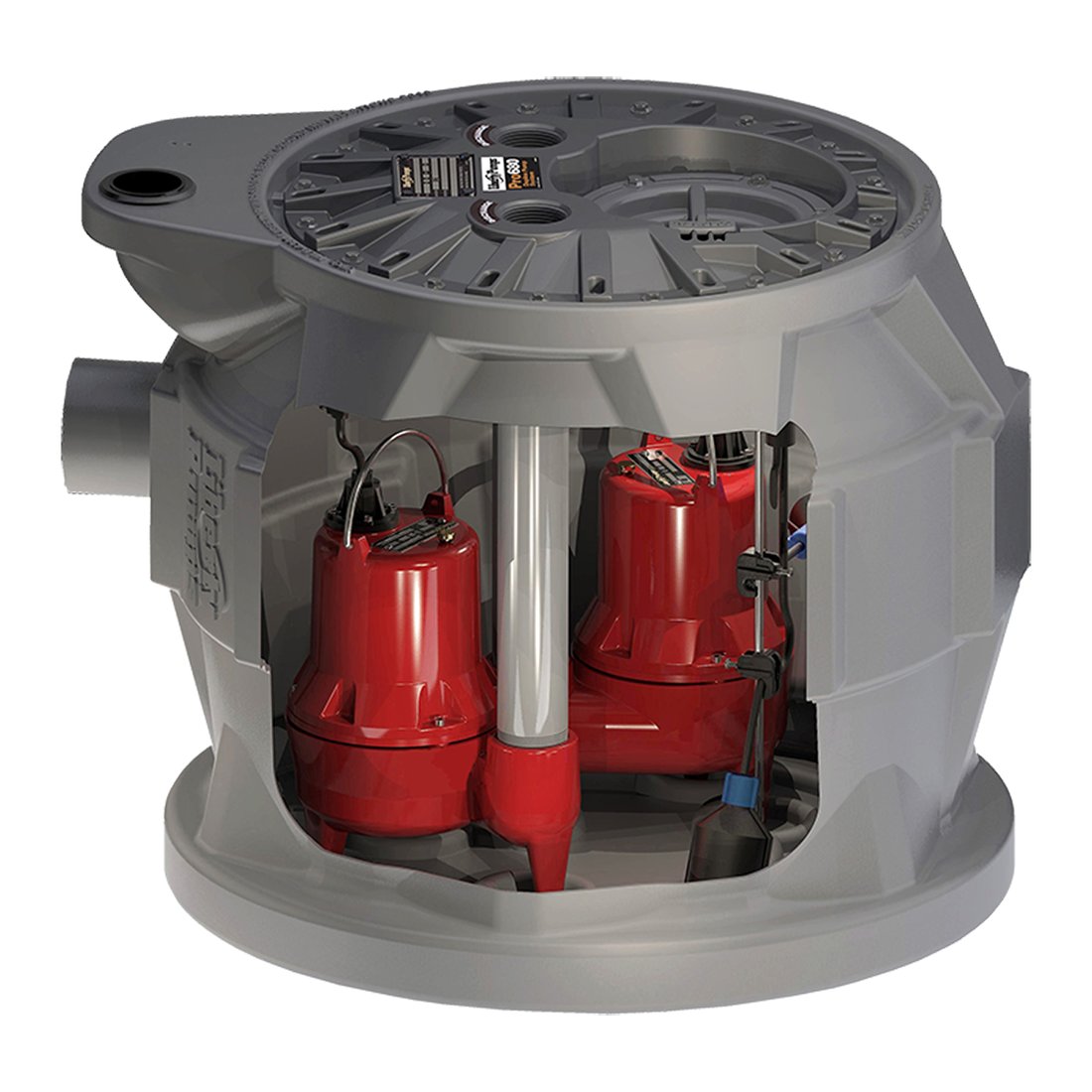

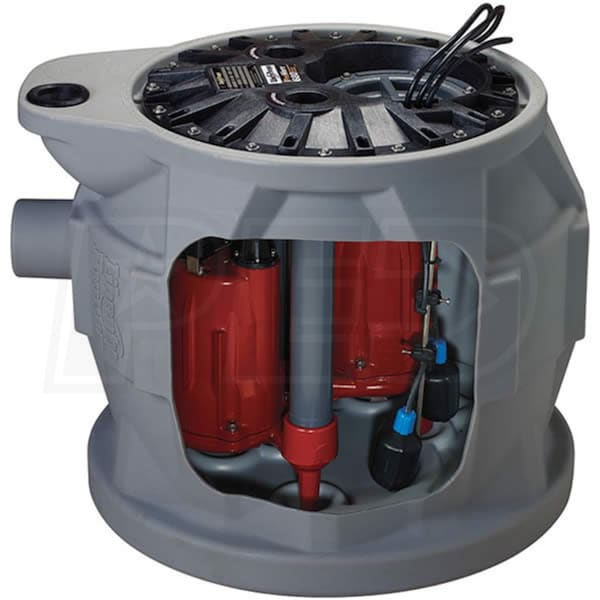

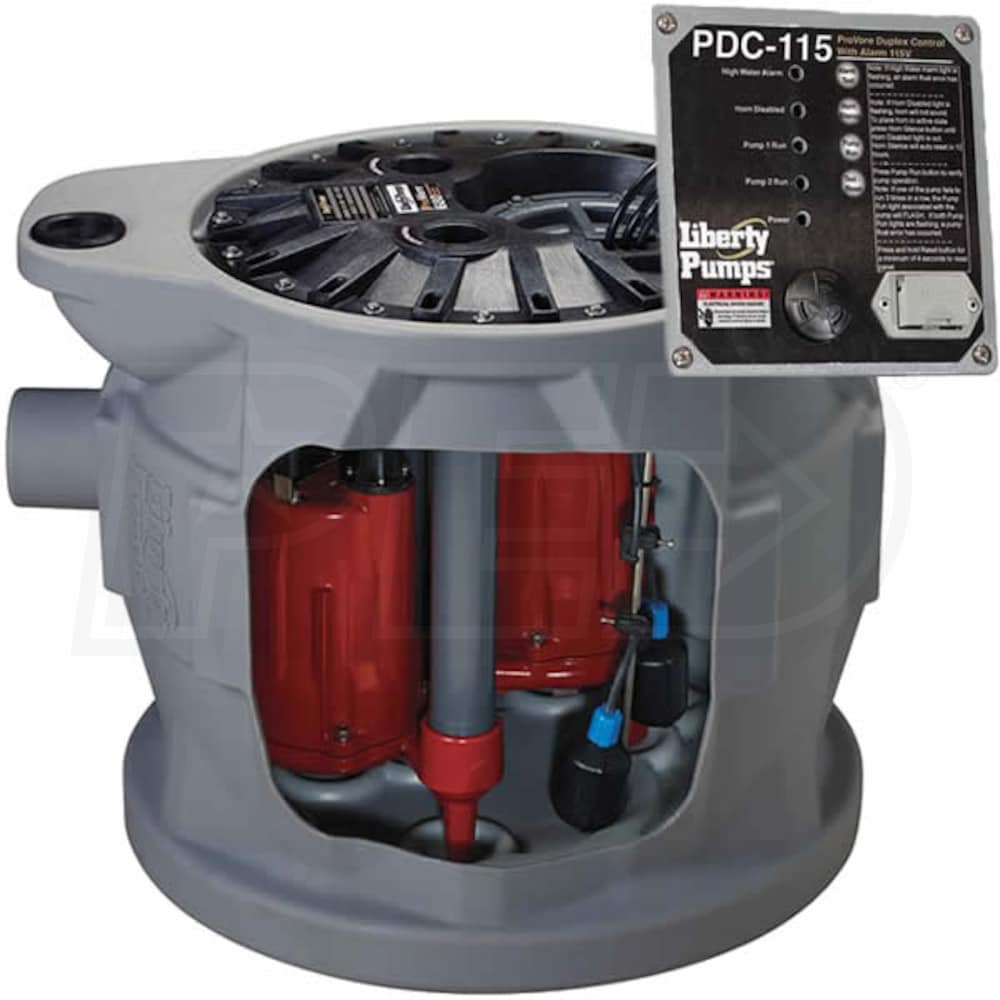

The LIBERTY P682XPRG101 ProVore 680 Duplex Grinder Pump System is suitable for residential and light commercial sewage tasks. It comes fully assembled with a polyethylene basin measuring twenty-four inches by twenty-four inches and a sixteen-bolt cover. This system includes two one horsepower ProVore residential grinder pumps and a duplex pump controller to improve efficiency. The system alternates between the two pumps to even out wear. This grinder pump system features advanced V-Slice cutter technology which allows effective grinding of solids. Furthermore, it includes QuickTree technology which simplifies the removal of floats.

• Includes two one horsepower grinder pumps and a duplex pump controller.
• Features a twenty-four inch by twenty-four inch polyethylene basin with a sixteen-bolt cover.
• Equipped with V-Slice cutter and QuickTree technologies for ease of use.

Product Highlights

This product is ideal for sewage management in homes and small businesses.

Product Information

Standard Information

• Brand: LIBERTY
• MPN: P682XPRG101

Technical Specifications

• Product Category: Sump Pump
• Base Material: Cast Iron
• Input Voltage: 115V
• Running Amps: 12
• Thermal Protection: Yes
• Power Cord Length: 10 Feet
• Horsepower: 1 HP
• GPH @ 0 Feet: 2760
• GPH @ 5 Feet: 2700
• GPH @ 10 Feet: 2580
• GPH @ 15 Feet: 2400
• GPH @ 20 Feet: 2160
• Discharge Port Size: 2 Inch
• Manual Override: Yes
• Weight: 151 Pounds
• Consumer Warranty: 3 Years
• Product Length: 29.625 Inches
• Product Width: 29.625 Inches
• Product Height: 24 Inches
• Flow Rate: 44 gpm
• Maximum Feet of Head: 50
• Pump Body Material: Cast Iron
• Pump Motor Type: Thermally Protected
• Pump Phase: 1
• RPM: 3450
• Turn On/Turn Off Levels: Turn-on 11-1/2 in / Turn-off 4-1/2 in
