LIBERTY P382XPRG101/A2 ProVore 380 Grinder Pump System with Alarm

Product Description

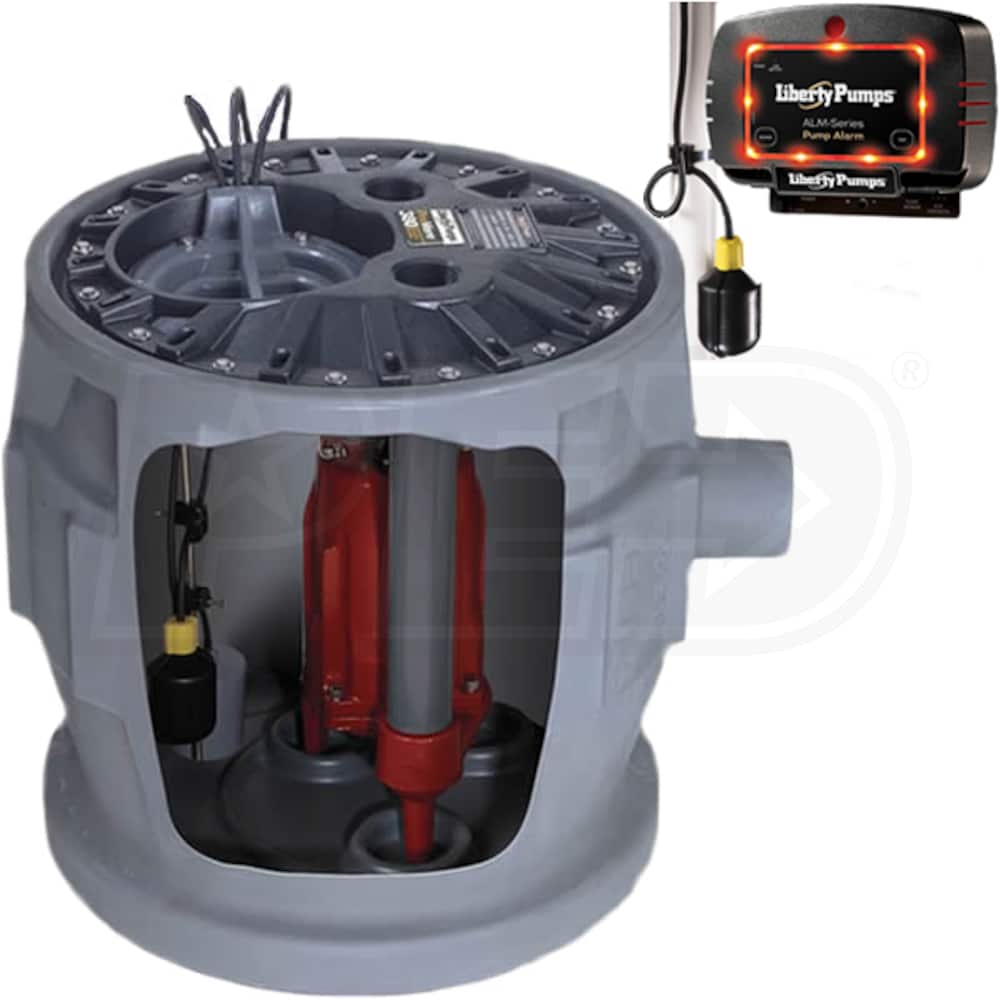

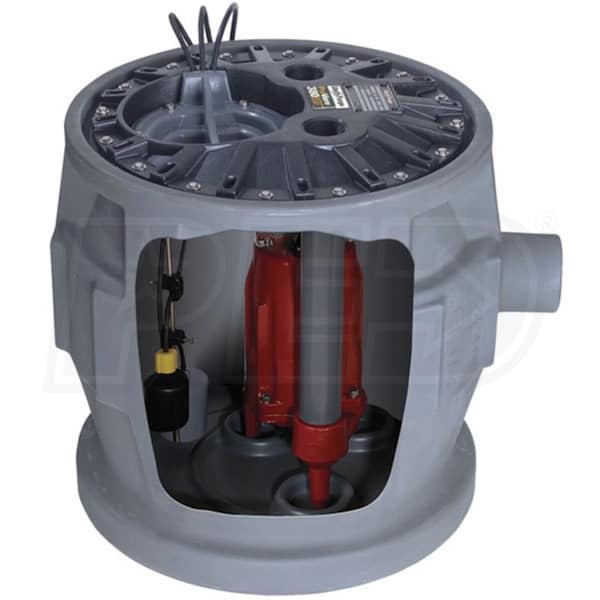

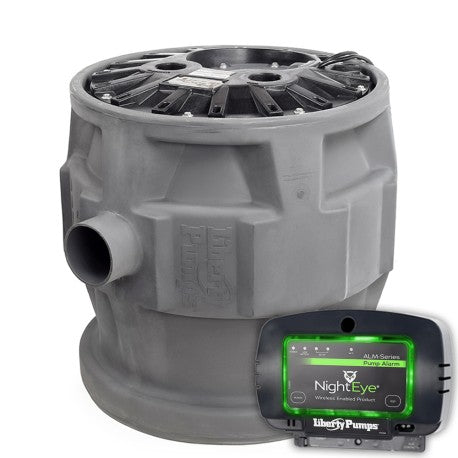

The LIBERTY P382XPRG101/A2 ProVore 380 Grinder Pump System is intended for residential and light commercial sewage applications. It features a one horsepower grinder pump, a polyethylene basin installed with a molded four-inch inlet, and a factory-mounted ALM-2 alarm. The pump utilizes V-Slice cutter technology with a stainless steel cutter and a cast iron impeller. It includes a piggyback tether float switch for automatic operation and comes with a ten-foot quick-disconnect power cord.

• Pre-assembled with an alarm for effective level control.
• Equipped with a 24-inch by 24-inch (41-gallon) polyethylene basin.
• Utilizes V-Slice cutter technology in the one horsepower grinder pump.

Product Highlights

This grinder pump system is designed for reliable performance in handling sewage efficiently.

Product Information

Standard Information

• Brand: LIBERTY
• Product Category: Sump Pump

Technical Specifications

• Horsepower: 1 HP
• Voltage: 115 V
• Amperage: 12 A
• Discharge Port Size: 2 inches
• Inlet Diameter: 4 inches
• Power Cord Length: 10 feet
• Housing Material: Polyethylene
• Thermal Protection: Yes
• Impeller Material: HYTREL
• Shaft Material: Stainless Steel
• Switch Type: Float
• Basin Size: 24 inches wide x 24 inches deep
• Basin Capacity: 41 gallons
• Weight: 87 pounds
• Product Width: 25 inches
• Product Height: 24 inches
• Maximum Fluid Temperature: 140 °F
• Certifications: CSA
• Electrical Phases: 1
• Discharge Diameter: 2 inches
• Maximum Diameter Solids: 2 inches
• Shutoff Head in Feet: 37
• Flow Rate (GPM): 46
• Flow Rate by Feet of Head: 44 gallons / 10 feet, 16 gallons / 40 feet, 46 gallons / 1 foot
