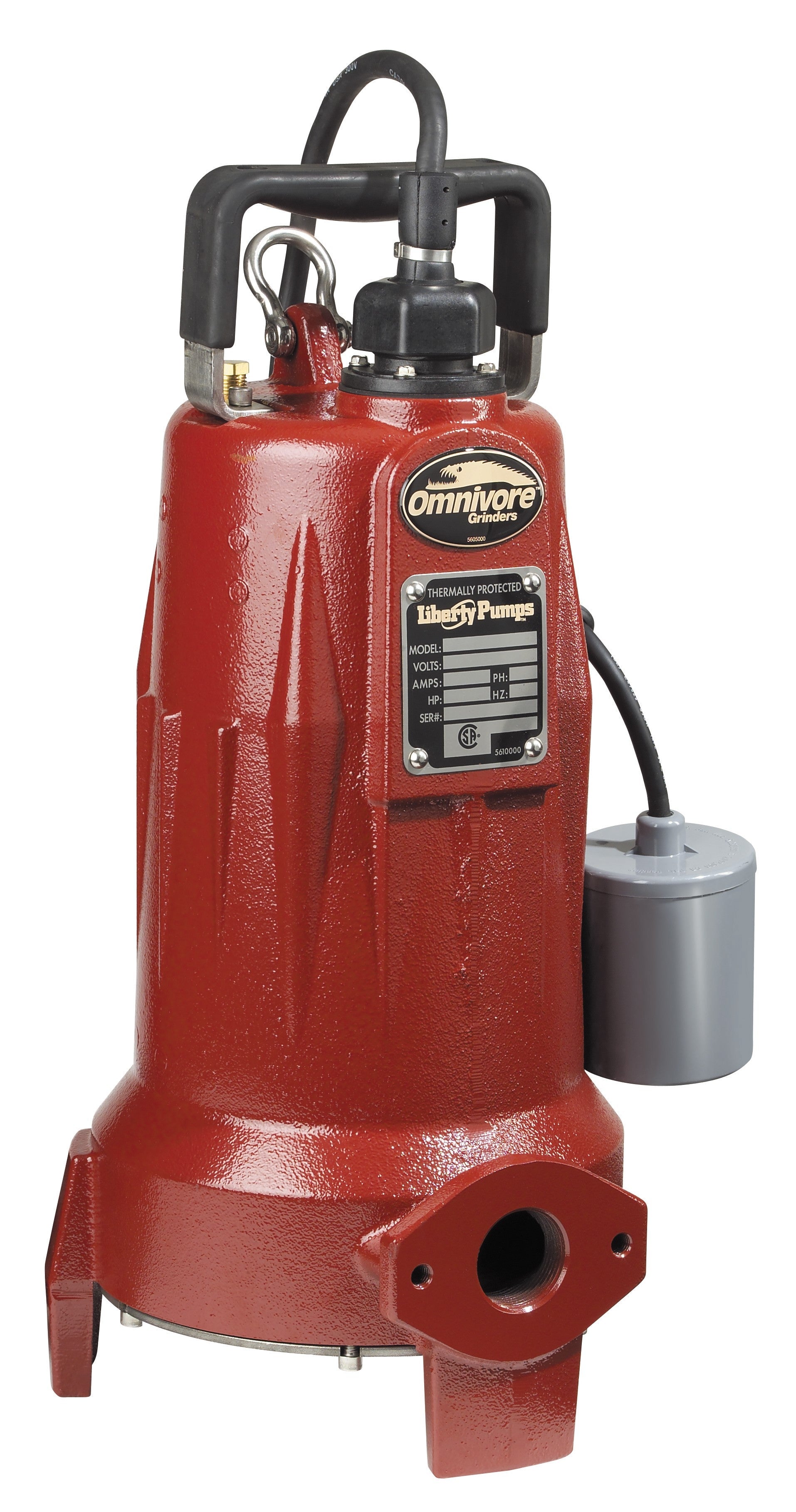

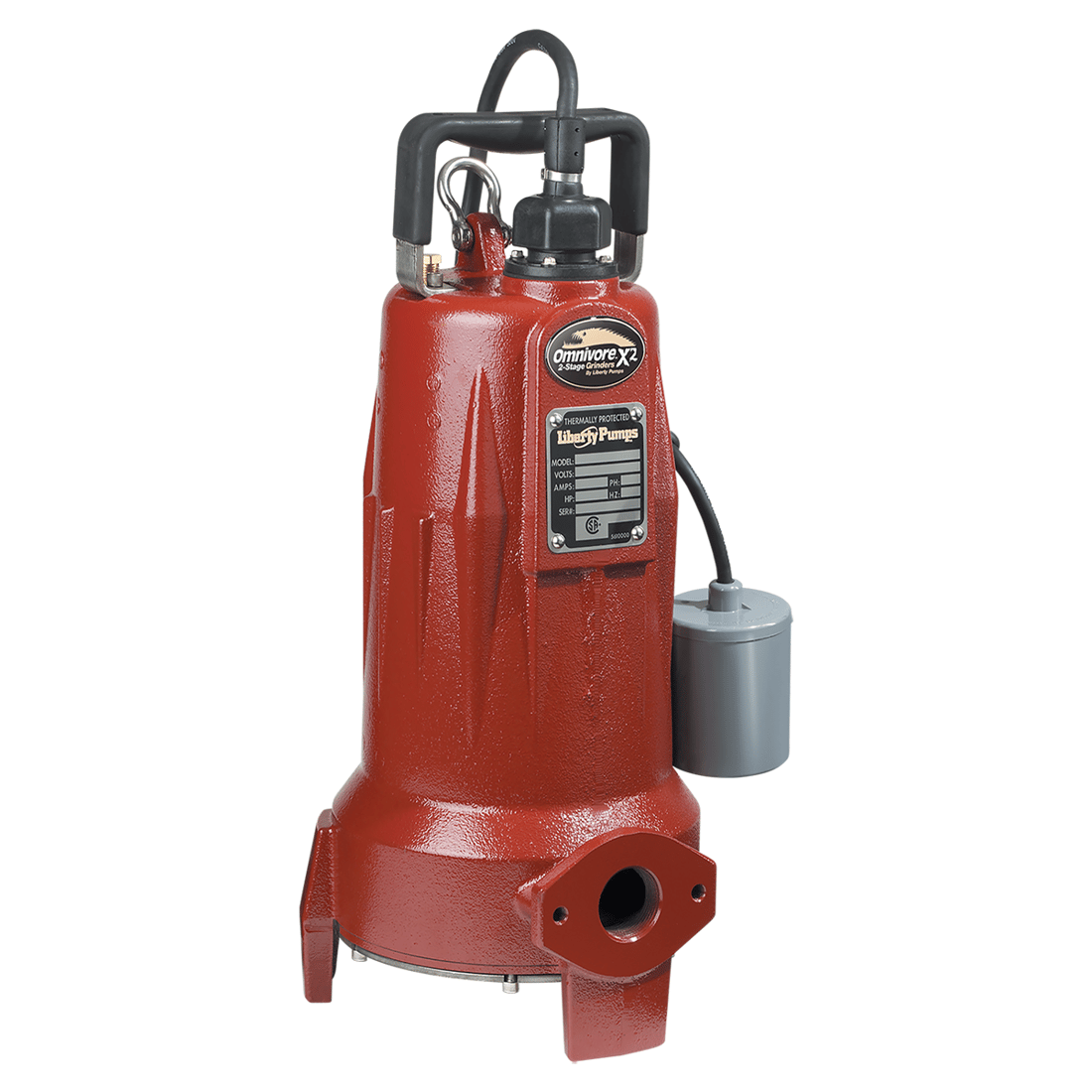

LIBERTY LSGX202A 2 HP Omnivore Grinder Pump

Product Description

The LIBERTY LSGX202A is a submersible grinder pump with a two horsepower rating, designed for use in sewage systems in both residential and commercial settings. This pump operates on a voltage of 208 to 230 volts and features a single-phase design for reliability. Its two-stage configuration and V-Slice cutter made from hardened stainless steel effectively reduce solids into a slurry, making it efficient for low-pressure sewer applications.

• Features a two-stage design for high-pressure performance.
• Equipped with a V-Slice cutter system made of hardened stainless steel.
• Includes a 25 ft power cord with quick-disconnect capability.

Product Highlights

This grinder pump is designed for underwater use and incorporates a piggyback float switch for automatic operation. The pump's Class B insulation ensures durability.

Product Information

Standard Information

• Brand: Liberty
• Manufacturer Part Number: LSGX202A

Technical Specifications

• Product Type: Grinder pump
• Series: LSGX
• Application: Low pressure sewer systems
• Horsepower: 2 HP
• Motor Voltage: 208/230 Volt
• Operation: Automatic
• Phase: 1
• Full Load Amps: 15
• Float Switch: Piggyback
• Frequency: 60 Hz
• Speed: 3450 RPM
• Discharge Connection: 1-1/4 horizontal
• Maximum Total Head: 185 ft
• Maximum Flow: 38 GPM
• Power Cord Length: 25 ft
• Max Fluid Temperature (Intermittent): 140°F
• Max Fluid Temperature (Continuous): 104°F
