Product Description

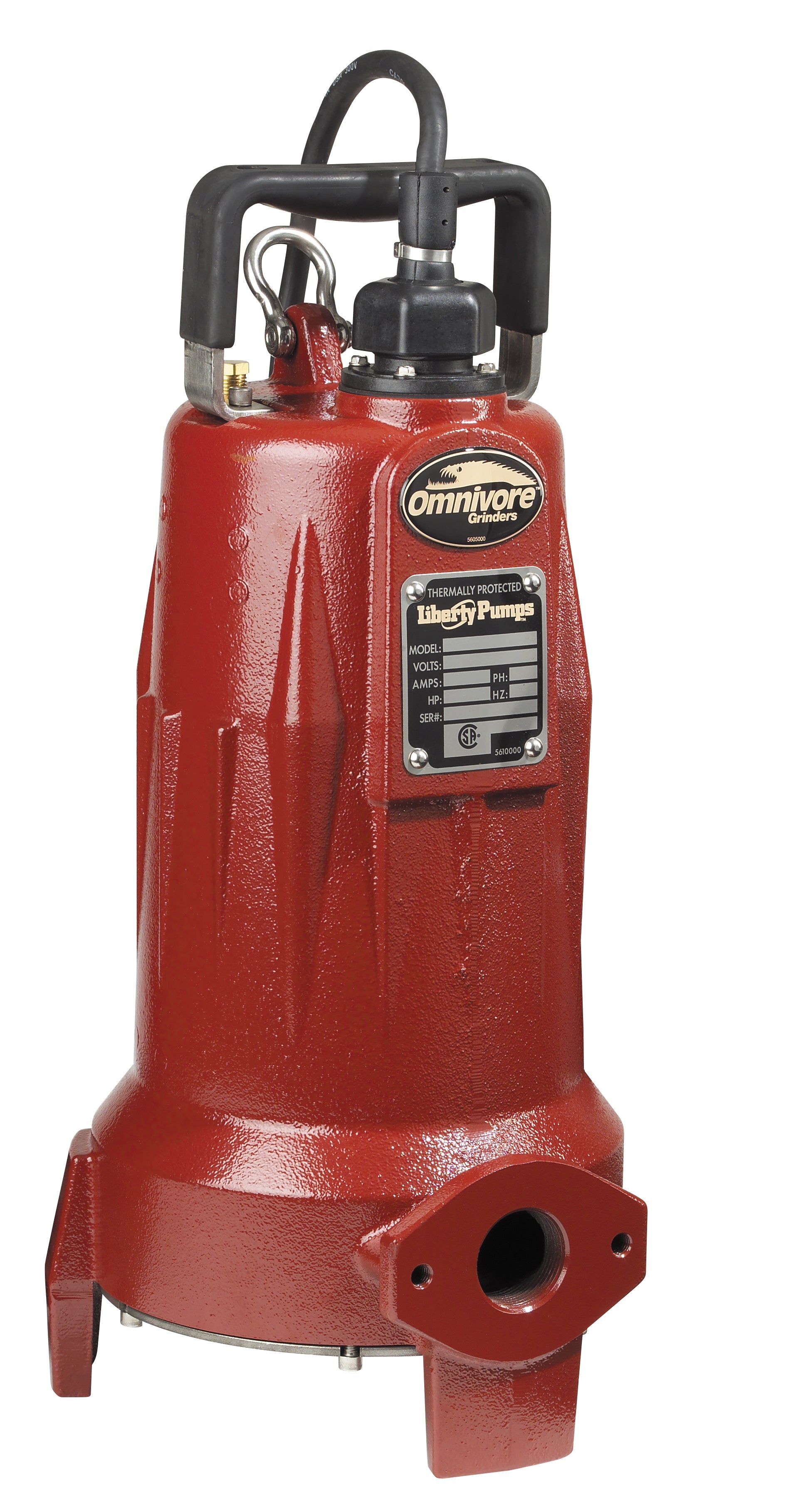

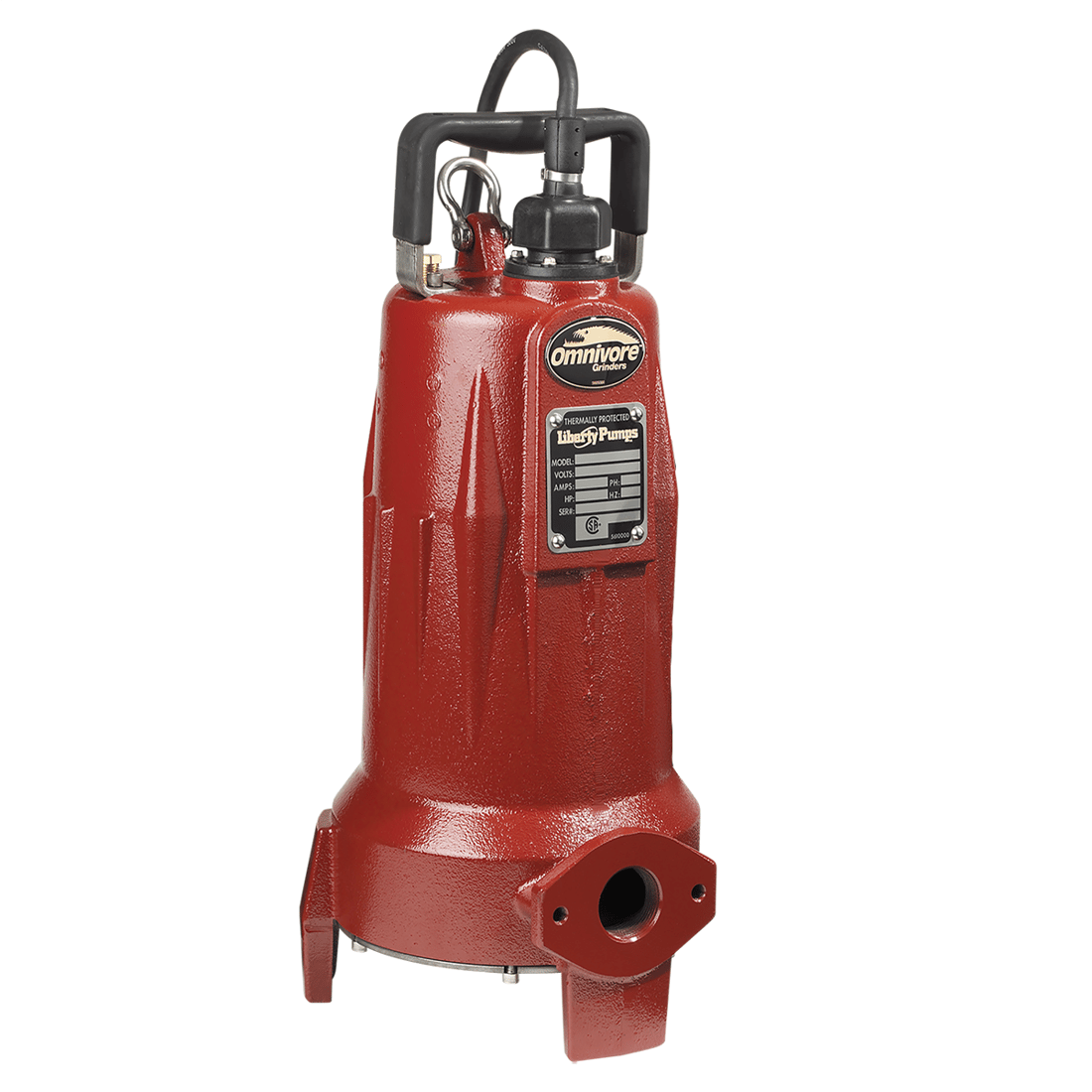

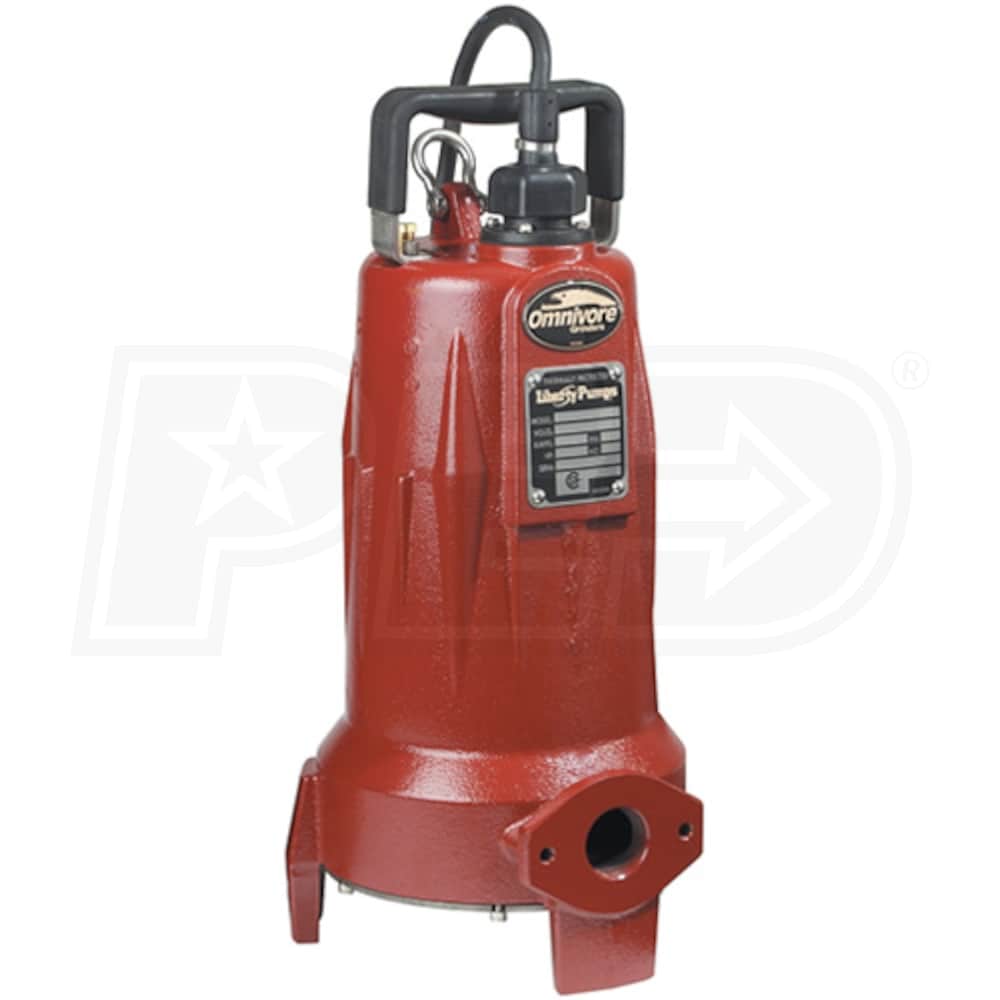

The Liberty LSG202M is a two horsepower submersible grinder pump suitable for both residential and commercial sewage applications. This pump incorporates V-Slice cutter technology made from hardened 440 stainless steel. The robust cast iron housing and stainless steel impeller ensure durability and effective operation. Designed for underwater use, this pump includes internal capacitors that remove the need for a separate control panel. A control box or float switch is necessary for automatic functionality.
- Equipped with a powerful 2 HP motor with thermal overload protection.
- Has a one and one-fourth inch horizontal discharge.
- Features a quick-disconnect power cord for easy use.
Product Highlights
The Liberty LSG202M excels in environments needing consistent sewage management, providing reliable performance with its sturdy construction.
Product Information
Standard Information
-
Brand: Liberty Pumps
-
Series: LSG200
Technical Specifications
-
MPN: LSG202M
-
Application: Commercial/Residential sewage
-
Horsepower: 2 HP
-
Voltage Rating: 208 - 230 V
-
Phase: 1
-
Full Load Amps: 15 A
-
Locked Rotor Amps: 53 A
-
Frequency: 60 Hz
-
Speed: 3450 RPM
-
Discharge Port Size: 1-1/4 Inch
-
Discharge Connection: 1-1/4 horizontal
-
Maximum Head: 110 ft
-
Maximum Flow: 50 GPM
-
Power Cord Length: 25 ft
-
Thermal Protection: Yes
-
Motor Type: Capacitor Start Class B
-
Insulation Class: Class B
-
Maximum Fluid Temperature (Intermittent): 140°F
-
Maximum Fluid Temperature (Continuous): 104°F
-
Housing Material: Cast Iron
-
Impeller Material: 316 Stainless steel
-
Rotor Shaft Material: 300 Series SS
-
Seal Type: Dual seals - Upper seal is unitized durable silicon carbide. Lower seal is Viton double-lip
-
Cutter Material: Hardened 440 stainless steel
-
Starting Circuit: Solid state starting circuit
-
Weight: 89 Pounds
-
Product Width: 9.5 Inches
-
Product Height: 19.5 Inches
-
Pump Mounting: Freestanding
-
Minimum Sump Basin Size: 18 Inch
