Product Description

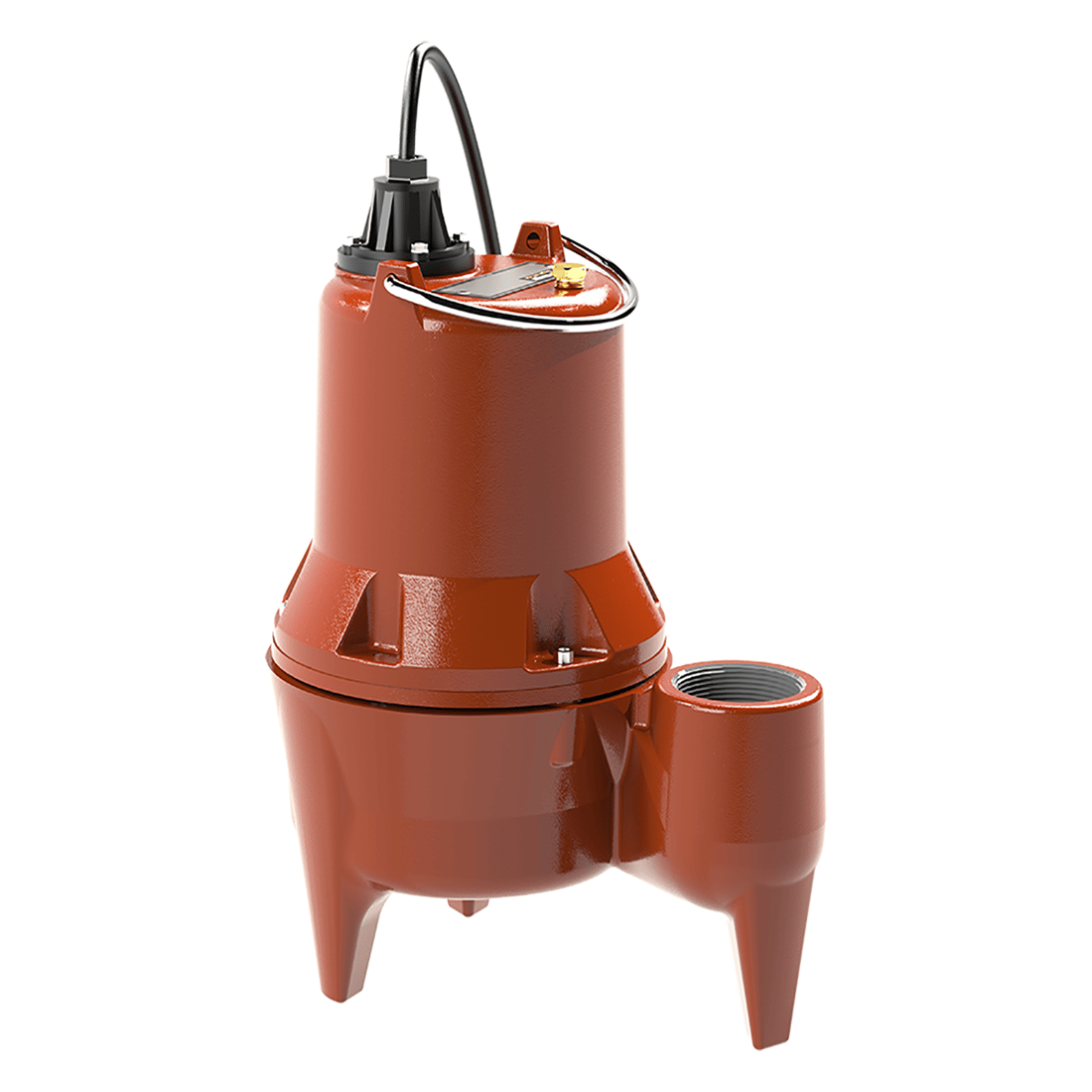

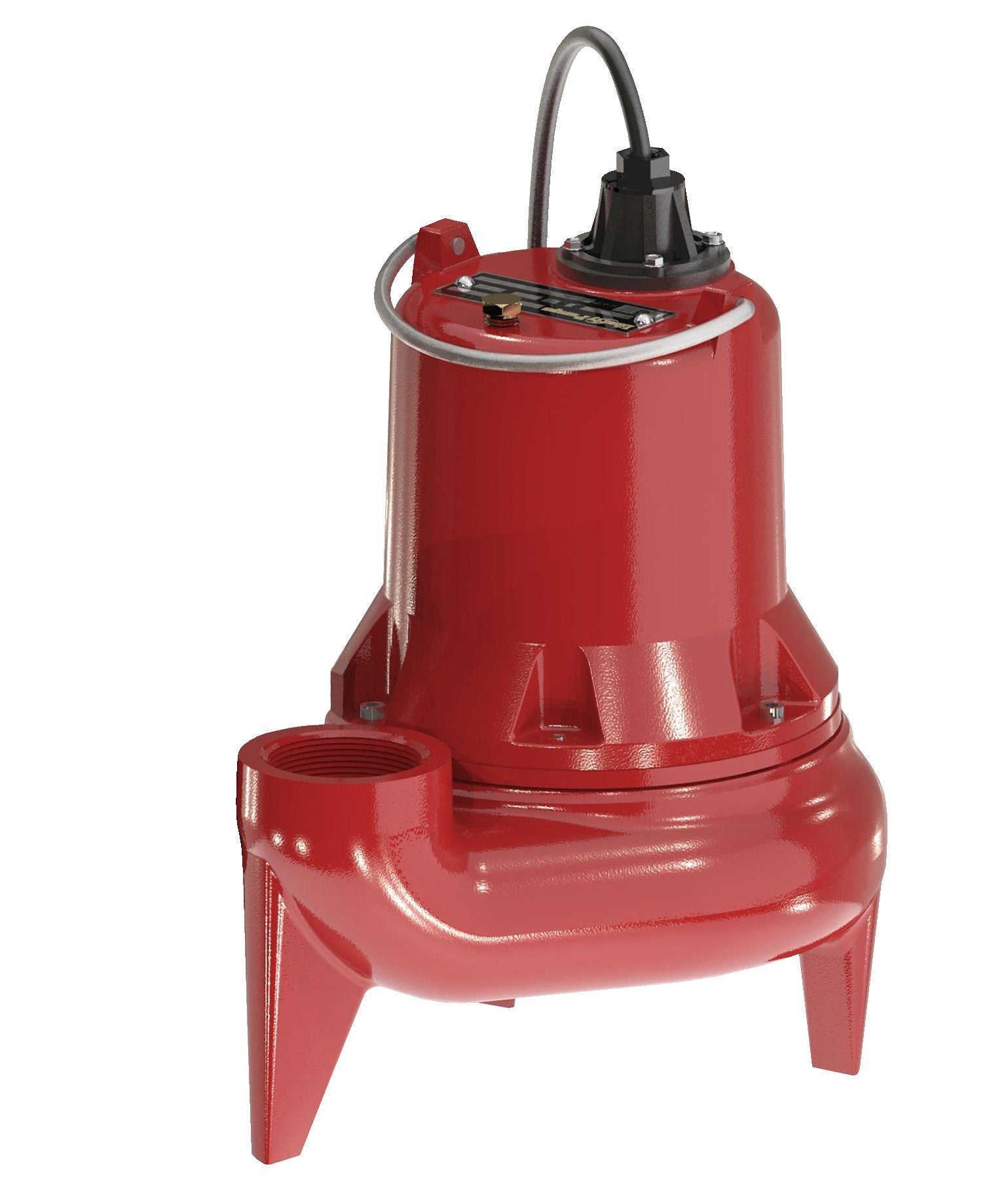

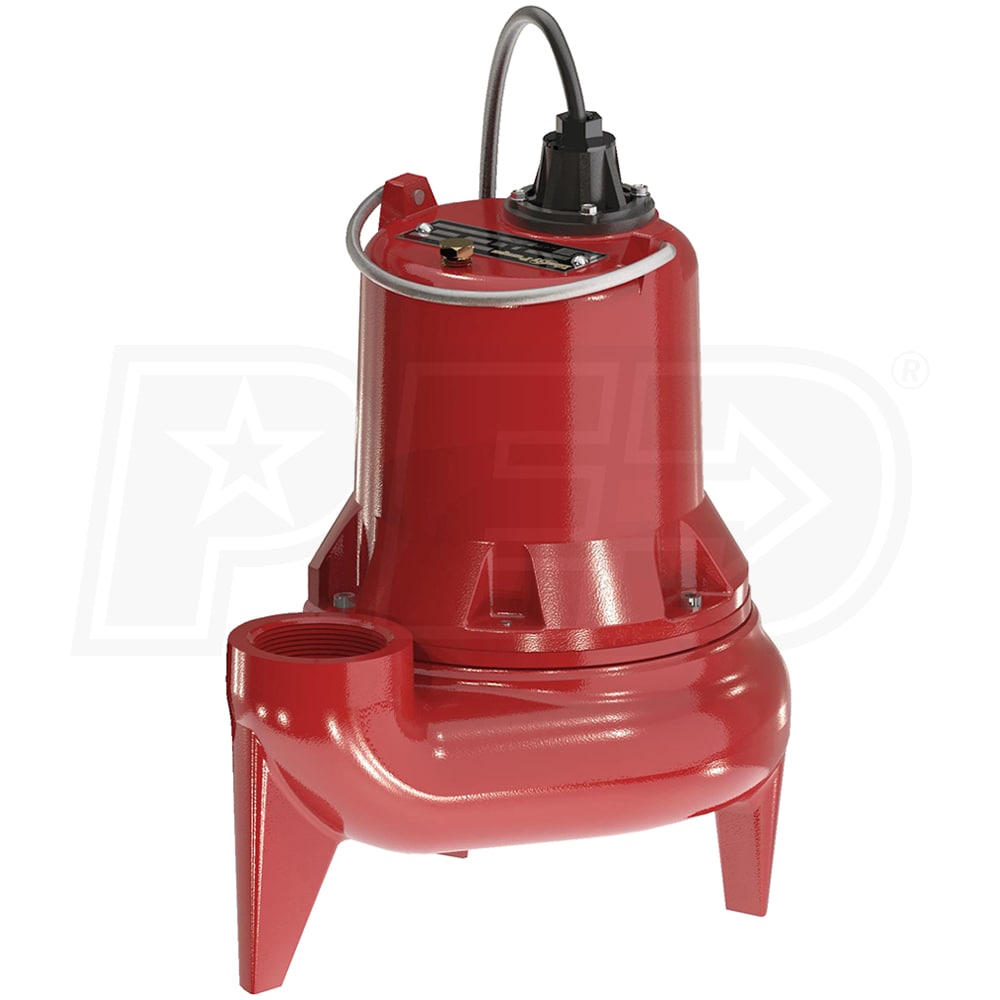

The Liberty LE51M-2 is a reliable submersible sewage pump ideal for residential and light commercial use. This pump features a 1/2 HP motor and is built with durable cast iron. It has a discharge port size of 2 FNPT and is capable of handling solids up to 2 inches in diameter.
- 1/2 HP motor for efficient performance.
- Quick-disconnect power cord for easy maintenance.
- Oil-filled motor with thermal protection for added safety.
Product Highlights
The Liberty LE51M-2 is suitable for manual operation with an external float switch required. It effectively handles sewage tasks and is designed to handle high flow rates.
Product Information
Standard Information
-
Brand: Liberty
-
Manufacturer Part Number: LE51M-2
Technical Specifications
-
Product Type: Sewage pump
-
Operation: Manual
-
Horsepower: 1/2 HP
-
Input Voltage: 115 Volts
-
Phase: 1
-
Frequency: 60 Hz
-
Speed: 1725 RPM
-
Discharge Port Size: 2 FNPT
-
Maximum Flow: 158 GPM
-
Maximum Head: 25 ft
-
Solids Handling Size: 2 inch
-
Power Cord Length: 25 ft
-
Maximum Fluid Temperature: 140°F
-
Housing Material: Cast Iron
-
Impeller Material: Plastic
-
Impeller Type: 2 vane, semi-open
-
Thermal Protection: Yes
-
Weight: 42 lbs.
-
Height: 14
-
Width: 11.75
-
Running Amps: 12
-
Starting Amps: 22.5
-
Minimum basin diameter: 18
-
Minimum basin depth: 24
