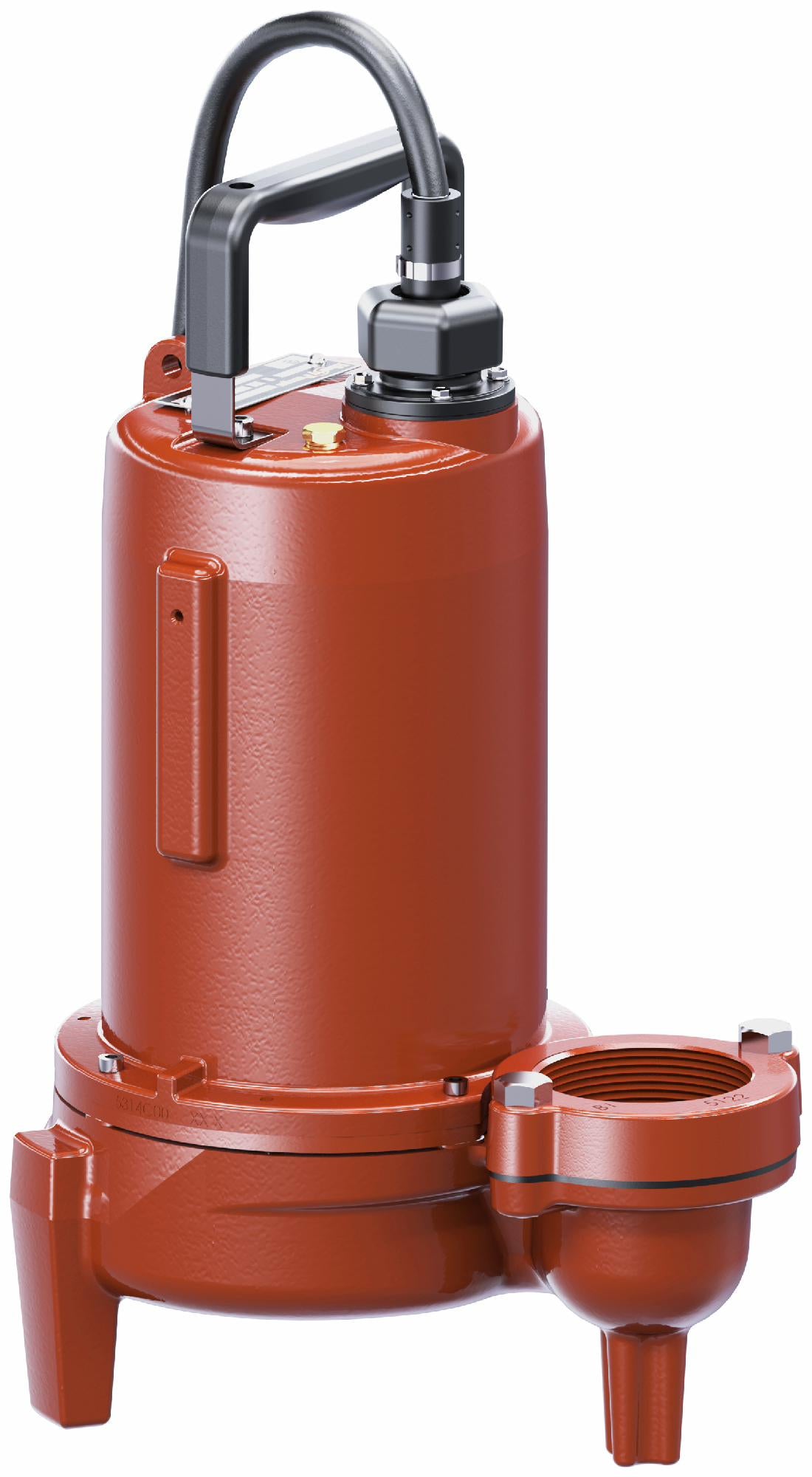

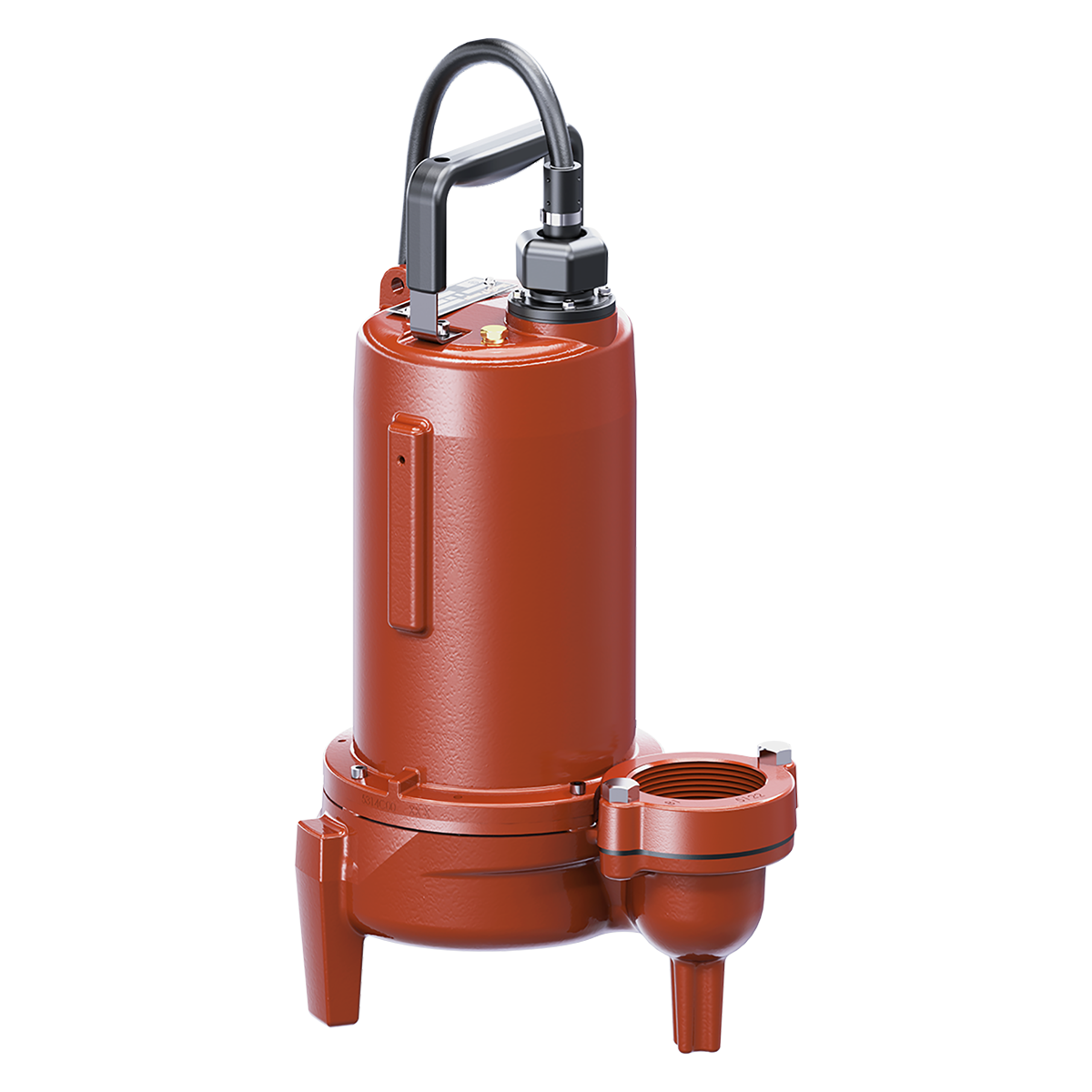

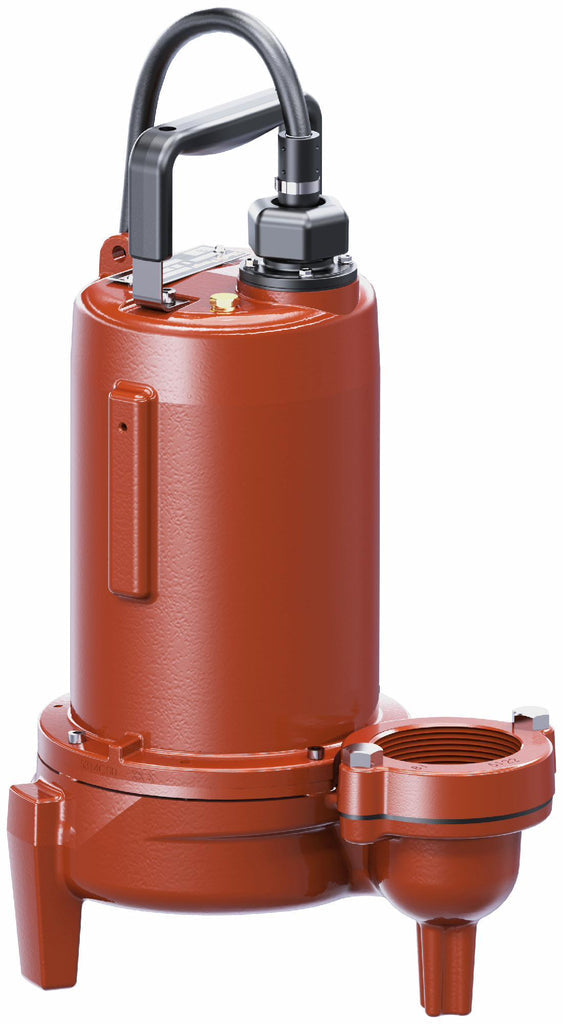

Liberty LE102M2-2 1 HP Manual Submersible Sewage Pump

Product Description

The Liberty LE102M2-2 is a manual submersible sewage pump designed for effective sewage management. This pump has a 1 HP motor and comes with a two-inch flanged discharge, making it suitable for various applications. Constructed from cast iron, it ensures durability and reliability in demanding environments. The pump features a 25-foot quick-connect power cord for easy installation.

• 1 HP motor for robust performance.
• 2-inch flanged discharge for efficient sewage handling.
• Durable cast iron housing.

Product Highlights

This pump is built to handle solid waste effectively, featuring a two-vane semi-open impeller that manages solids up to two inches. Its powerful motor and efficient design make it ideal for both residential and commercial sewage applications.

Product Information

Standard Information

• Brand: Liberty
• MPN: LE102M2-2

Technical Specifications

• Series: LE100
• Operation: Manual
• Horsepower: 1 HP
• Input Voltage: 208-230 Volts
• Phase: 1
• Frequency: 60 Hz
• Speed: 1725 RPM
• Maximum Flow: 190 GPM
• Maximum Head: 39 ft
• Maximum Solids Handling: 2 inches
• Discharge Connection: 2 flanged
• Cord Length: 25 ft
• Maximum Fluid Temperature: 140°F
• Impeller Type: 2 vane, semi-open
• Material: Cast iron housing and gray iron volute
• Weight: 64 lbs
• Dimensions: 12.5 x 12.5 x 18.9 inches
