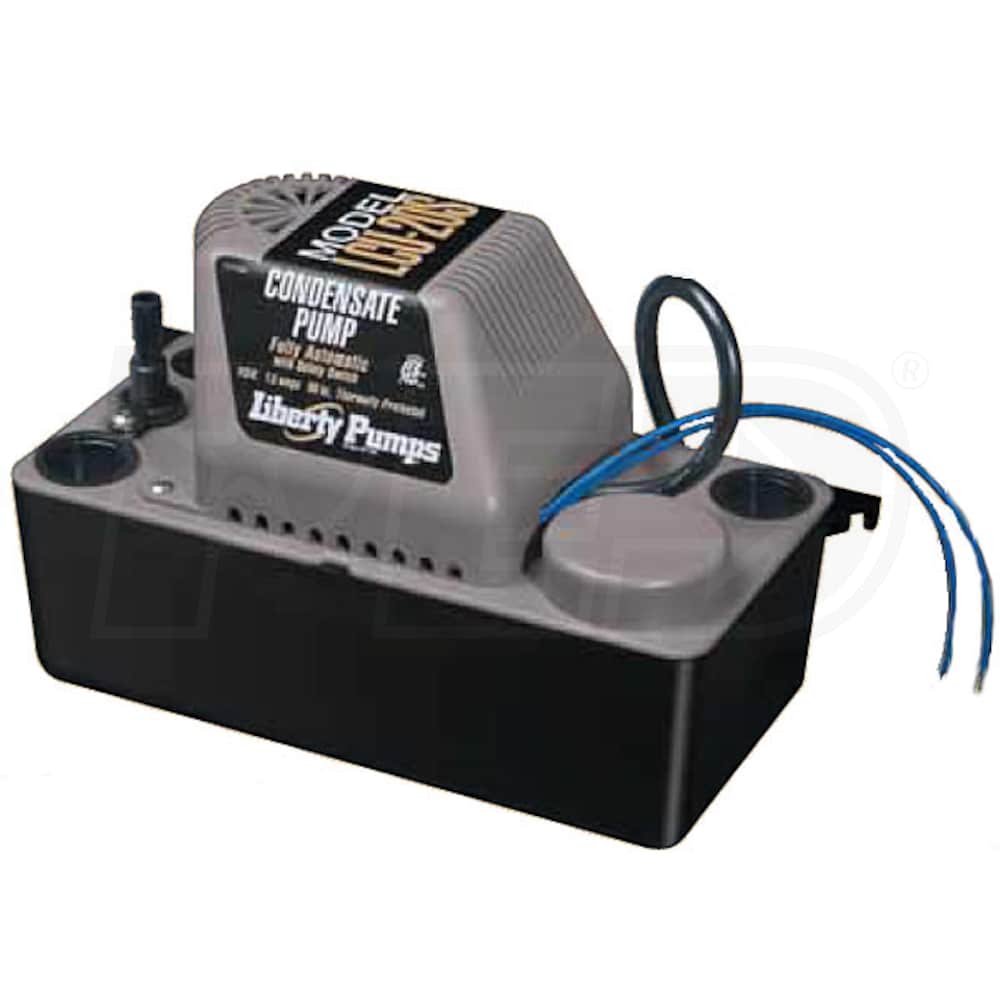

LIBERTY LCU-20S Automatic Condensate Removal Pump with Safety Switch

Product Description

The LIBERTY LCU-20S is an automatic condensate pump suitable for high-efficiency furnaces, air conditioning units, and dehumidifiers. It is designed to handle the removal of condensate effectively, ensuring that your equipment operates without overflow issues.

• Includes a built-in safety switch to prevent overflow.
• Features a durable 1/2-gallon ABS tank.
• Equipped with a thermally protected motor for reliable operation.

Product Highlights

This pump is a practical option for HVAC professionals. It provides efficient condensate drainage with a focus on safety and reliability.

Product Information

Standard Information

• Brand: Liberty
• MPN: LCU-20S

Technical Specifications

• Voltage: 115V
• Running Amps: 1.5
• Flow Rate: 1.834 gpm
• Inlet Diameter: 1-1/4 inches
• Outlet Diameter: 3/8 inches
• Self Priming: Yes
• Total Head Lift: 20 feet
• Weight: 5 pounds
• Warranty: 3 years
• Dimensions: 11.125 inches x 5 inches x 6.5 inches
• Pump Application: Furnaces and HVAC systems
• Power Source: Electric
• Discharge Connection: Barbed and threaded
• UL Listed: UL 778
