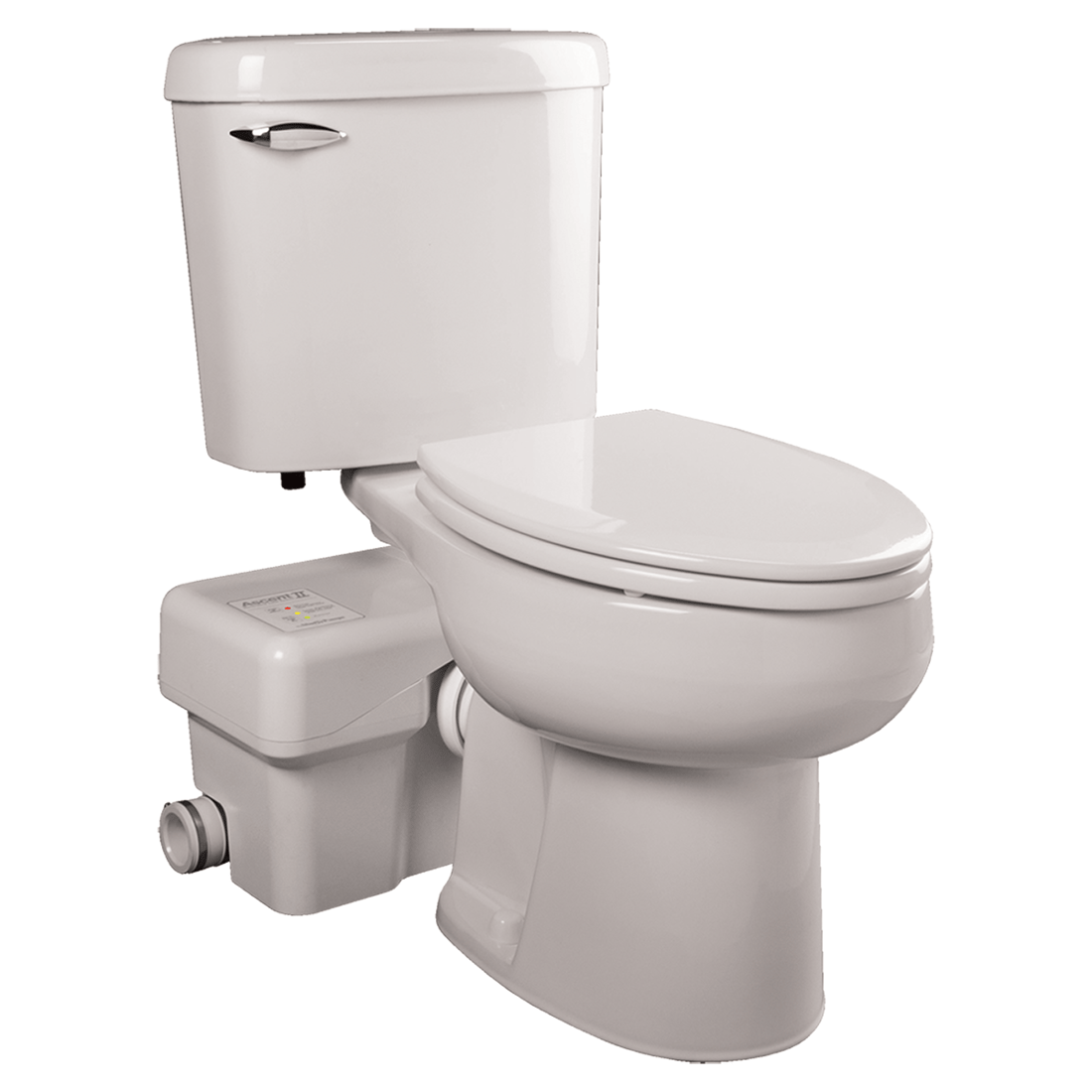

LIBERTY ASCENTII-ESW Macerating Toilet System with Elongated Bowl

Product Description

The LIBERTY ASCENTII-ESW is a macerating toilet system designed for versatile bathroom installations. It effectively pumps wastewater to heights of twenty-five feet and horizontally up to one hundred fifty feet through a one-inch discharge pipe. This product includes RazorCut technology to efficiently grind waste. The elongated bowl design meets ADA standards and is easy to clean. The system is also equipped with an integrated alarm system, LED indicators, and a touchpad for easy alarm silencing.

• Elongated toilet bowl with ADA compliance
• 1/2 HP macerator pump with RazorCut technology
• Built-in alarm with battery backup

Product Highlights

This system offers high performance for commercial and residential applications, making it an ideal choice for renovations or new installations.

Product Information

Standard Information

• Brand: LIBERTY
• MPN: ASCENTII-ESW

Technical Specifications

• Horsepower: 0.5 HP
• Voltage: 120 Volt
• Amperage: 7.9
• Flow Rate: 1.28 gallons-per-flush
• Discharge Port Size: 1 Inch
• Total Head Lift: 36 Feet
• Power Cord Length: 8 Feet
• Thermal Protection: Yes
• Check Valve Included: Yes
• Flush Type: 1.28 gpf
• Bowl Height: 17.375 inches
• Overall Height: 32.25 inches
• Overall Width: 18.25 inches
• Overall Depth: 29.675 inches
• Product Weight: 110 lbs.
• Trapway Size: 2.75 inches
• Tank Width: 18-1/4 inches
• Macerator Frequency: 60 Hz
• Consumer Warranty: 3 Years
• Commercial Warranty: 3 Years
