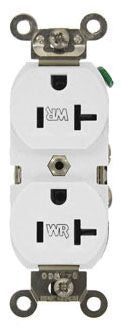

Leviton WBR20-W Straight Blade Duplex Receptacle 20A 125V NEMA 5-20R

Product Description

The Leviton WBR20-W is a straight blade duplex receptacle rated for twenty amps and one hundred twenty-five volts. This weather-resistant device features a self-grounding design. It is suitable for commercial and industrial applications. The receptacle is designed to withstand the demands of tough environments.

• Duplex outlet with weather resistance
• Back and side wired for easy installation
• NEMA 5-20R rating for safety

Product Highlights

The WBR20-W is built for durability and reliability in commercial settings. Its nylon material ensures longevity. This duplex receptacle meets various standards and is ideal for schools, hospitals, and industrial applications.

Product Information

Standard Information

• Brand: Leviton
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: WBR20-W
• Amperage Rating: 20 A
• Voltage Rating: 125 VAC
• Number of Poles: 2
• Number of Wires: 3
• NEMA Rating: 5-20R
• Material: Nylon
• Temperature Rating: -40 to +60 degrees Celsius
• Environmental Conditions: Flammability rated V-2 per UL94
