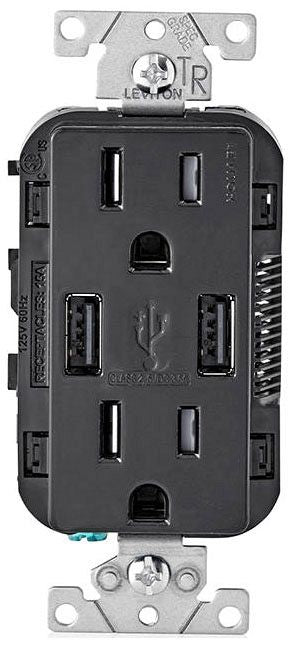

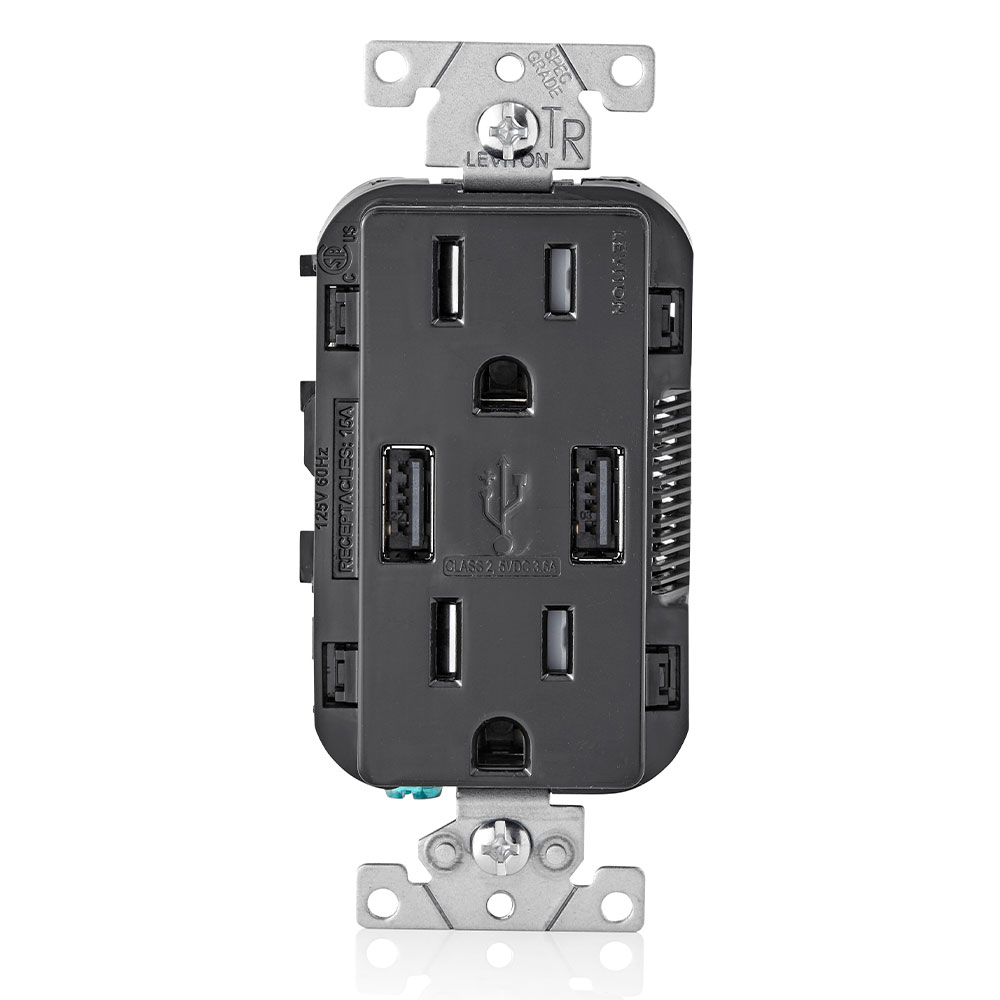

Leviton T5632-E Combination Duplex Receptacle/Outlet And USB Charger 15A 125V

Product Description

Leviton T5632-E is a combination duplex receptacle and USB charger rated for 15 amps at 125 volts. This device features both a standard receptacle and two USB charging ports, allowing for multiple devices to be charged simultaneously. The charging ports can deliver a total of 3.6 amps for efficient power distribution.

• Two vertical USB ports for efficient charging
• Compatible with USB 2.0 devices
• Tamper-resistant design for safety

Product Highlights

This receptacle is ideal for use in various applications, including residential kitchens, offices, and commercial spaces like hotels and restaurants. The smart chip technology recognizes and adjusts to the specific charging needs of devices, ensuring optimal power delivery.

Product Information

Standard Information

• Manufacturer: Leviton
• MPN: T5632-E

Technical Specifications

• Electrical Ratings: 15 A, 125 VAC, 0.5 hp
• USB Rating: 3.6 A at 5 VDC
• Environmental Conditions: -10 to 40 degrees Celsius operating temperature
• Material: Thermoplastic
• Wiring Method: Back/Side Wired
• Poles: 2
• Wires: 3
