Product Description

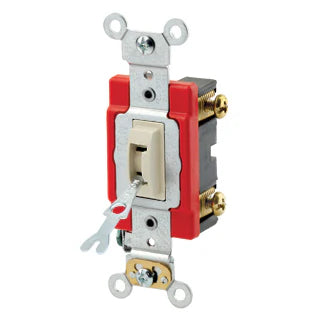

The Leviton 1221-2IL is a single-pole locking toggle switch. It operates at a voltage of 120/277 VAC and has an amperage rating of 20 Amps. This switch is designed for heavy-duty use in commercial and industrial applications. Its thermoplastic body offers durability, while the polycarbonate toggle ensures reliability. This switch features a key-operated actuator and is self-grounding.
- Durable thermoplastic and polycarbonate construction
- Rated for 20 Amps at 120/277 VAC
- Designed for commercial and industrial applications
Product Highlights
The Leviton 1221-2IL is built for strength and can endure extreme conditions. It meets various standards, including RoHS compliance and ANSI requirements.
Product Information
Standard Information
-
Brand: Leviton
-
Catalog Number: 1221-2IL
Technical Specifications
-
Voltage Rating: 120/277 VAC
-
Amperage Rating: 20 A
-
Power Rating: 1/2 hp
-
Dimensions: 46 H x 1.31 W x 13 D inches
-
Operating Temperature: -40 to 60 degrees C
-
Operating Cycles: 50000 cycles
-
Color: Ivory
-
Material: Thermoplastic
-
Contact Configuration: SP
