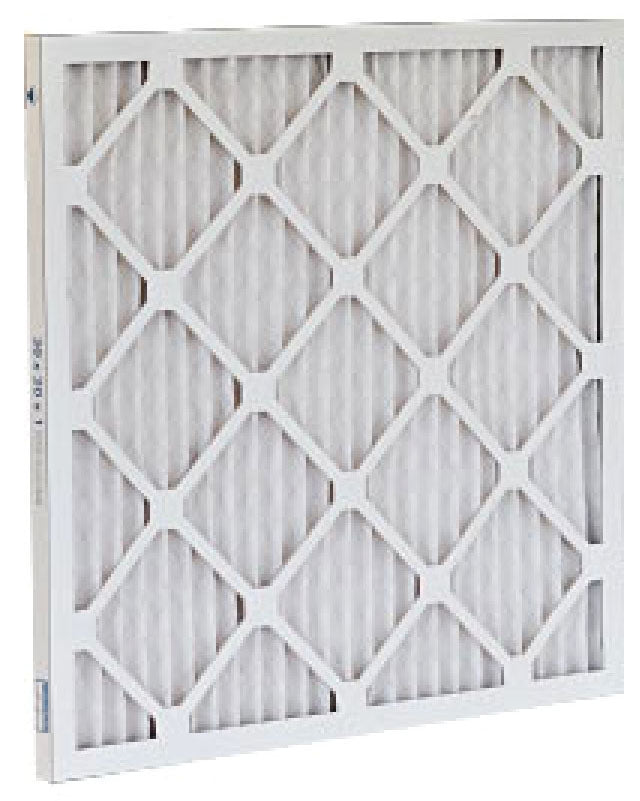

LAB 608_20X30X2 Filtration Lab Pleated Air Filter

Product Description

The LAB 608_20X30X2 is a pleated air filter suitable for commercial, residential, and industrial use. This filter employs synthetic pleated media to achieve 100% mechanical filtration. It helps to enhance indoor air quality while prolonging the lifespan of the filter.

• Designed for multiple applications including commercial and industrial
• MERV value of 8 for effective filtration
• Compliant with ASHRAE 52.2, UL, and CUL standards

Product Highlights

The LAB 608_20X30X2 is built with a die-cut beverage board frame for added durability and is engineered to provide cost-effective efficiency in indoor air filtration.

Product Information

Standard Information

• Brand Name: LAB
• MPN: 608_20X30X2

Technical Specifications

• Media: Synthetic
• Media Area: 12.03 Square Foot
• Number Of Pleats: 8
• Overall Depth: 1.75 Inch
• Overall Height: 29.5 Inch
• Overall Width: 19.5 Inch
• Resistance: 0.19 Inch WG at 300 PSI, 0.32 Inch WG at 500 PSI
• MERV Value: 8
• Frame Detail: Die-Cut Beverage Board
• Nominal Size: 20 Inch Width x 2 Inch Depth x 30 Inch Height
• Efficiency: 70 Percent
• Flow Rate: 1250 CFM at 300 PSI, 2080 CFM at 500 PSI
• Applicable Standard: ASHRAE 52.2, UL, CUL
• Application: Commercial, Residential, Industrial
