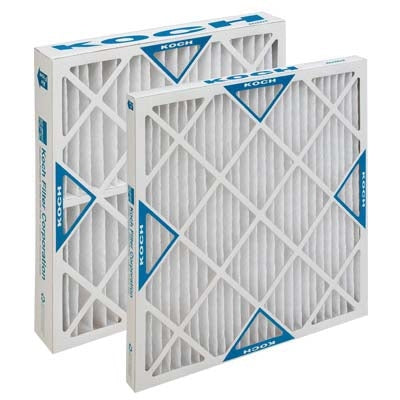

Koch Filter 102-700-001 Pleated Panel Filter 10 x 20 x 1 in

Product Description

The Koch Filter 102-700-001 is a pleated panel filter designed for HVAC systems. It measures ten inches by twenty inches by one inch. This filter features a medium-efficiency MERV 8 design, optimizing air quality while reducing pressure drop.

• High dust holding capacity
• Low-resistance to airflow
• Suitable for varied applications, including hospitals and commercial buildings

Product Highlights

The Koch Multi-Pleat XL8-SC filter is built to provide reliable performance and efficiency in air filtration.

Product Information

Standard Information

• Brand: Koch Filter Corporation
• Part Number: AF10201P40

Technical Specifications

• Actual Size: Nine and one-half inches wide by nineteen and one-half inches high by three-quarters of an inch deep
• Air Flow Capacity: Four hundred twenty-five cubic feet per minute
• Depth: One inch
• Filter Efficiency: Thirty to thirty-five percent
• Frame Type: Double wall, moisture-resistant beverage board
• Height: Twenty inches
• Item Name: Pleated Panel Filter
• MERV: 8
• Media Area: Two point three square feet
• Media Type: Fiber
• Rated Velocity: Three hundred feet per minute
• Resistance: Zero point two six inches water gauge initial, one inch water gauge final
• Sub Brand: Multi-Pleat XL8-SC
• Temperature Rating: Two hundred degrees Fahrenheit
• Type: Extended Surface, Standard Capacity
• Width: Ten inches
