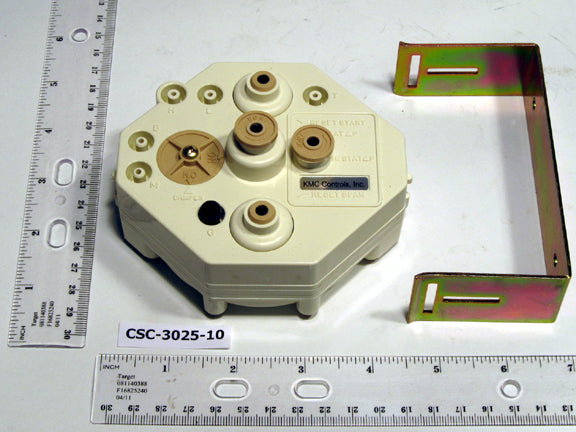

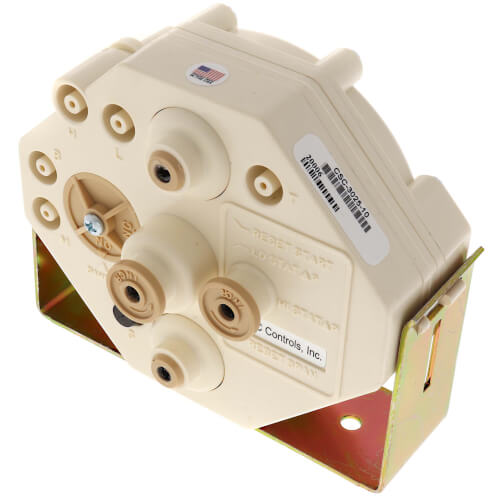

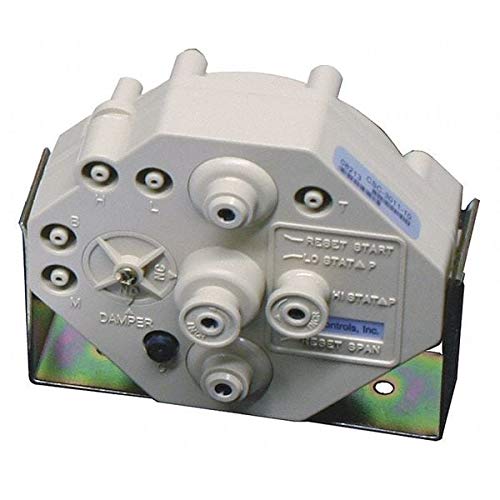

KMC CONTROLS CSC-3025-10 Reset Volume Controller 0-2 inches High Flow Universal

Product Description

The KMC Controls CSC-3025-10 is a versatile reset volume controller, perfect for applications that require reliable air flow control in ventilation systems. It functions seamlessly within a range of zero to two inches and kicks off at eight psig for high flow applications. This controller is designed for both new installs and as a replacement in heating and cooling systems.

• Ideal for VAV terminal units, both normally open or normally closed
• Features separate adjustment for minimum and maximum airflow
• Universal compatibility ensuring easy integration with various systems

Product Highlights

This controller adjusts between minimum and maximum setpoints, controlled externally by a room thermostat. It offers flexibility with direct or reverse acting setups.

Product Information

Standard Information

• Brand: KMC Controls
• MPN: CSC-3025-10

Technical Specifications

• Control Type: DA/RA
• Air Consumption: 46.1 SCIM at 20 psig
• Main Air Pressure (PSIG): 15 to 30 psig
• Mounting: Includes mounting bracket
• Connection: Push on fittings for 1/4 in OD tubing
• Output Capability: 0 to supply pressure
• Operating Temperature: 40 to 120 degrees Fahrenheit
• Reset Pressure Band: 0 to 10 psig
