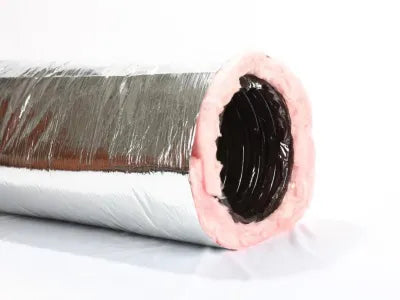

JPL MHP25R8B18 Silver Flex Duct R8 18 in x 25 ft Replacement MPN

Product Description

The JPL MHP25R8B18 is an eighteen inch by twenty-five feet flexible duct. It is constructed with a spring steel wire helix, providing strength and flexibility. An airtight inner core made of a two-ply material encloses the duct. The insulation value of R8 ensures effective thermal performance.

• Applications: Indoor use only
• Flow rate: 5000 feet per minute
• Metalized polyester barrier for enhanced durability

Product Highlights

This duct is suitable for various HVAC applications. It meets stringent industry standards for performance and safety.

Product Information

Standard Information

• Brand: JPL
• Manufacturer: JP Lamborn

Technical Specifications

• Length: 25 ft
• Inside Diameter: 18 in
• Pressure Rating: -1/2 to 4 in-WG
• Temperature Rating: 0 to 200 deg F
• Vapor Transmission: 0.01 perm
• Material: Metalized Polyester
• Flow Rate: 5000 fpm
• Insulation Value: R8
• Certifications: ASTM E96A, GreenGuard Gold Certification, IMC Approved, NFPA 90A/90B, UL 181/MH11637, UMC Approved
