JPL MHP25R6B12 Silver Flex Duct R6 12 in x 25 ft R

Product Description

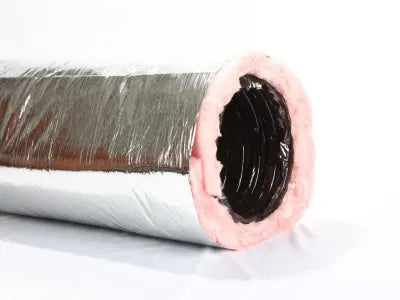

The JPL MHP25R6B12 is a flexible duct designed for air distribution. This product measures twelve inches in inside diameter and twenty-five feet in length. The construction includes a spring steel wire helix and a two-ply airtight inner core. R6 fiberglass insulation provides efficiency, while a metalized, reinforced vapor barrier surrounds the duct.

• Ideal for indoor applications
• Features a compression ratio of 12:1 or less
• Maintains air-tight integrity

Product Highlights

This duct is suitable for various HVAC applications, effectively managing airflow in heating and cooling systems.

Product Information

Standard Information

• Brand: JPL
• Manufacturer: JP Lamborn

Technical Specifications

• Type: Insulated Class 1
• Inside Diameter: 12 in
• Length: 25 ft
• Flow Rate: 5000 fpm
• Insulation Value: R6
• Temperature Rating: 0 to 200 deg F
• Vapor Transmission: 0.01 perm
• Pressure Rating: -1/2 to 6 in-WG
• Material: Metalized Polyester
• Certifications: ASTM E96A, GreenGuard Gold Certification, IMC Approved, NFPA 90A/90B, UL 181/MH11637, UMC Approved
