Product Description

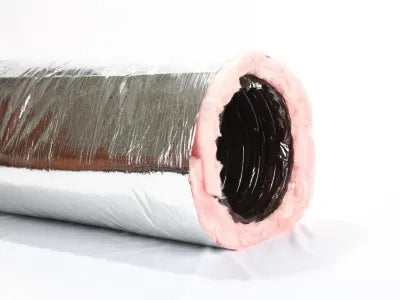

The JPL MHP25R6B-06 is an insulated flexible air duct with a six inch inside diameter and a length of twenty-five feet. This duct features a spring steel wire helix that is wrapped in a two-ply airtight inner core. The fiberglass insulation offering an R6 rating surrounds the core, while a metalized, reinforced vapor barrier encloses the entire duct.
- Constructed with a spring steel wire helix for durability.
- Fiberglass insulation provides a high R-value for energy efficiency.
- Metalized vapor barrier ensures minimal air leakage.
Product Highlights
This product is ideal for indoor applications where air distribution is required. It is certified for various quality standards and is available with guaranteed lengths.
Product Information
Standard Information
-
Brand: JPL
-
Manufacturer: JP Lamborn
Technical Specifications
-
Inside Diameter: 6 inches
-
Length: 25 feet
-
Flow Rate: 5000 fpm
-
Insulation Value: R6
-
Material: Fiberglass and metalized reinforced polyester
-
Pressure Rating: -1 to 6 in-WG
-
Temperature Rating: -20 to 140 deg F
-
Vapor Transmission: 0.01 perm
