Jomar 210-605 CPVC Copper Tube Size Solvent Connection 150 WOG

Product Description

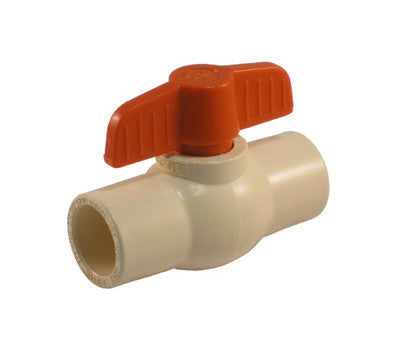

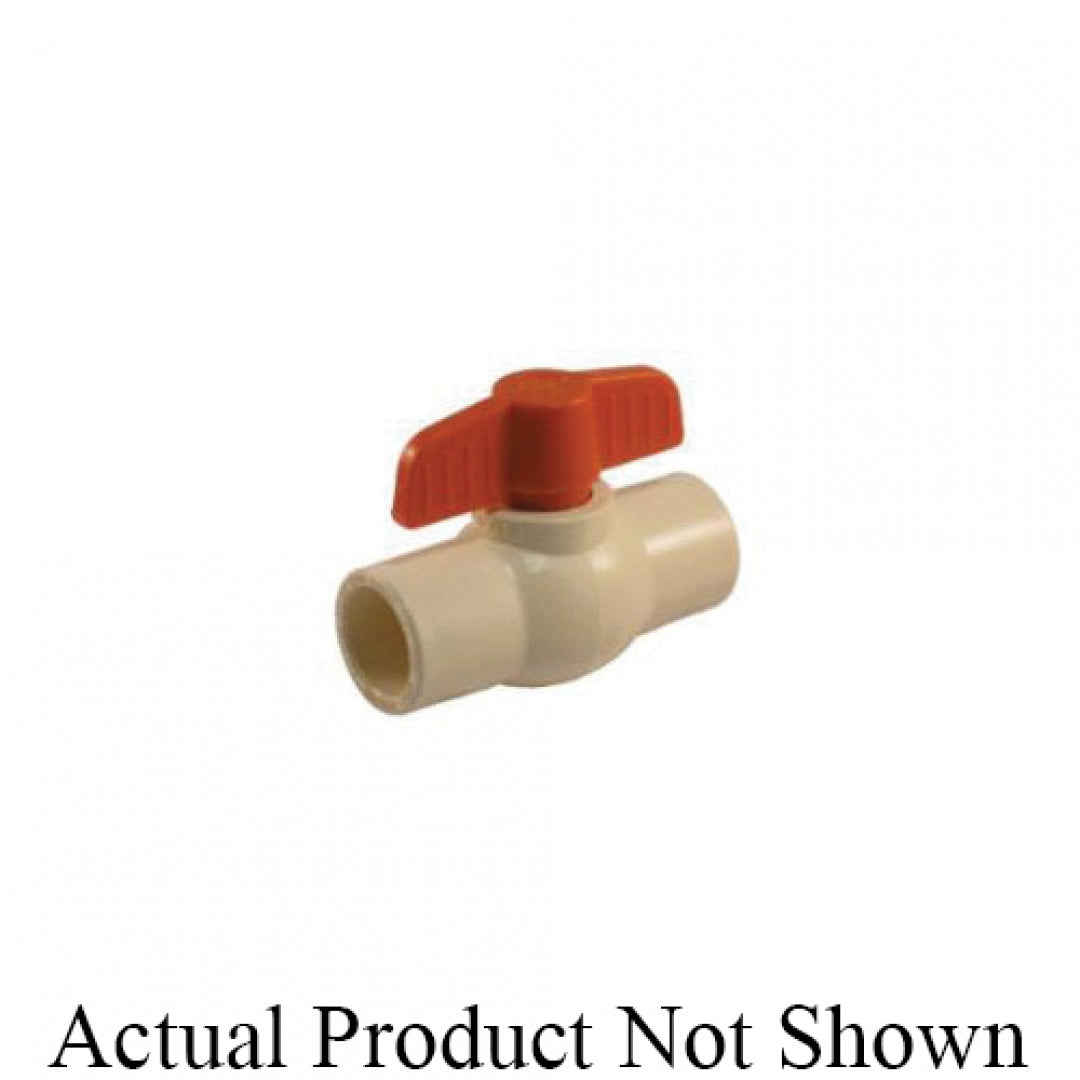

The Jomar 210-605 ball valve is designed with CPVC material and features a copper tube size with solvent connections. It operates at 150 psi WOG and includes large port functionality. This valve is suitable for hot and cold water systems and is easy to install. The CPVC body, ball, and stem, along with the PTFE seat trim and EPDM O-ring, make it a reliable choice for various applications.

• 1 inch nominal size
• 150 psi WOG
• EPDM O-ring

Product Highlights

This CPVC thermoplastic valve provides solvent ends and a quarter-turn operation, making it ideal for various piping and fitting applications. Its construction ensures reliability and ease of use in both hot and cold water systems.

Product Information

Standard Information

• Manufacturer: Jomar
• Model Number: 210-605

Technical Specifications

• Ball Material: CPVC
• Body Material: CPVC
• End Style: Solvent
• Inlet to Outlet Length: 3.74 inches
• Nominal Size: 1 inch
• Port Type: Large
• Pressure Rating: 150 psi WOG
• Softgoods Material: EPDM
• Temperature Rating: 73 degrees Fahrenheit
• Trim Material: CPVC Stem and PTFE Seat
