JOMAR 100-707 Full Port, 2 Piece, Threaded Connection, 600 WOG

Product Description

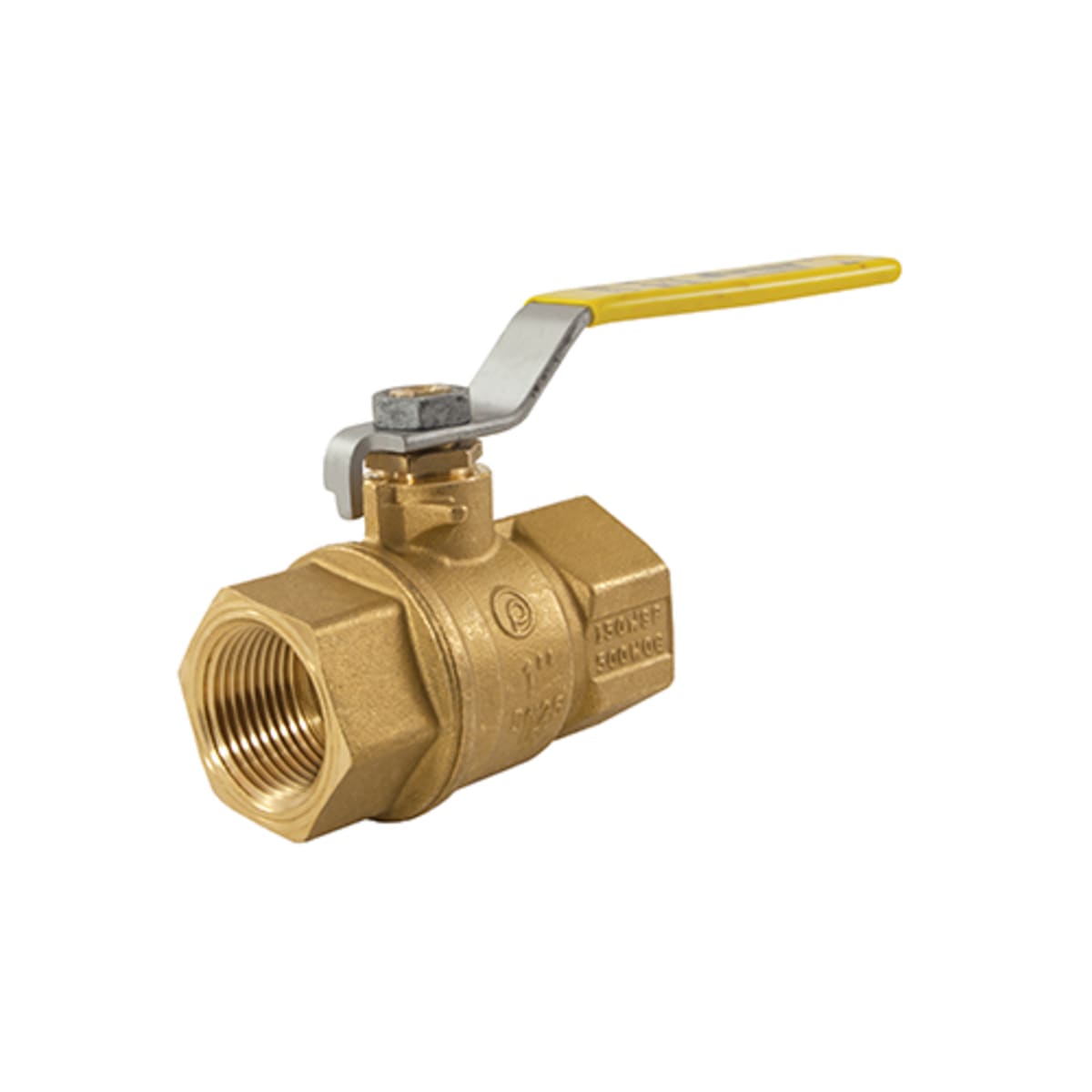

The JOMAR 100-707 is a full port ball valve designed for a variety of piping applications. It features a two-piece construction and a threaded connection with a pressure rating of six hundred WOG. The valve has a nominal size of one and a half inches with female NPT ends, making it suitable for standard plumbing systems.

• Full port design allows for maximum flow.
• Constructed with TEA coated brass for durability.
• Leak-proof stem with a lifetime warranty.

Product Highlights

This ball valve is ideal for applications requiring reliable performance and easy installation. Its blow-out proof stem and triple sealing design prevent leaks and ensure safety.

Product Information

Standard Information

• Brand: JOMAR
• MPN: 100-707

Technical Specifications

• Ball Material: TEA Coated Brass
• Body Material: Brass
• Pressure Rating: 500 psi WOG
• Nominal Size: 1-1/2 inches
• End Style: FNPT
• Inlet to Outlet Length: 4.16 inches
• Top to Inlet Center: 3.22 inches
• Softgoods Material: FKM/Hostaflon TFM
