Product Description

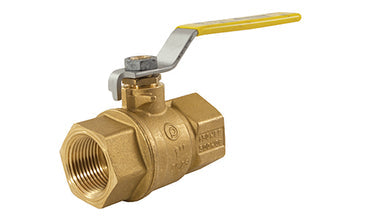

The Jomar 100-706 is a full port, two-piece ball valve designed for threaded connections. It can handle a pressure rating of six hundred WOG (Water, Oil, and Gas). This valve features a brass body and a TEA coated brass ball, ensuring durability and resistance to wear. The valve measures one and a quarter inches nominal size, making it suitable for a variety of plumbing applications.
- Threaded connection for easy installation
- Rated for six hundred WOG
- Durable brass construction
Product Highlights
This ball valve is well-suited for water and gas piping systems. It is designed to provide reliable performance in high-pressure environments.
Product Information
Standard Information
-
Manufacturer: Jomar
-
Model Number: 100-706
Technical Specifications
-
Nominal Size: 1-1/4 in
-
Pressure Rating: 500 psi WOG
-
Connection Type: NPT
-
Ball Material: TEA Coated Brass
-
Top to Inlet Center: 2.59 in
-
Inlet to Outlet Length: 3.8 in
-
Trim Material: Brass Stem and Hostaflon TFM 1600 Seat
-
Standards/Approval: ANSI B1.20.1, CSA Certified, FM Approved, MSS SP-110
