Product Description

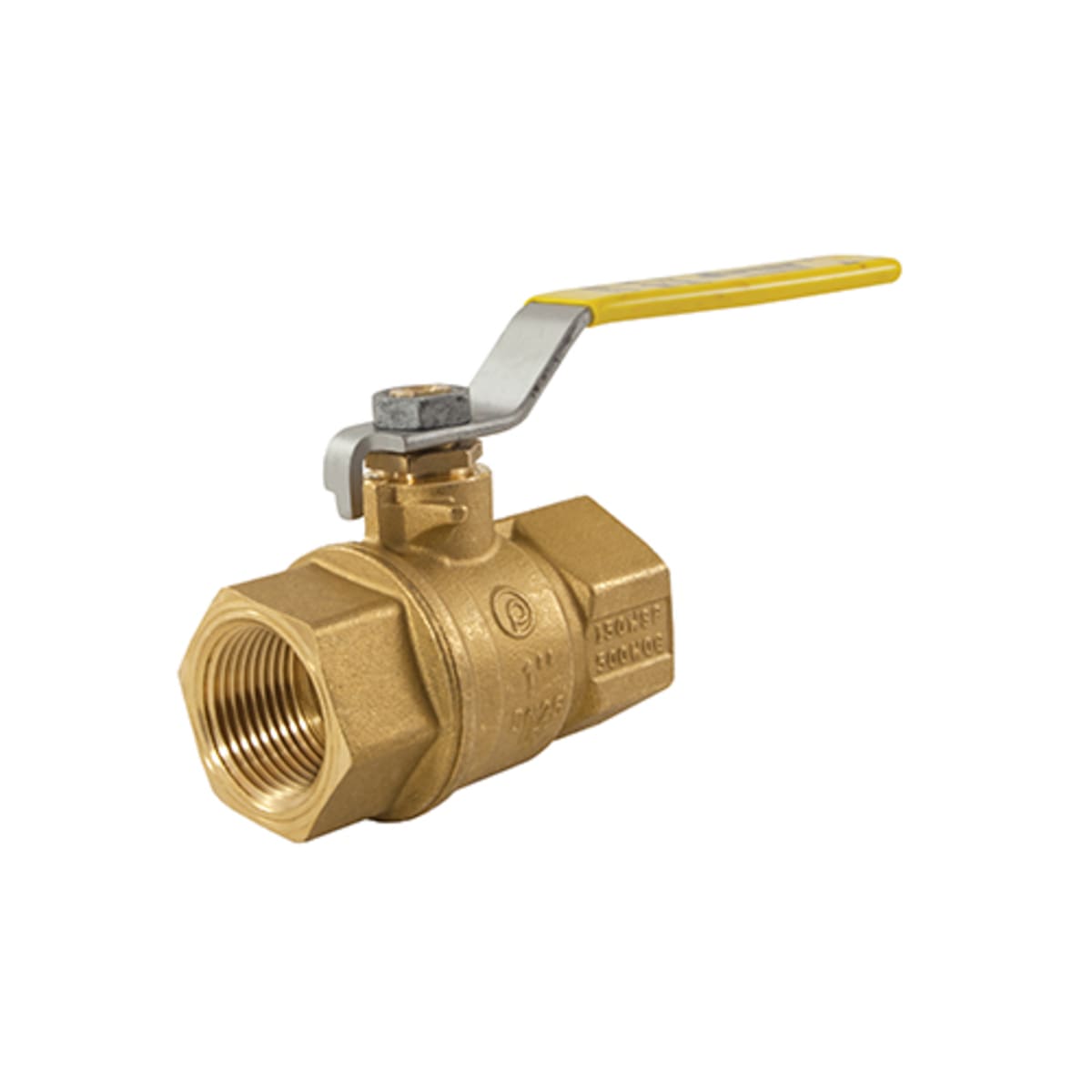

The JOMAR 100-703 is a 1/2 inch nominal, 2-piece ball valve designed for threaded connections rated at 600 psi WOG. This valve features a full port design for improved flow and a TEA coated brass ball for enhanced durability. It is suitable for various application scenarios including plumbing and heating systems, where reliability and performance are essential.
- Blow-out proof stem design
- Triple sealing stem with two FKM O-rings and PTFE seal
- Leak-proof with a lifetime warranty on the stem
Product Highlights
This valve maintains high performance in a range of environments, ensuring secure operation with minimal maintenance.
Product Information
Standard Information
-
Brand: JOMAR
-
MPN: 100-703
Technical Specifications
-
Ball Material: TEA Coated Brass
-
Body Material: Brass
-
Nominal Size: 1/2 inches
-
End Style: NPT
-
Port Type: Full
-
Pressure Rating: 600 psi WOG
-
Inlet to Outlet Length: 2.45 inches
-
Top to Inlet Center: 1.53 inches
-
Softgoods Material: FKM/Hostaflon TFM
-
Trim Material: Brass Stem and Hostaflon TFM 1600 Seat
-
Standards/Approval: ANSI B1.20.1, CSA Certified, FM Approved, MSS SP-110
