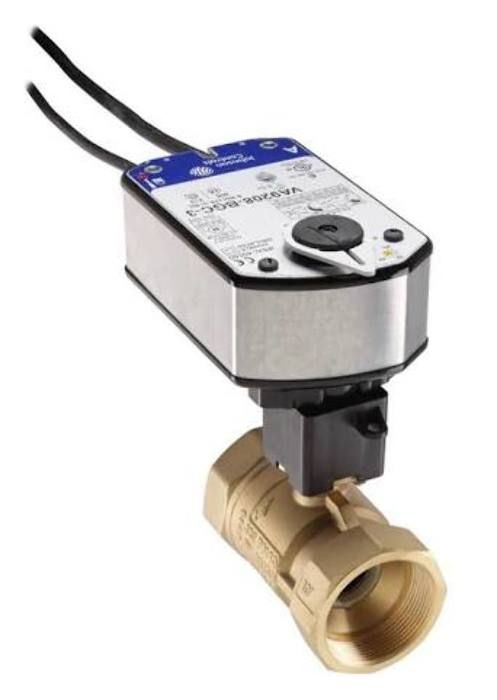

Johnson Controls VG1245FSH928AGA Ball Valve Assembly, 2 Way, 2 in. Replacement MPN

Product Description

The Johnson Controls VG1245FSH928AGA is a two-way ball valve assembly designed to provide reliable control in HVAC applications. This valve is known for its maintenance-free design and durability.

• 46.8 Cv flow capacity
• Forged brass body with stainless steel components
• Direct mount electric actuator with 70 lb-in spring return

Product Highlights

This valve operates effectively under various load conditions and is suitable for a range of heating and cooling applications, including hot water, chilled water, and steam.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: VG1245FSH928AGA

Technical Specifications

• Housing: NEMA 2, IP54
• Service: Hot Water, Chilled Water, 50/50 Glycol Solution, 15 psig Saturated Steam
• Power Consumption: 7.9 VA Running, 5.5 VA Holding
• Close-Off Pressure: 200 psig
• Flow Characteristic: Equal Percentage
• Operating Conditions: -40 F to 140 F
• Electrical Connection: 120 in. 19 AWG Plenum Cable with Integral 3/8 in. FMC Connectors
