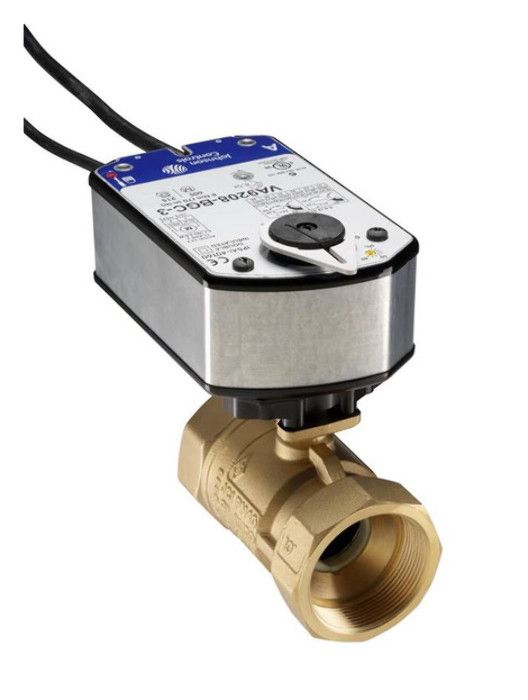

Johnson Controls VG1245DN928AGA Ball Valve Assembly, 2 Way, 1-1/4 in.

Product Description

The Johnson Controls VG1245DN928AGA is a two-way ball valve assembly designed for hydraulic control in HVAC systems. This valve features a one and one-quarter inch size and is suited for applications involving hot water, chilled water, and glycol solutions.

• Maintenance-free design
• High rangeability of 500:1 for accurate control
• Up to 200,000 full stroke cycles durability

Product Highlights

The ball valve is direct mounted with an electric actuator and is designed for efficient operation, even in challenging water conditions.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: VG1245DN+928AGA

Technical Specifications

• Housing: NEMA 2, IP54
• Service: Hot water, chilled water, 50/50 glycol solution, and saturated steam
• Power Consumption: 7.9 VA running, 5.5 VA holding
• Close-Off Pressure: 200 psig
• Flow Characteristic: Equal percentage
• Operating Conditions: -40 F to 140 F
• Electrical Connection: 120 in. 19 AWG plenum cable with connectors
