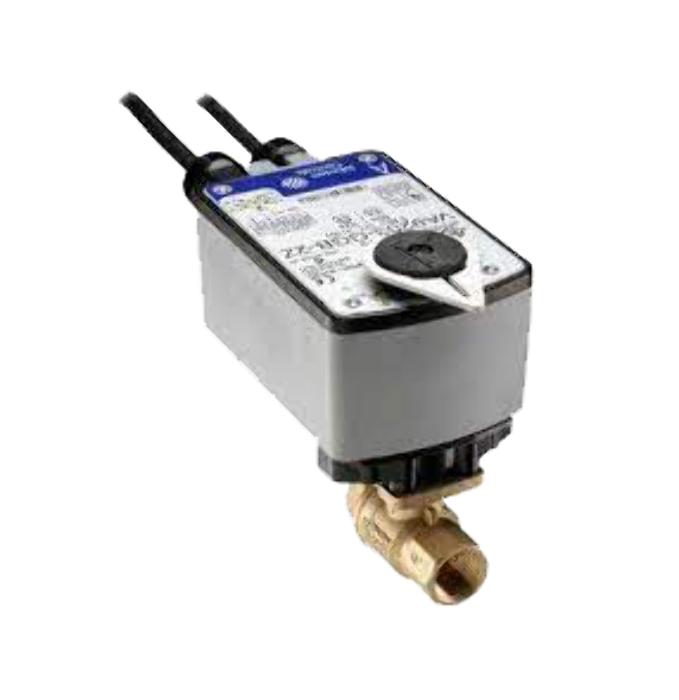

Johnson Controls VG1245CL+943AGA Ball Valve Assembly, 2 Way, 1 in.

Product Description

The Johnson Controls VG1245CL+943AGA is a two-way ball valve assembly designed to meet HVAC needs efficiently. This valve features a one-inch size and offers reliable performance in various heating and cooling applications.

• Maintenance-free design
• High stroke cycle durability
• Versatile service for hot water and chilled water

Product Highlights

This valve assembly provides precise control and high reliability, making it suitable for demanding HVAC systems.

Product Information

Standard Information

• Brand: Johnson Controls
• MasterSKU: 8320341883898

Technical Specifications

• Power Consumption: 5.1 VA Running, 2.8 VA Holding
• Close-Off Pressure: 200 psig
• Flow Characteristic: Equal Percentage
• Operating Conditions: -22 F To 140 F (-30 C To 60 C)
• Electrical Connections: 120 in. 19 AWG Plenum Cable With Integral 3/8 in. FMC Connectors
• Service: Hot Water, Chilled Water, 50/50 Glycol Solution, And 15 psig Saturated Steam For HVAC Systems
• Housing: NEMA 2, IP54
• Flow Rate: 7.4 Cv
