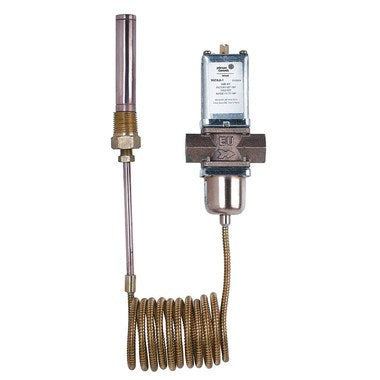

Johnson Controls V47AC-8C Penn V47 Series Temperature Actuated Modulating Valve, 3/4 Pipe Size, 75 to 135°F Heating, 11/16 x 10 Bulb Size, 0.062 Orifice Diameter

Product Description

The Johnson Controls V47AC-8C Penn V47 Series is a temperature actuated modulating valve designed to regulate the flow of water or glycol. This valve maintains the desired temperature effectively and functions efficiently with various temperature ranges for each valve size. The valve opens on temperature increase and features a removable bypass plug for added flexibility.

• No close fitting sliding parts in water passages
• Range spring does not come in contact with cooling water
• Easy manual flushing if required

Product Highlights

This valve is designed to minimize chatter and water hammer, ensuring smooth operation. It is versatile for HVAC systems, particularly effective for temperature regulation in heating systems. The Johnson Controls V47AC-8C is reliable and durable for professional use.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: V47AC-8C

Technical Specifications

• Pipe Size: 3/4 inches
• Temperature Range: 75 to 135°F Heating
• Bulb Size: 11/16 x 10 inches
• Orifice Diameter: 0.062 inches
• Product Dimensions: 23.1 x 3.6 x 4.2 inches
• Weight: 4 pounds
• Country of Origin: United States
